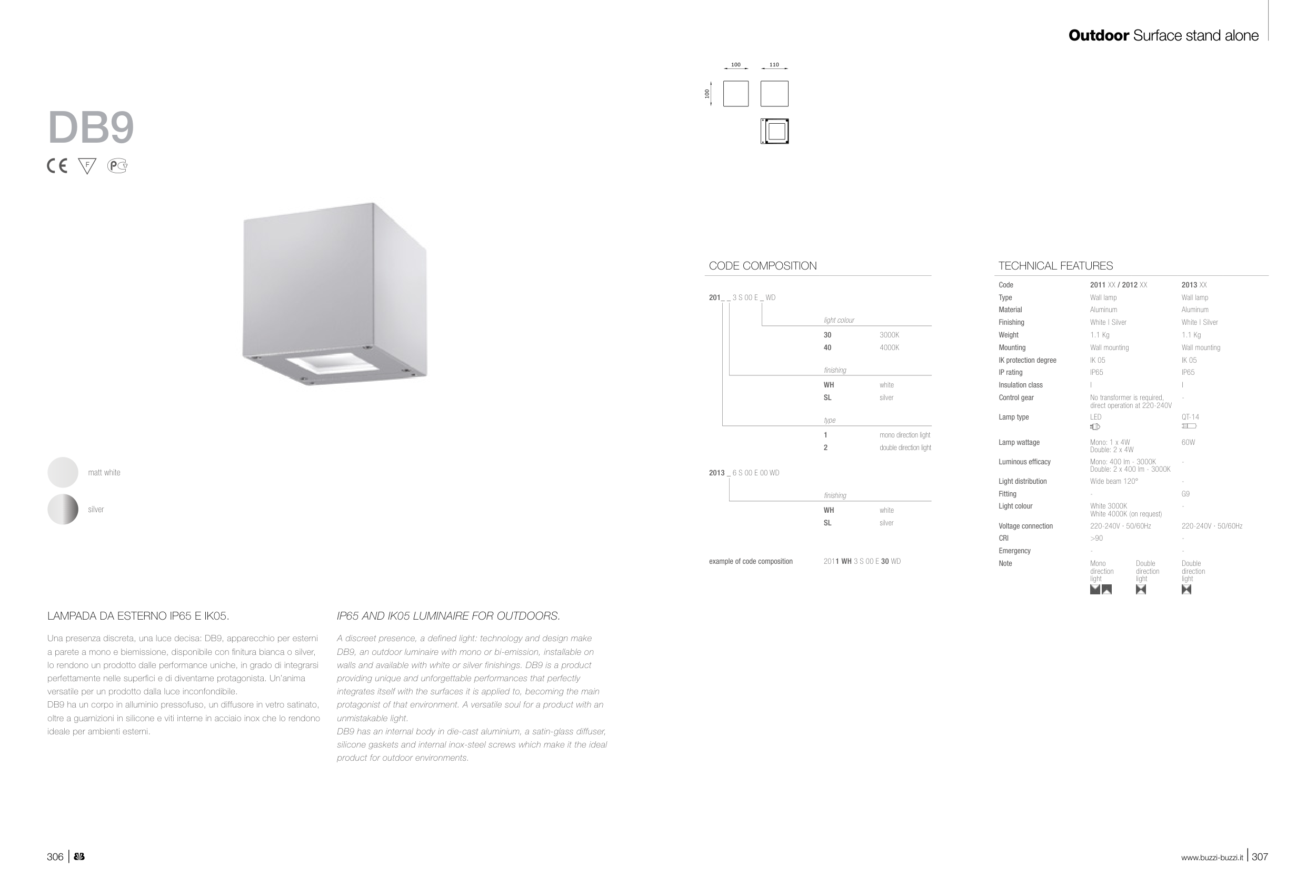

DB9
Una presenza discreta, una luce decisa: DB9, apparecchio per esterni
a parete a mono e biemissione, disponibile con finitura bianca o silver,
lo rendono un prodotto dalle performance uniche, in grado di integrarsi
perfettamente nelle superfici e di diventarne protagonista. Un’anima
versatile per un prodotto dalla luce inconfondibile.
DB9 ha un corpo in alluminio pressofuso, un diffusore in vetro satinato,
oltre a guarnizioni in silicone e viti interne in acciaio inox che lo rendono
ideale per ambienti esterni.
A discreet presence, a defined light: technology and design make
DB9, an outdoor luminaire with mono or bi-emission, installable on
walls and available with white or silver finishings. DB9 is a product
providing unique and unforgettable performances that perfectly
integrates itself with the surfaces it is applied to, becoming the main
protagonist of that environment. A versatile soul for a product with an
unmistakable light.
DB9 has an internal body in die-cast aluminium, a satin-glass diffuser,
silicone gaskets and internal inox-steel screws which make it the ideal
product for outdoor environments.
CODE COMPOSITION
201_ _ 3 S 00 E _ WD
light colour
30
3000K
40
4000K
finishing
WH
white
SL
silver
type
1
mono direction light
2
double direction light
2013 _ 6 S 00 E 00 WD
finishing
WH
white
SL
silver
example of code composition
2011 WH 3 S 00 E 30 WD
TECHNICAL FEATURES
Code
2011 XX / 2012 XX
2013 XX
Type
Wall lamp
Wall lamp
Material
Aluminum
Aluminum
Finishing
White | Silver
White | Silver
Weight
1.1 Kg
1.1 Kg
Mounting
Wall mounting
Wall mounting
IK protection degree
IK 05
IK 05
IP rating
IP65
IP65
Insulation class
I
I
Control gear
No transformer is required,
direct operation at 220-240V
-
Lamp type
LED
QT-14
Lamp wattage
Mono: 1 x 4W
Double: 2 x 4W
60W
Luminous efficacy
Mono: 400 lm - 3000K
Double: 2 x 400 lm - 3000K
-
Light distribution
Wide beam 120°
-
Fitting
-
G9
Light colour
White 3000K
White 4000K (on request)
-
Voltage connection
220-240V · 50/60Hz
220-240V · 50/60Hz
CRI
>90
-
Emergency
-
-
Note
Mono
direction
light
Double
direction
light
Double
direction
light
LAMPADA DA ESTERNO IP65 E IK05.
IP65 AND IK05 LUMINAIRE FOR OUTDOORS.
matt white
silver
306 |
www.buzzi-buzzi.it | 307
Outdoor Surface stand alone
