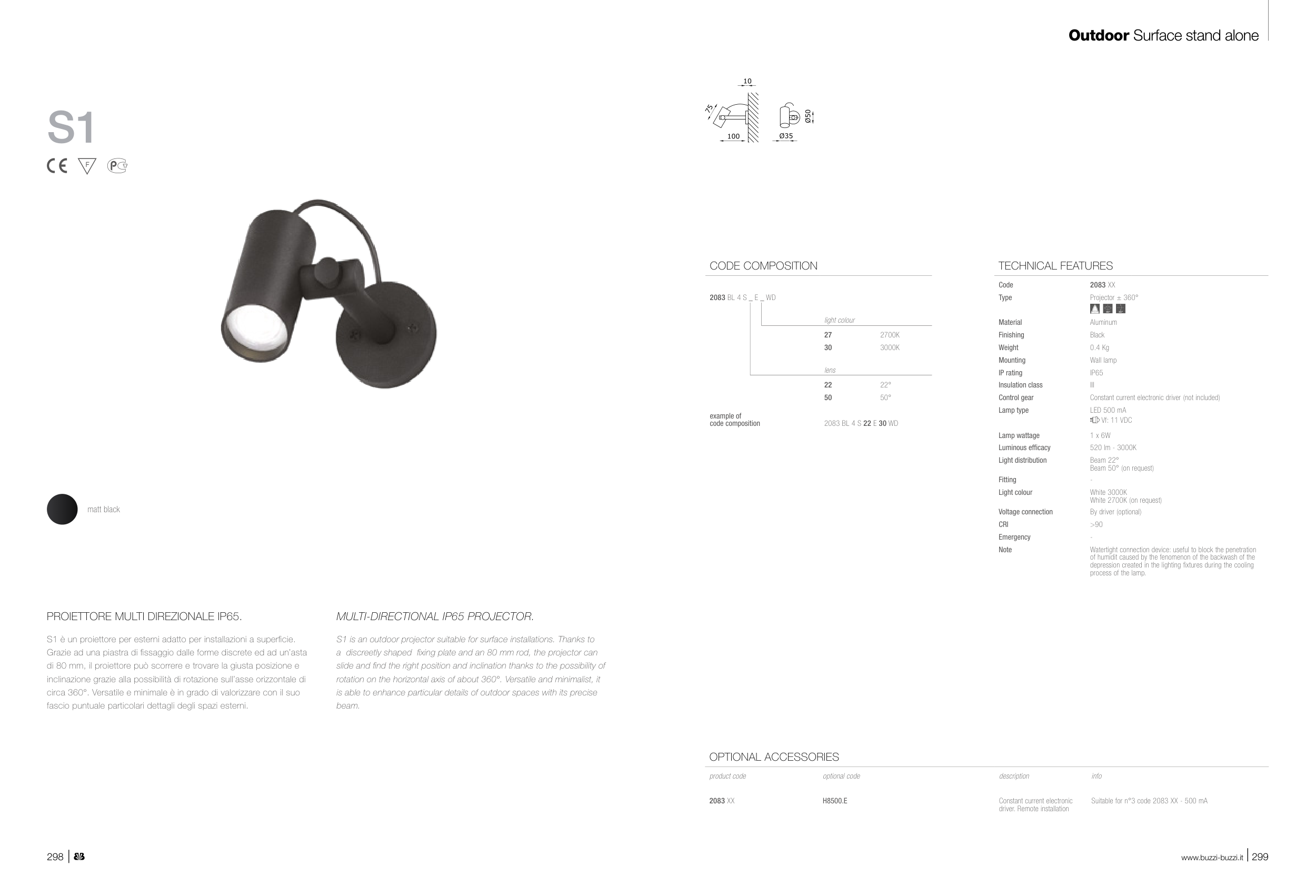

S1
CODE COMPOSITION
2083 BL 4 S _ E _ WD
light colour
27
2700K
30
3000K
lens
22
22°
50
50°
example of
code composition
2083 BL 4 S 22 E 30 WD
S1 è un proiettore per esterni adatto per installazioni a superficie.
Grazie ad una piastra di fissaggio dalle forme discrete ed ad un’asta
di 80 mm, il proiettore può scorrere e trovare la giusta posizione e
inclinazione grazie alla possibilità di rotazione sull’asse orizzontale di
circa 360°. Versatile e minimale è in grado di valorizzare con il suo
fascio puntuale particolari dettagli degli spazi esterni.
S1 is an outdoor projector suitable for surface installations. Thanks to
a discreetly shaped fixing plate and an 80 mm rod, the projector can
slide and find the right position and inclination thanks to the possibility of
rotation on the horizontal axis of about 360°. Versatile and minimalist, it
is able to enhance particular details of outdoor spaces with its precise
beam.
TECHNICAL FEATURES
Code
2083 XX
Type
Projector ± 360°
Material
Aluminum
Finishing
Black
Weight
0.4 Kg
Mounting
Wall lamp
IP rating
IP65
Insulation class
III
Control gear
Constant current electronic driver (not included)
Lamp type
LED 500 mA
Vf: 11 VDC
Lamp wattage
1 x 6W
Luminous efficacy
520 lm - 3000K
Light distribution
Beam 22°
Beam 50° (on request)
Fitting
-
Light colour
White 3000K
White 2700K (on request)
Voltage connection
By driver (optional)
CRI
>90
Emergency
-
Note
Watertight connection device: useful to block the penetration
of humidit caused by the fenomenon of the backwash of the
depression created in the lighting fixtures during the cooling
process of the lamp.
OPTIONAL ACCESSORIES
product code
optional code
description
info
2083 XX
H8500.E
Constant current electronic
driver. Remote installation
Suitable for n°3 code 2083 XX - 500 mA
matt black
PROIETTORE MULTI DIREZIONALE IP65.
MULTI-DIRECTIONAL IP65 PROJECTOR.
www.buzzi-buzzi.it | 299
Outdoor Surface stand alone
298 |
