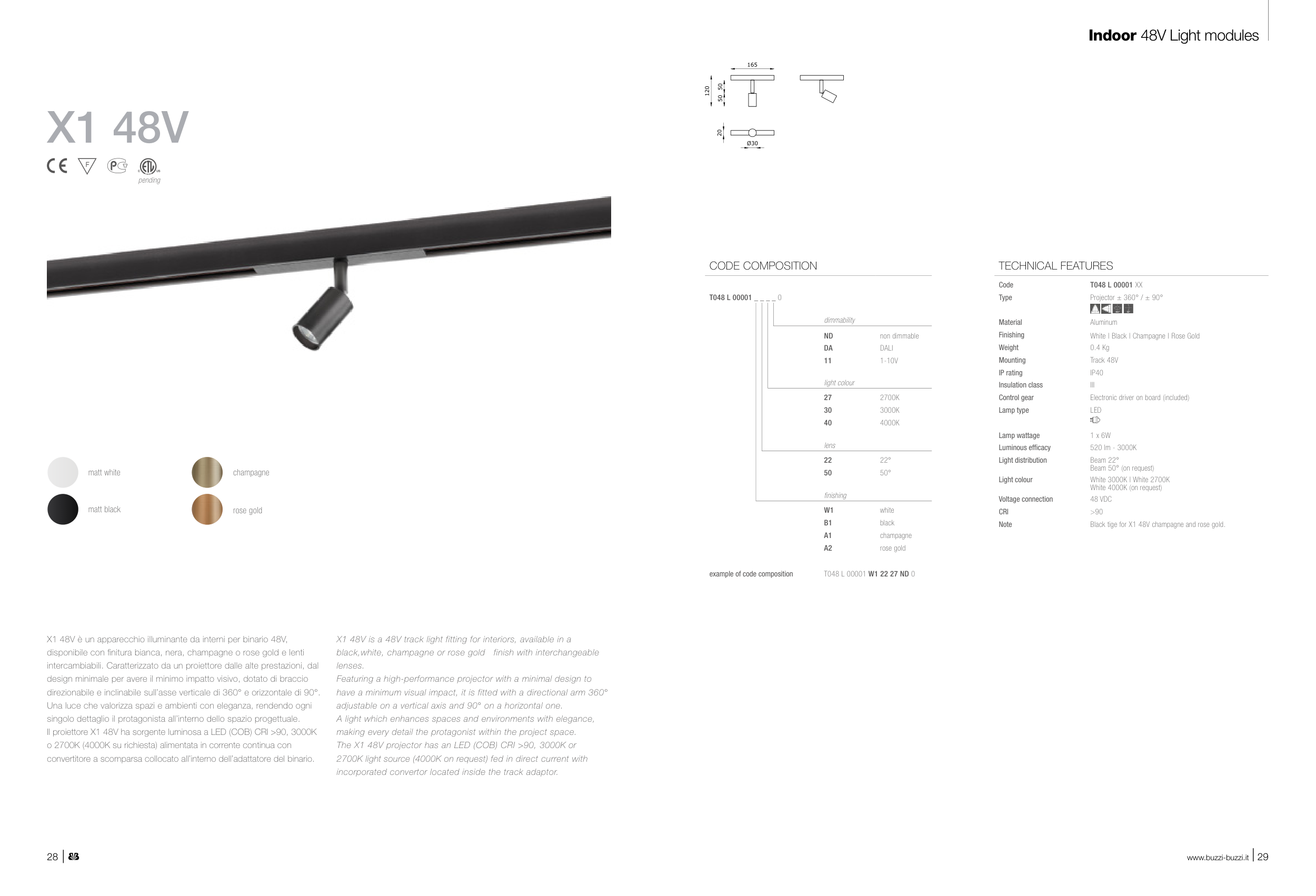

X1 48V
X1 48V è un apparecchio illuminante da interni per binario 48V,
disponibile con finitura bianca, nera, champagne o rose gold e lenti
intercambiabili. Caratterizzato da un proiettore dalle alte prestazioni, dal
design minimale per avere il minimo impatto visivo, dotato di braccio
direzionabile e inclinabile sull’asse verticale di 360° e orizzontale di 90°.
Una luce che valorizza spazi e ambienti con eleganza, rendendo ogni
singolo dettaglio il protagonista all’interno dello spazio progettuale.
Il proiettore X1 48V ha sorgente luminosa a LED (COB) CRI >90, 3000K
o 2700K (4000K su richiesta) alimentata in corrente continua con
convertitore a scomparsa collocato all’interno dell’adattatore del binario.
X1 48V is a 48V track light fitting for interiors, available in a
black,white, champagne or rose gold finish with interchangeable
lenses.
Featuring a high-performance projector with a minimal design to
have a minimum visual impact, it is fitted with a directional arm 360°
adjustable on a vertical axis and 90° on a horizontal one.
A light which enhances spaces and environments with elegance,
making every detail the protagonist within the project space.
The X1 48V projector has an LED (COB) CRI >90, 3000K or
2700K light source (4000K on request) fed in direct current with
incorporated convertor located inside the track adaptor.
CODE COMPOSITION
T048 L 00001 _ _ _ _ 0
dimmability
ND
non dimmable
DA
DALI
11
1-10V
light colour
27
2700K
30
3000K
40
4000K
lens
22
22°
50
50°
finishing
W1
white
B1
black
A1
champagne
A2
rose gold
example of code composition
T048 L 00001 W1 22 27 ND 0
TECHNICAL FEATURES
Code
T048 L 00001 XX
Type
Projector ± 360° / ± 90°
Material
Aluminum
Finishing
White | Black | Champagne | Rose Gold
Weight
0.4 Kg
Mounting
Track 48V
IP rating
IP40
Insulation class
III
Control gear
Electronic driver on board (included)
Lamp type
LED
Lamp wattage
1 x 6W
Luminous efficacy
520 lm - 3000K
Light distribution
Beam 22°
Beam 50° (on request)
Light colour
White 3000K | White 2700K
White 4000K (on request)
Voltage connection
48 VDC
CRI
>90
Note
Black tige for X1 48V champagne and rose gold.
pending
matt white
matt black
champagne
rose gold
