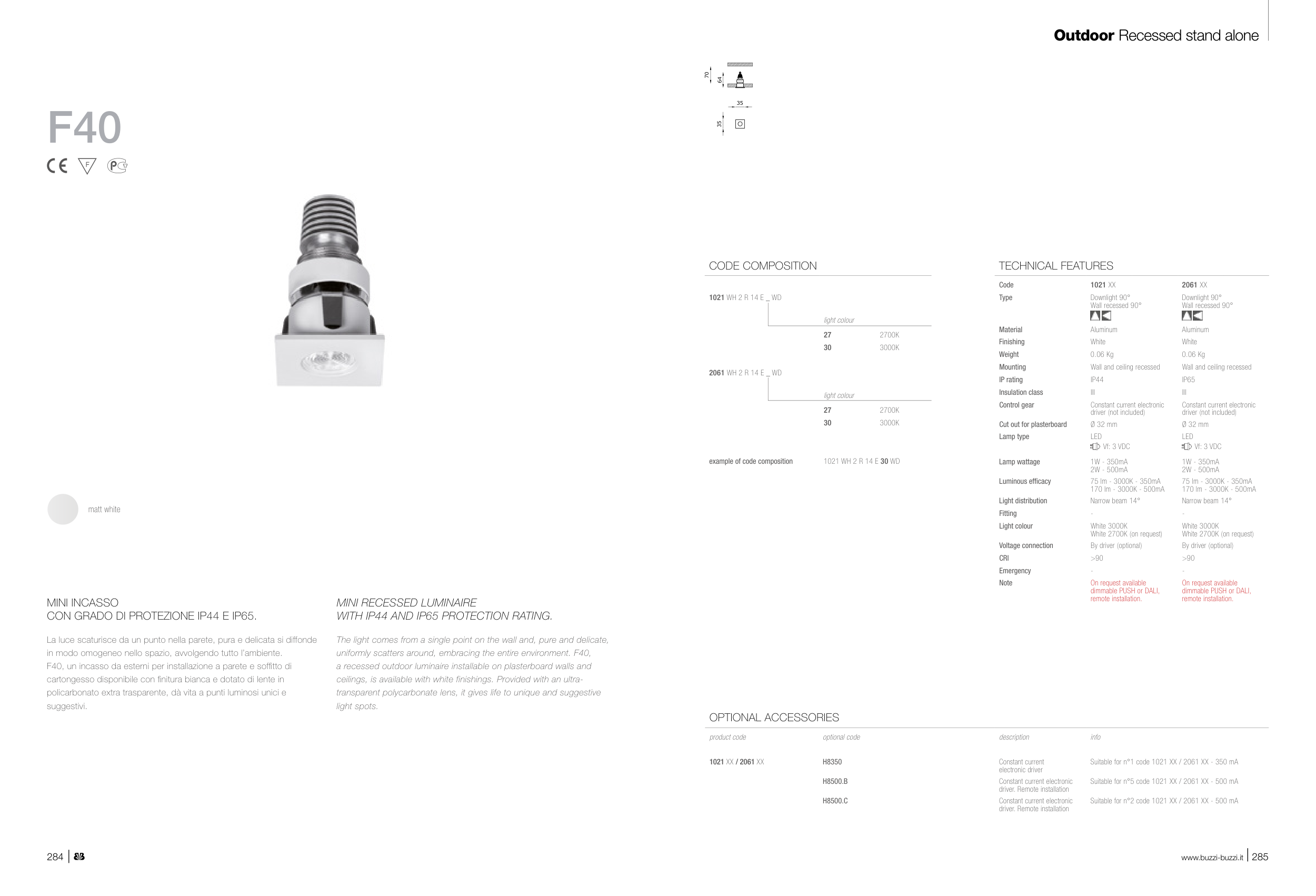

F40
La luce scaturisce da un punto nella parete, pura e delicata si diffonde
in modo omogeneo nello spazio, avvolgendo tutto l’ambiente.
F40, un incasso da esterni per installazione a parete e soffitto di
cartongesso disponibile con finitura bianca e dotato di lente in
policarbonato extra trasparente, dà vita a punti luminosi unici e
suggestivi.
The light comes from a single point on the wall and, pure and delicate,
uniformly scatters around, embracing the entire environment. F40,
a recessed outdoor luminaire installable on plasterboard walls and
ceilings, is available with white finishings. Provided with an ultra-
transparent polycarbonate lens, it gives life to unique and suggestive
light spots.
OPTIONAL ACCESSORIES
product code
optional code
description
info
1021 XX / 2061 XX
H8350
Constant current
electronic driver
Suitable for n°1 code 1021 XX / 2061 XX - 350 mA
H8500.B
Constant current electronic
driver. Remote installation
Suitable for n°5 code 1021 XX / 2061 XX - 500 mA
H8500.C
Constant current electronic
driver. Remote installation
Suitable for n°2 code 1021 XX / 2061 XX - 500 mA
TECHNICAL FEATURES
Code
1021 XX
2061 XX
Type
Downlight 90°
Wall recessed 90°
Downlight 90°
Wall recessed 90°
Material
Aluminum
Aluminum
Finishing
White
White
Weight
0.06 Kg
0.06 Kg
Mounting
Wall and ceiling recessed
Wall and ceiling recessed
IP rating
IP44
IP65
Insulation class
III
III
Control gear
Constant current electronic
driver (not included)
Constant current electronic
driver (not included)
Cut out for plasterboard
Ø 32 mm
Ø 32 mm
Lamp type
LED
LED
Vf: 3 VDC
Vf: 3 VDC
Lamp wattage
1W - 350mA
2W - 500mA
1W - 350mA
2W - 500mA
Luminous efficacy
75 lm - 3000K - 350mA
170 lm - 3000K - 500mA
75 lm - 3000K - 350mA
170 lm - 3000K - 500mA
Light distribution
Narrow beam 14°
Narrow beam 14°
Fitting
-
-
Light colour
White 3000K
White 2700K (on request)
White 3000K
White 2700K (on request)
Voltage connection
By driver (optional)
By driver (optional)
CRI
>90
>90
Emergency
-
-
Note
On request available
dimmable PUSH or DALI,
remote installation.
On request available
dimmable PUSH or DALI,
remote installation.
CODE COMPOSITION
1021 WH 2 R 14 E _ WD
light colour
27
2700K
30
3000K
2061 WH 2 R 14 E _ WD
light colour
27
2700K
30
3000K
example of code composition
1021 WH 2 R 14 E 30 WD
matt white
MINI INCASSO
CON GRADO DI PROTEZIONE IP44 E IP65.
MINI RECESSED LUMINAIRE
WITH IP44 AND IP65 PROTECTION RATING.
