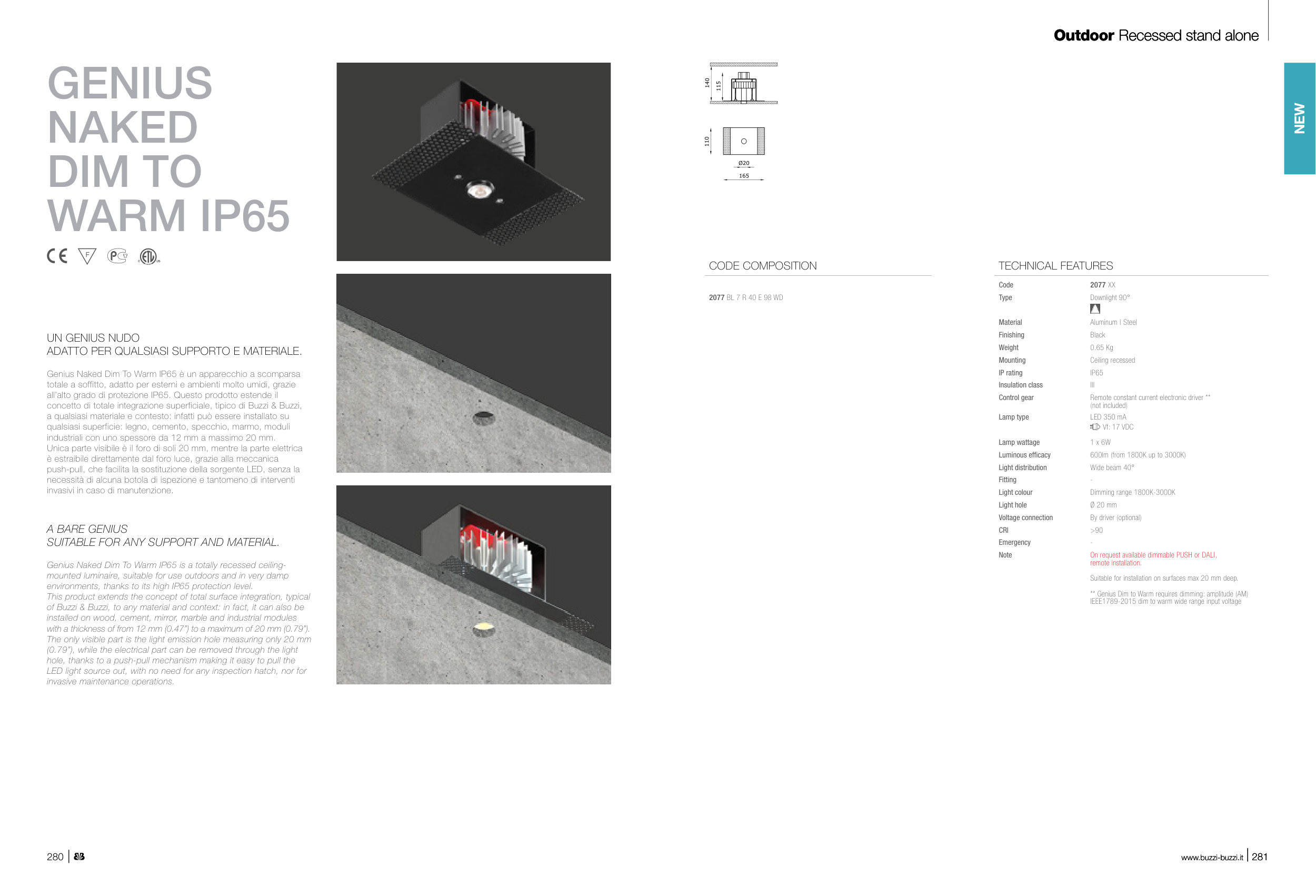

GENIUS
NAKED
DIM TO
WARM IP65
NEW
CODE COMPOSITION
2077 BL 7 R 40 E 98 WD
TECHNICAL FEATURES
Code
2077 XX
Type
Downlight 90°
Material
Aluminum | Steel
Finishing
Black
Weight
0.65 Kg
Mounting
Ceiling recessed
IP rating
IP65
Insulation class
III
Control gear
Remote constant current electronic driver **
(not included)
Lamp type
LED 350 mA
Vf: 17 VDC
Lamp wattage
1 x 6W
Luminous efficacy
600lm (from 1800K up to 3000K)
Light distribution
Wide beam 40°
Fitting
-
Light colour
Dimming range 1800K-3000K
Light hole
Ø 20 mm
Voltage connection
By driver (optional)
CRI
>90
Emergency
-
Note
On request available dimmable PUSH or DALI,
remote installation.
Suitable for installation on surfaces max 20 mm deep.
** Genius Dim to Warm requires dimming: amplitude (AM)
IEEE1789-2015 dim to warm wide range input voltage
UN GENIUS NUDO
ADATTO PER QUALSIASI SUPPORTO E MATERIALE.
Genius Naked Dim To Warm IP65 è un apparecchio a scomparsa
totale a soffitto, adatto per esterni e ambienti molto umidi, grazie
all’alto grado di protezione IP65. Questo prodotto estende il
concetto di totale integrazione superficiale, tipico di Buzzi & Buzzi,
a qualsiasi materiale e contesto: infatti può essere installato su
qualsiasi superficie: legno, cemento, specchio, marmo, moduli
industriali con uno spessore da 12 mm a massimo 20 mm.
Unica parte visibile è il foro di soli 20 mm, mentre la parte elettrica
è estraibile direttamente dal foro luce, grazie alla meccanica
push-pull, che facilita la sostituzione della sorgente LED, senza la
necessità di alcuna botola di ispezione e tantomeno di interventi
invasivi in caso di manutenzione.
Genius Naked Dim To Warm IP65 is a totally recessed ceiling-
mounted luminaire, suitable for use outdoors and in very damp
environments, thanks to its high IP65 protection level.
This product extends the concept of total surface integration, typical
of Buzzi & Buzzi, to any material and context: in fact, it can also be
installed on wood, cement, mirror, marble and industrial modules
with a thickness of from 12 mm (0.47”) to a maximum of 20 mm (0.79”).
The only visible part is the light emission hole measuring only 20 mm
(0.79”), while the electrical part can be removed through the light
hole, thanks to a push-pull mechanism making it easy to pull the
LED light source out, with no need for any inspection hatch, nor for
invasive maintenance operations.
A BARE GENIUS
SUITABLE FOR ANY SUPPORT AND MATERIAL.
