CODE COMPOSITION
1502 _ 2 S _ E _ WD
light colour
27
2700K
30
3000K
40
4000K
lens
22
22°
50
50°
finishing
WH
white
BL
black
example of code composition
1502 BL 2 S 22 E 30 WD
TECHNICAL FEATURES
Code
1502 XX (fig. B)
Type
Projector ± 360° / ± 90°
Material
Aluminum
Finishing
White | Black
Weight
0.75 Kg
Mounting
Ceiling
IP rating
IP40
Insulation class
III
Control gear
Constant current electronic driver, remote installation (not included)
Cut out for plasterboard
-
Lamp type
LED 500 mA
Vf: 11 VDC
Lamp wattage
1 x 6W
Luminous efficacy
520 lm - 3000K
Light distribution
Beam 22°
Beam 50° (on request)
Fitting
-
Light colour
White 3000K
White 2700K | 4000K (on request)
Voltage connection
220-240V · 50/60Hz
CRI
>90
Emergency
On request
Note
On request available dimmable PUSH or DALI, remote installation.
OPTIONAL ACCESSORIES
product code
optional code
description
info
1502 XX
H8500.E
Constant current electronic
driver. Remote installation
Suitable for n°3 code 1502 XX - 500 mA
H8500.C
Constant current electronic
driver. Remote installation
Suitable for n°1 code 1502 XX - 500 mA
B

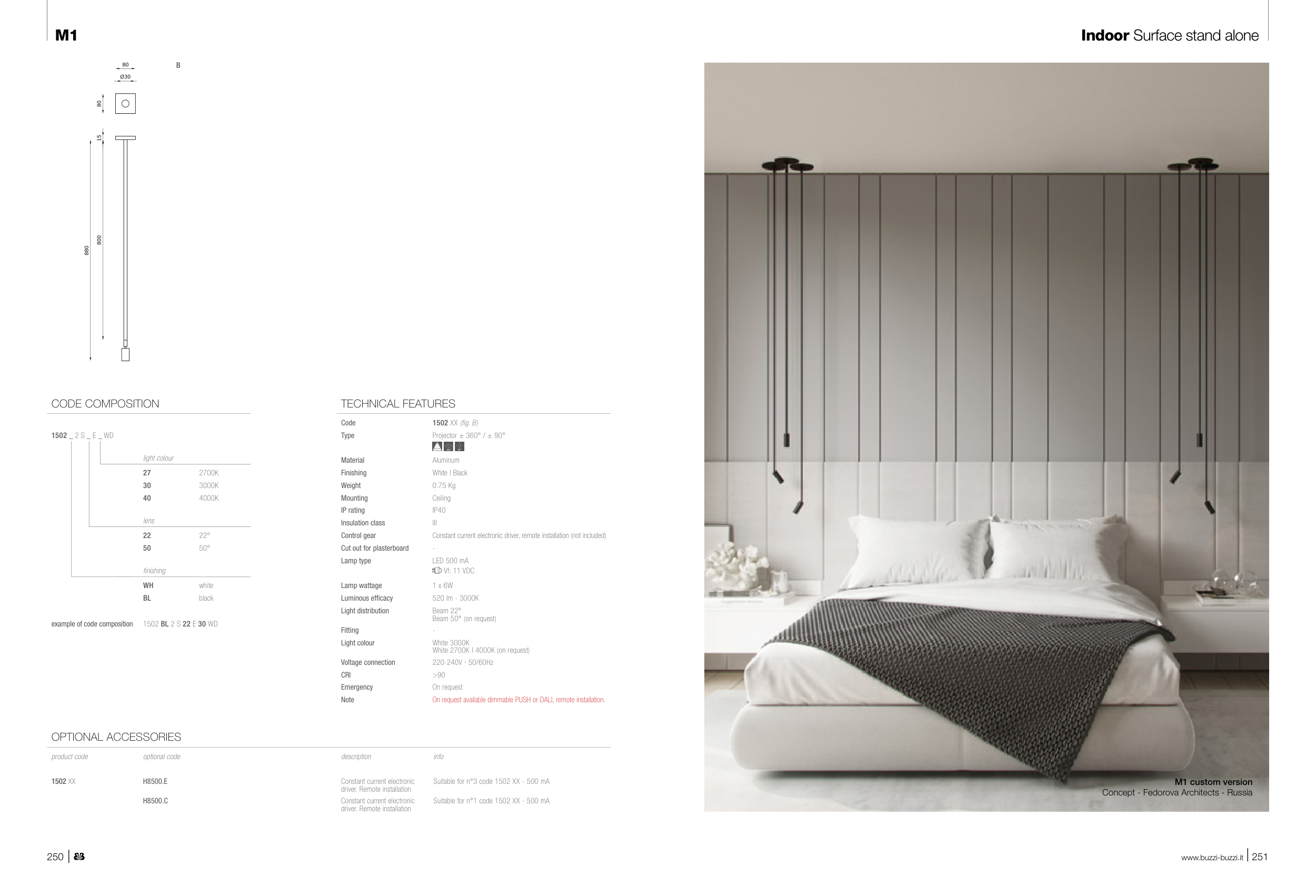

M1 custom version
Concept - Fedorova Architects - Russia
250 |
www.buzzi-buzzi.it | 251
Indoor Surface stand alone
M1
