SCHEDE TECNICHE
144
F458
15/01/2015
MM00857-a-
IP server
BUS-SCS
IT
DC
MH201
MH201
MH201
MH201
MH201
MH201
PR I
1- 2
346020
PRI: 220 - 240V~
175-165mA
50/60Hz
1-2: 27Vdc
600mA
F458
MH201
MH201
MH201
MH201
MH201
MH201
346020
230 V
Schemi di collegamento

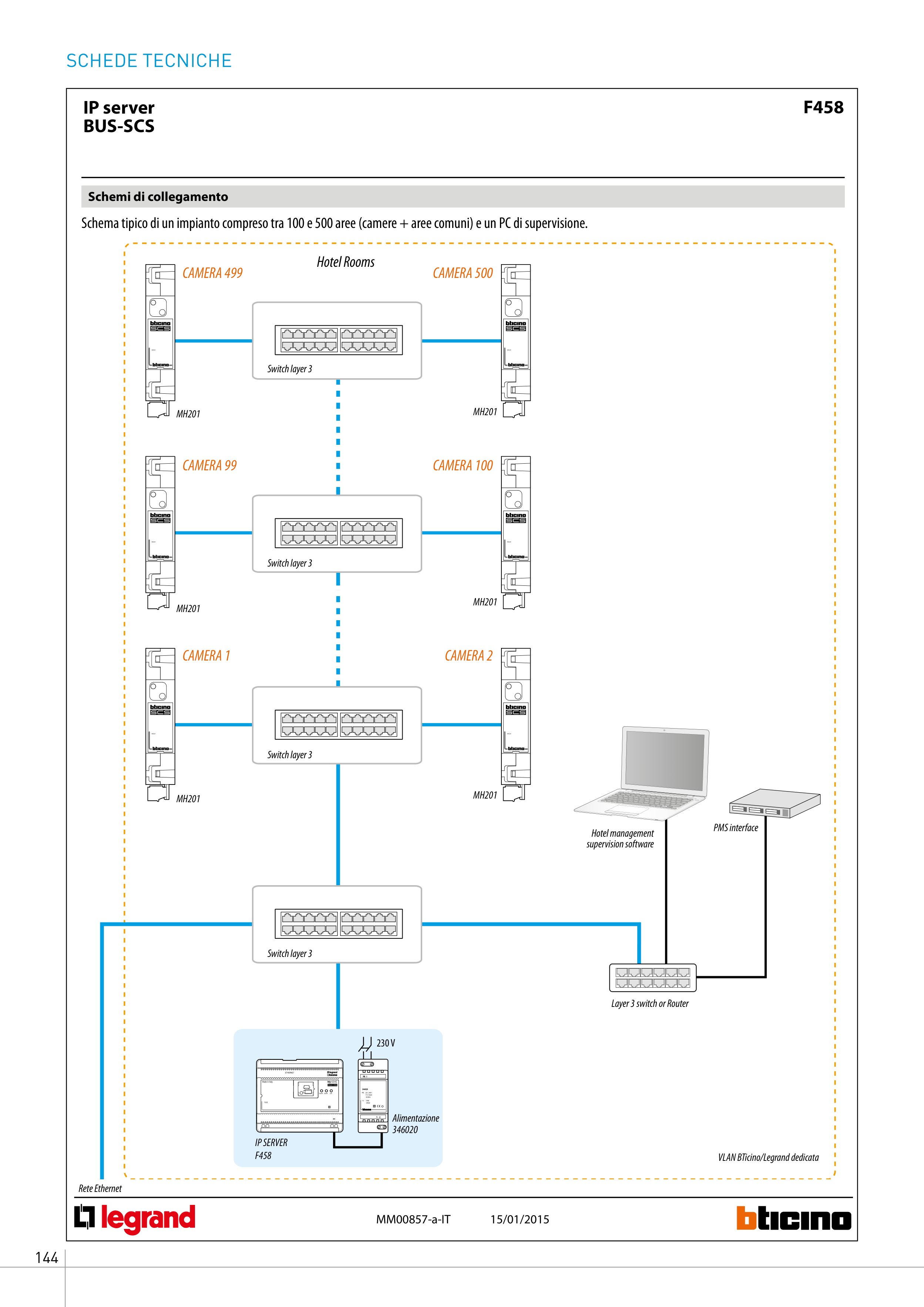

Schema tipico di un impianto compreso tra 100 e 500 aree (camere + aree comuni) e un PC di supervisione.
IP SERVER
Alimentazione
CAMERA 499
CAMERA 500
CAMERA 99
CAMERA 100
CAMERA 1
CAMERA 2
Hotel Rooms
Hotel management
supervision software
VLAN BTicino/Legrand dedicata
Layer 3 switch or Router
PMS interface
Rete Ethernet
Switch layer 3
Switch layer 3
Switch layer 3
Switch layer 3
