STRUMENTI ANALOGICI

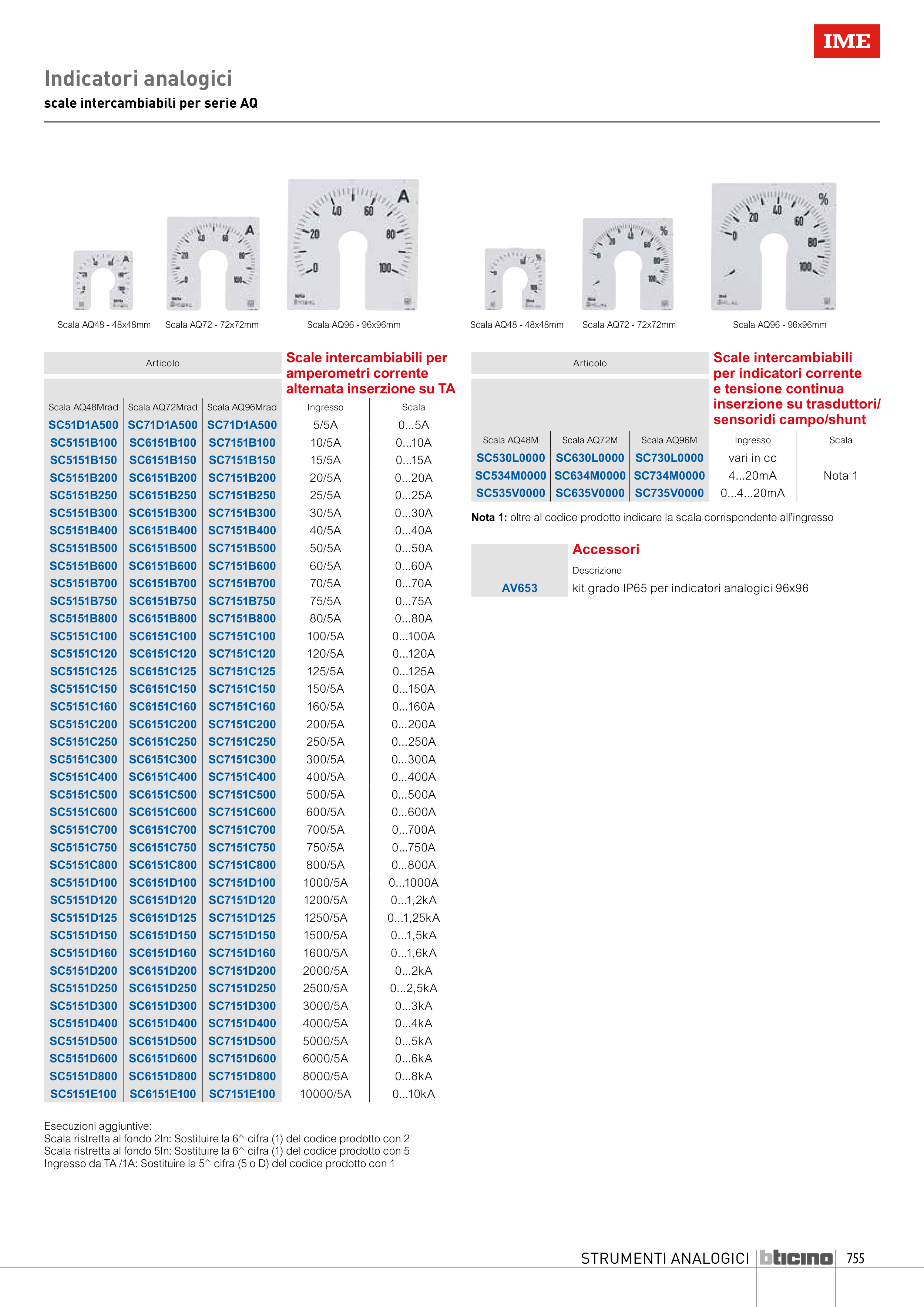

Indicatori analogici
scale intercambiabili per serie AQ
Articolo
Scale intercambiabili per
amperometri corrente
alternata inserzione su TA
Scala AQ48Mrad
Scala AQ72Mrad
Scala AQ96Mrad
Ingresso
Scala
SC51D1A500 SC71D1A500 SC71D1A500
5/5A
0...5A
SC5151B100 SC6151B100 SC7151B100
10/5A
0...10A
SC5151B150 SC6151B150 SC7151B150
15/5A
0...15A
SC5151B200 SC6151B200 SC7151B200
20/5A
0...20A
SC5151B250 SC6151B250 SC7151B250
25/5A
0...25A
SC5151B300 SC6151B300 SC7151B300
30/5A
0...30A
SC5151B400 SC6151B400 SC7151B400
40/5A
0...40A
SC5151B500 SC6151B500 SC7151B500
50/5A
0...50A
SC5151B600 SC6151B600 SC7151B600
60/5A
0...60A
SC5151B700 SC6151B700 SC7151B700
70/5A
0...70A
SC5151B750 SC6151B750 SC7151B750
75/5A
0...75A
SC5151B800 SC6151B800 SC7151B800
80/5A
0...80A
SC5151C100 SC6151C100 SC7151C100
100/5A
0...100A
SC5151C120 SC6151C120 SC7151C120
120/5A
0...120A
SC5151C125 SC6151C125 SC7151C125
125/5A
0...125A
SC5151C150 SC6151C150 SC7151C150
150/5A
0...150A
SC5151C160 SC6151C160 SC7151C160
160/5A
0...160A
SC5151C200 SC6151C200 SC7151C200
200/5A
0...200A
SC5151C250 SC6151C250 SC7151C250
250/5A
0...250A
SC5151C300 SC6151C300 SC7151C300
300/5A
0...300A
SC5151C400 SC6151C400 SC7151C400
400/5A
0...400A
SC5151C500 SC6151C500 SC7151C500
500/5A
0...500A
SC5151C600 SC6151C600 SC7151C600
600/5A
0...600A
SC5151C700 SC6151C700 SC7151C700
700/5A
0...700A
SC5151C750 SC6151C750 SC7151C750
750/5A
0...750A
SC5151C800 SC6151C800 SC7151C800
800/5A
0...800A
SC5151D100 SC6151D100 SC7151D100
1000/5A
0...1000A
SC5151D120 SC6151D120 SC7151D120
1200/5A
0...1,2kA
SC5151D125 SC6151D125 SC7151D125
1250/5A
0...1,25kA
SC5151D150 SC6151D150 SC7151D150
1500/5A
0...1,5kA
SC5151D160 SC6151D160 SC7151D160
1600/5A
0...1,6kA
SC5151D200 SC6151D200 SC7151D200
2000/5A
0...2kA
SC5151D250 SC6151D250 SC7151D250
2500/5A
0...2,5kA
SC5151D300 SC6151D300 SC7151D300
3000/5A
0...3kA
SC5151D400 SC6151D400 SC7151D400
4000/5A
0...4kA
SC5151D500 SC6151D500 SC7151D500
5000/5A
0...5kA
SC5151D600 SC6151D600 SC7151D600
6000/5A
0...6kA
SC5151D800 SC6151D800 SC7151D800
8000/5A
0...8kA
SC5151E100
SC6151E100
SC7151E100
10000/5A
0...10kA
Articolo
Scale intercambiabili
per indicatori corrente
e tensione continua
inserzione su trasduttori/
sensoridi campo/shunt
Scala AQ48M
Scala AQ72M
Scala AQ96M
Ingresso
Scala
SC530L0000 SC630L0000 SC730L0000
vari in cc
Nota 1
SC534M0000 SC634M0000 SC734M0000
4...20mA
SC535V0000 SC635V0000 SC735V0000
0...4...20mA
Nota 1: oltre al codice prodotto indicare la scala corrispondente all’ingresso
Scala AQ48 - 48x48mm
Scala AQ48 - 48x48mm
Scala AQ72 - 72x72mm
Scala AQ72 - 72x72mm
Scala AQ96 - 96x96mm
Scala AQ96 - 96x96mm
Esecuzioni aggiuntive:
Scala ristretta al fondo 2In: Sostituire la 6^ cifra (1) del codice prodotto con 2
Scala ristretta al fondo 5In: Sostituire la 6^ cifra (1) del codice prodotto con 5
Ingresso da TA /1A: Sostituire la 5^ cifra (5 o D) del codice prodotto con 1
Accessori
Descrizione
AV653
kit grado IP65 per indicatori analogici 96x96
