730
RELÈ D’ISOLAMENTO ISO

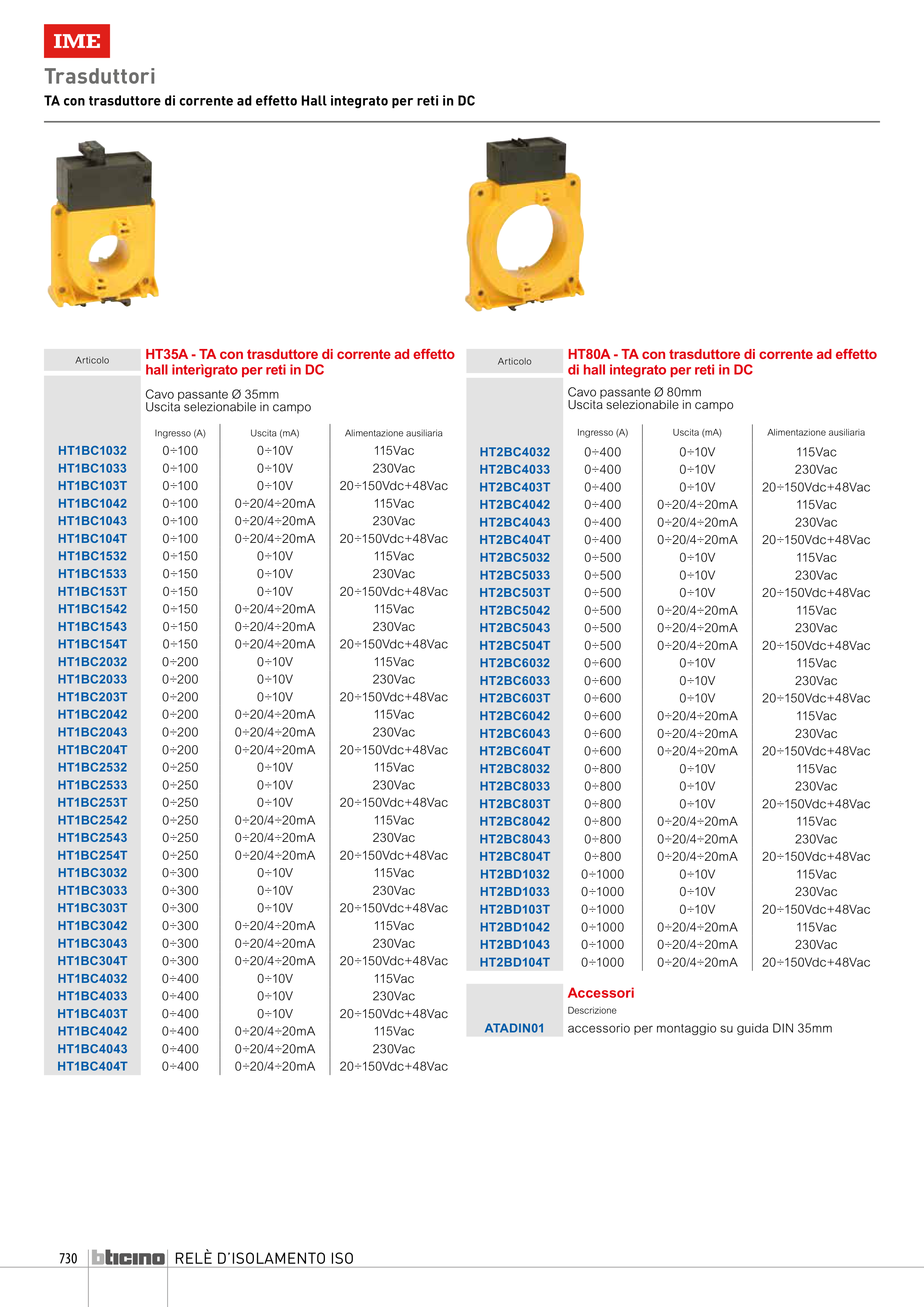

Trasduttori
TA con trasduttore di corrente ad effetto Hall integrato per reti in DC
Articolo
HT35A - TA con trasduttore di corrente ad effetto
hall interìgrato per reti in DC
Cavo passante Ø 35mm
Uscita selezionabile in campo
Ingresso (A)
Uscita (mA)
Alimentazione ausiliaria
HT1BC1032
0÷100
0÷10V
115Vac
HT1BC1033
0÷100
0÷10V
230Vac
HT1BC103T
0÷100
0÷10V
20÷150Vdc+48Vac
HT1BC1042
0÷100
0÷20/4÷20mA
115Vac
HT1BC1043
0÷100
0÷20/4÷20mA
230Vac
HT1BC104T
0÷100
0÷20/4÷20mA
20÷150Vdc+48Vac
HT1BC1532
0÷150
0÷10V
115Vac
HT1BC1533
0÷150
0÷10V
230Vac
HT1BC153T
0÷150
0÷10V
20÷150Vdc+48Vac
HT1BC1542
0÷150
0÷20/4÷20mA
115Vac
HT1BC1543
0÷150
0÷20/4÷20mA
230Vac
HT1BC154T
0÷150
0÷20/4÷20mA
20÷150Vdc+48Vac
HT1BC2032
0÷200
0÷10V
115Vac
HT1BC2033
0÷200
0÷10V
230Vac
HT1BC203T
0÷200
0÷10V
20÷150Vdc+48Vac
HT1BC2042
0÷200
0÷20/4÷20mA
115Vac
HT1BC2043
0÷200
0÷20/4÷20mA
230Vac
HT1BC204T
0÷200
0÷20/4÷20mA
20÷150Vdc+48Vac
HT1BC2532
0÷250
0÷10V
115Vac
HT1BC2533
0÷250
0÷10V
230Vac
HT1BC253T
0÷250
0÷10V
20÷150Vdc+48Vac
HT1BC2542
0÷250
0÷20/4÷20mA
115Vac
HT1BC2543
0÷250
0÷20/4÷20mA
230Vac
HT1BC254T
0÷250
0÷20/4÷20mA
20÷150Vdc+48Vac
HT1BC3032
0÷300
0÷10V
115Vac
HT1BC3033
0÷300
0÷10V
230Vac
HT1BC303T
0÷300
0÷10V
20÷150Vdc+48Vac
HT1BC3042
0÷300
0÷20/4÷20mA
115Vac
HT1BC3043
0÷300
0÷20/4÷20mA
230Vac
HT1BC304T
0÷300
0÷20/4÷20mA
20÷150Vdc+48Vac
HT1BC4032
0÷400
0÷10V
115Vac
HT1BC4033
0÷400
0÷10V
230Vac
HT1BC403T
0÷400
0÷10V
20÷150Vdc+48Vac
HT1BC4042
0÷400
0÷20/4÷20mA
115Vac
HT1BC4043
0÷400
0÷20/4÷20mA
230Vac
HT1BC404T
0÷400
0÷20/4÷20mA
20÷150Vdc+48Vac
Articolo
HT80A - TA con trasduttore di corrente ad effetto
di hall integrato per reti in DC
Cavo passante Ø 80mm
Uscita selezionabile in campo
Ingresso (A)
Uscita (mA)
Alimentazione ausiliaria
HT2BC4032
0÷400
0÷10V
115Vac
HT2BC4033
0÷400
0÷10V
230Vac
HT2BC403T
0÷400
0÷10V
20÷150Vdc+48Vac
HT2BC4042
0÷400
0÷20/4÷20mA
115Vac
HT2BC4043
0÷400
0÷20/4÷20mA
230Vac
HT2BC404T
0÷400
0÷20/4÷20mA
20÷150Vdc+48Vac
HT2BC5032
0÷500
0÷10V
115Vac
HT2BC5033
0÷500
0÷10V
230Vac
HT2BC503T
0÷500
0÷10V
20÷150Vdc+48Vac
HT2BC5042
0÷500
0÷20/4÷20mA
115Vac
HT2BC5043
0÷500
0÷20/4÷20mA
230Vac
HT2BC504T
0÷500
0÷20/4÷20mA
20÷150Vdc+48Vac
HT2BC6032
0÷600
0÷10V
115Vac
HT2BC6033
0÷600
0÷10V
230Vac
HT2BC603T
0÷600
0÷10V
20÷150Vdc+48Vac
HT2BC6042
0÷600
0÷20/4÷20mA
115Vac
HT2BC6043
0÷600
0÷20/4÷20mA
230Vac
HT2BC604T
0÷600
0÷20/4÷20mA
20÷150Vdc+48Vac
HT2BC8032
0÷800
0÷10V
115Vac
HT2BC8033
0÷800
0÷10V
230Vac
HT2BC803T
0÷800
0÷10V
20÷150Vdc+48Vac
HT2BC8042
0÷800
0÷20/4÷20mA
115Vac
HT2BC8043
0÷800
0÷20/4÷20mA
230Vac
HT2BC804T
0÷800
0÷20/4÷20mA
20÷150Vdc+48Vac
HT2BD1032
0÷1000
0÷10V
115Vac
HT2BD1033
0÷1000
0÷10V
230Vac
HT2BD103T
0÷1000
0÷10V
20÷150Vdc+48Vac
HT2BD1042
0÷1000
0÷20/4÷20mA
115Vac
HT2BD1043
0÷1000
0÷20/4÷20mA
230Vac
HT2BD104T
0÷1000
0÷20/4÷20mA
20÷150Vdc+48Vac
Accessori
Descrizione
ATADIN01
accessorio per montaggio su guida DIN 35mm
