* It is indicated water exit position

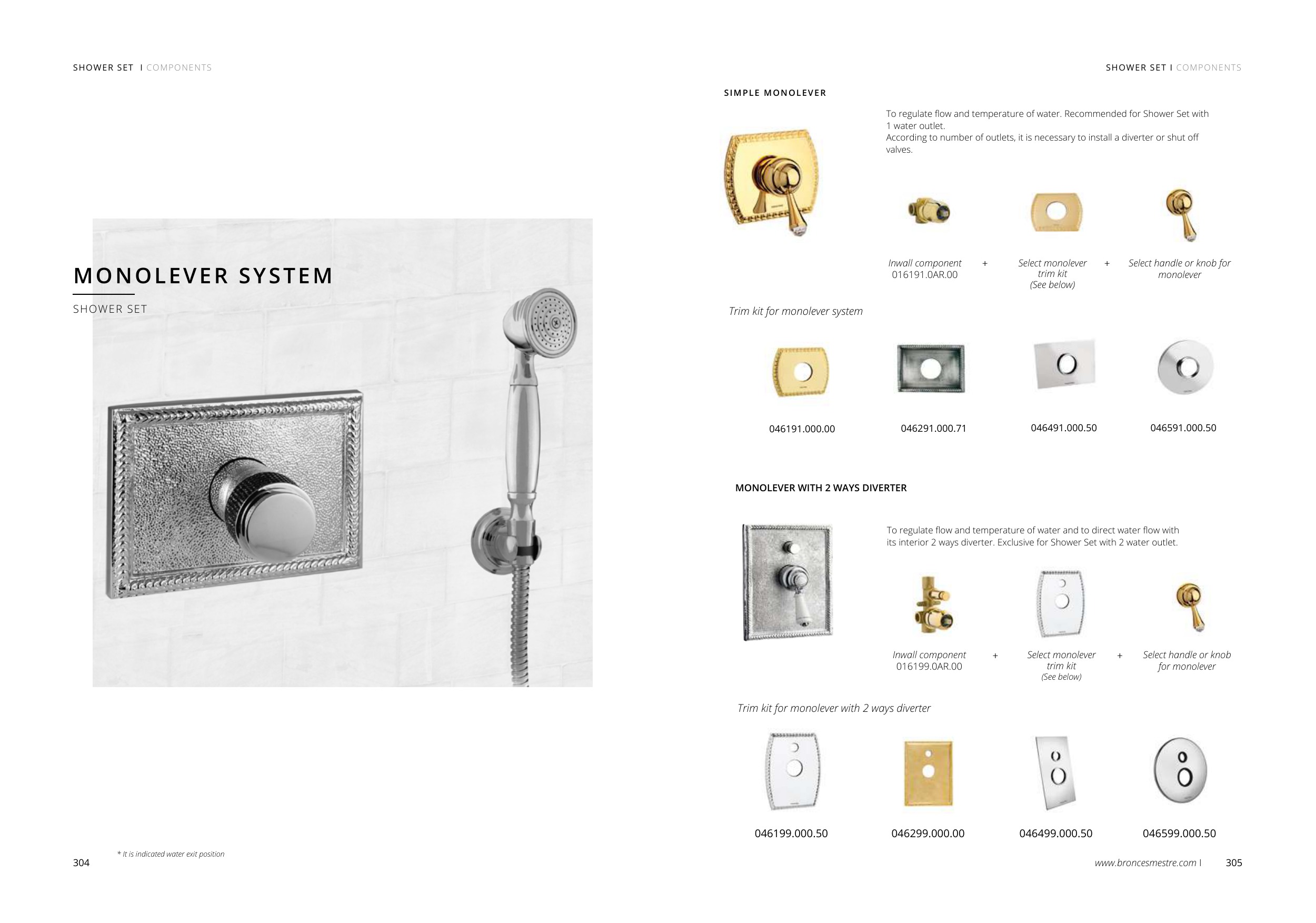

SHOWER SET I COMPONENTS
MONOLEVER SYSTEM
SHOWER SET
SHOWER SET I COMPONENTS
SIMPLE MONOLEVER
MONOLEVER WITH 2 WAYS DIVERTER
To regulate flow and temperature of water. Recommended for Shower Set with
1 water outlet.
According to number of outlets, it is necessary to install a diverter or shut off
valves.
To regulate flow and temperature of water and to direct water flow with
its interior 2 ways diverter. Exclusive for Shower Set with 2 water outlet.
Inwall component
016191.0AR.00
Inwall component
016199.0AR.00
Select monolever
trim kit
(See below)
Select monolever
trim kit
(See below)
Select handle or knob for
monolever
Select handle or knob
for monolever
+
+
+
+
046191.000.00
046199.000.50
046591.000.50
046599.000.50
046491.000.50
046499.000.50
046291.000.71
046299.000.00
Trim kit for monolever system
Trim kit for monolever with 2 ways diverter
