Diseño / Design:
Estudi Manel Molina / 2024
Tipología: Aplique
Typology: Wall lamp
Ambiente: Exterior
Environment: Outdoor

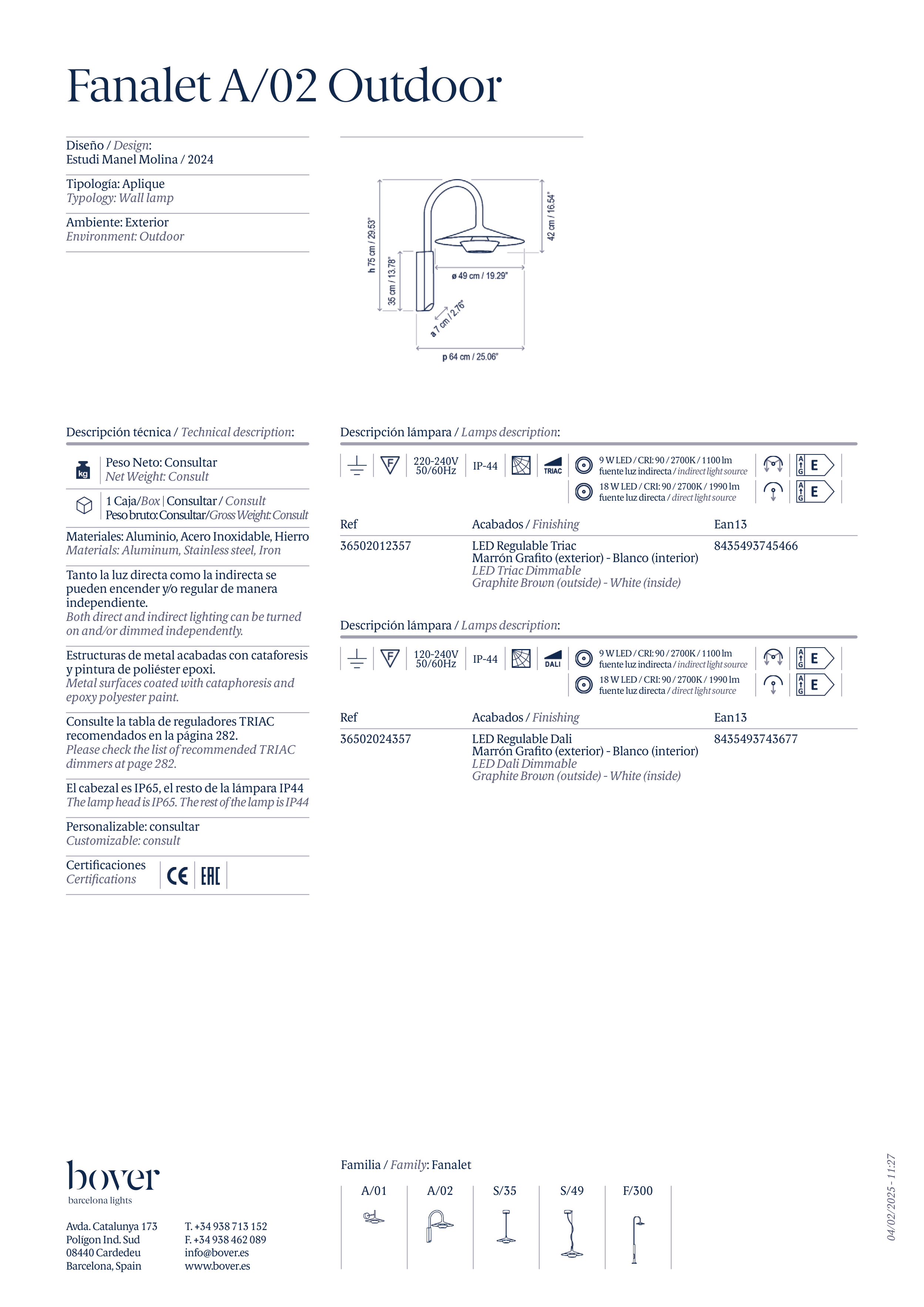

Fanalet A/02 Outdoor
Peso Neto: Consultar
Net Weight: Consult
1 Caja/Box | Consultar / Consult
Peso bruto: Consultar/Gross Weight: Consult
Materiales: Aluminio, Acero Inoxidable, Hierro
Materials: Aluminum, Stainless steel, Iron
Tanto la luz directa como la indirecta se
pueden encender y/o regular de manera
independiente.
Both direct and indirect lighting can be turned
on and/or dimmed independently.
Estructuras de metal acabadas con cataforesis
y pintura de poliéster epoxi.
Metal surfaces coated with cataphoresis and
epoxy polyester paint.
Consulte la tabla de reguladores TRIAC
recomendados en la página 282.
Please check the list of recommended TRIAC
dimmers at page 282.
El cabezal es IP65, el resto de la lámpara IP44
The lamp head is IP65. The rest of the lamp is IP44
Personalizable: consultar
Customizable: consult
Certificaciones
Certifications
Descripción lámpara / Lamps description:
Descripción lámpara / Lamps description:
IP-44
IP-44
Descripción técnica / Technical description:
220-240V
50/60Hz
120-240V
50/60Hz
9 W LED / CRI: 90 / 2700K / 1100 lm
fuente luz indirecta / indirect light source
18 W LED / CRI: 90 / 2700K / 1990 lm
fuente luz directa / direct light source
9 W LED / CRI: 90 / 2700K / 1100 lm
fuente luz indirecta / indirect light source
18 W LED / CRI: 90 / 2700K / 1990 lm
fuente luz directa / direct light source
Familia / Family: Fanalet
A/01
F/300
S/49
A/02
S/35
Avda. Catalunya 173
Polígon Ind. Sud
08440 Cardedeu
Barcelona, Spain
T. +34 938 713 152
F. +34 938 462 089
info@bover.es
www.bover.es
04/02/2025 - 11:27
Ref
Acabados / Finishing
Ean13
36502012357
LED Regulable Triac
8435493745466
Marrón Grafito (exterior) - Blanco (interior)
LED Triac Dimmable
Graphite Brown (outside) - White (inside)
Ref
Acabados / Finishing
Ean13
36502024357
LED Regulable Dali
8435493743677
Marrón Grafito (exterior) - Blanco (interior)
LED Dali Dimmable
Graphite Brown (outside) - White (inside)
