Diseño / Design:
Estudi Manel Molina / 2019
Tipología: Suspensión
Typology: Pendant lamp
Ambiente: Interior
Environment: Indoor

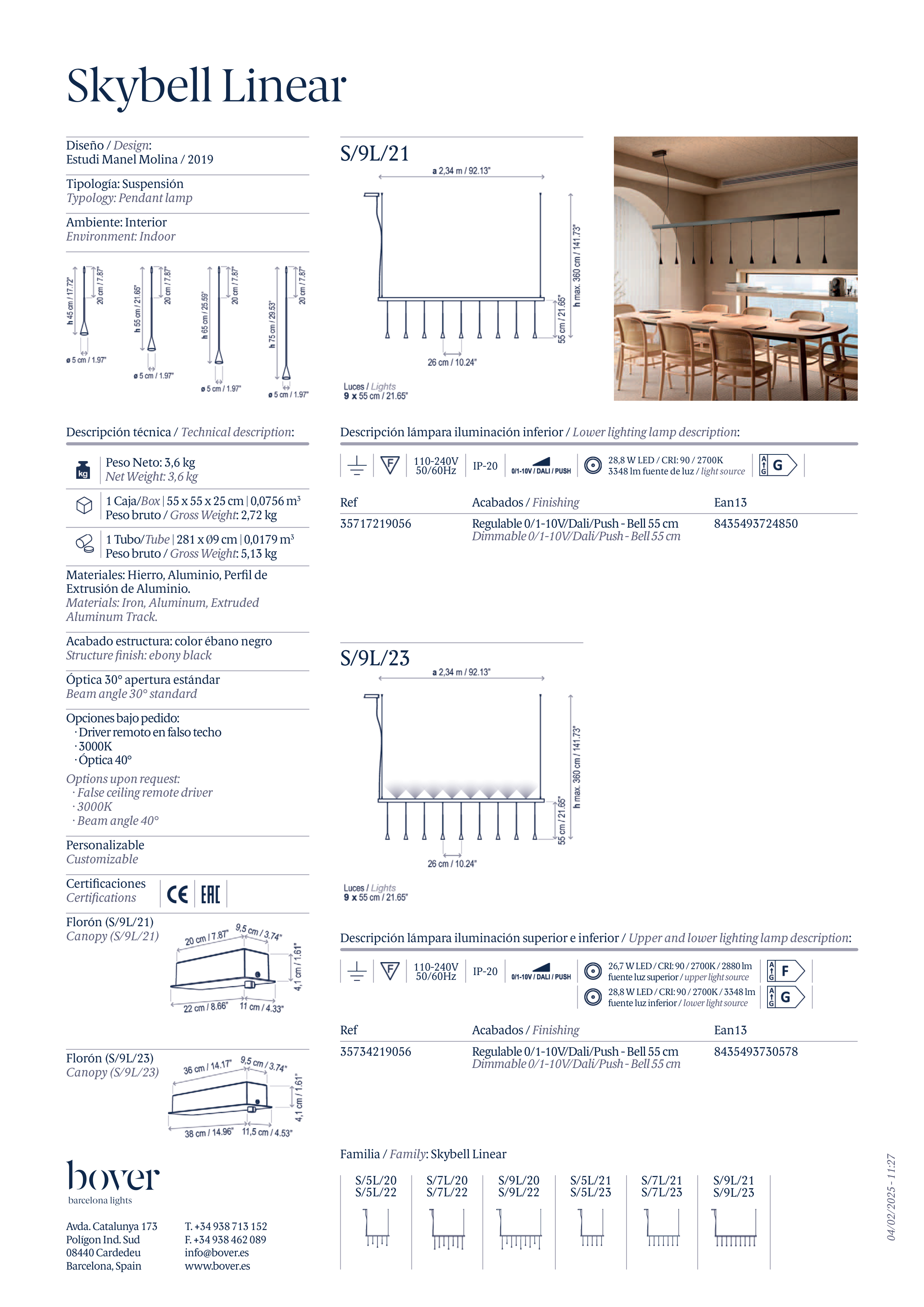

Skybell Linear
Peso Neto: 3,6 kg
Net Weight: 3,6 kg
1 Caja/Box | 55 x 55 x 25 cm | 0,0756 m3
Peso bruto / Gross Weight: 2,72 kg
1 Tubo/Tube | 281 x ø9 cm | 0,0179 m3
Peso bruto / Gross Weight: 5,13 kg
Materiales: Hierro, Aluminio, Perfil de
Extrusión de Aluminio.
Materials: Iron, Aluminum, Extruded
Aluminum Track.
Acabado estructura: color ébano negro
Structure finish: ebony black
Óptica 30° apertura estándar
Beam angle 30° standard
Opciones bajo pedido:
· Driver remoto en falso techo
· 3000K
· Óptica 40°
Options upon request:
· False ceiling remote driver
· 3000K
· Beam angle 40°
Personalizable
Customizable
Certificaciones
Certifications
Florón (S/9L/21)
Canopy (S/9L/21)
Florón (S/9L/23)
Canopy (S/9L/23)
Descripción técnica / Technical description:
Descripción lámpara iluminación inferior / Lower lighting lamp description:
IP-20
28,8 W LED / CRI: 90 / 2700K
3348 lm fuente de luz / light source
Descripción lámpara iluminación superior e inferior / Upper and lower lighting lamp description:
IP-20
26,7 W LED / CRI: 90 / 2700K / 2880 lm
fuente luz superior / upper light source
28,8 W LED / CRI: 90 / 2700K / 3348 lm
fuente luz inferior / lower light source
S/9L/21
S/9L/23
Familia / Family: Skybell Linear
S/7L/20
S/7L/22
S/7L/21
S/7L/23
S/5L/20
S/5L/22
S/9L/20
S/9L/22
S/5L/21
S/5L/23
S/9L/21
S/9L/23
110-240V
50/60Hz
110-240V
50/60Hz
Avda. Catalunya 173
Polígon Ind. Sud
08440 Cardedeu
Barcelona, Spain
T. +34 938 713 152
F. +34 938 462 089
info@bover.es
www.bover.es
04/02/2025 - 11:27
Ref
Acabados / Finishing
Ean13
35717219056
Regulable 0/1-10V/Dali/Push - Bell 55 cm
8435493724850
Dimmable 0/1-10V/Dali/Push - Bell 55 cm
Ref
Acabados / Finishing
Ean13
35734219056
Regulable 0/1-10V/Dali/Push - Bell 55 cm
8435493730578
Dimmable 0/1-10V/Dali/Push - Bell 55 cm
