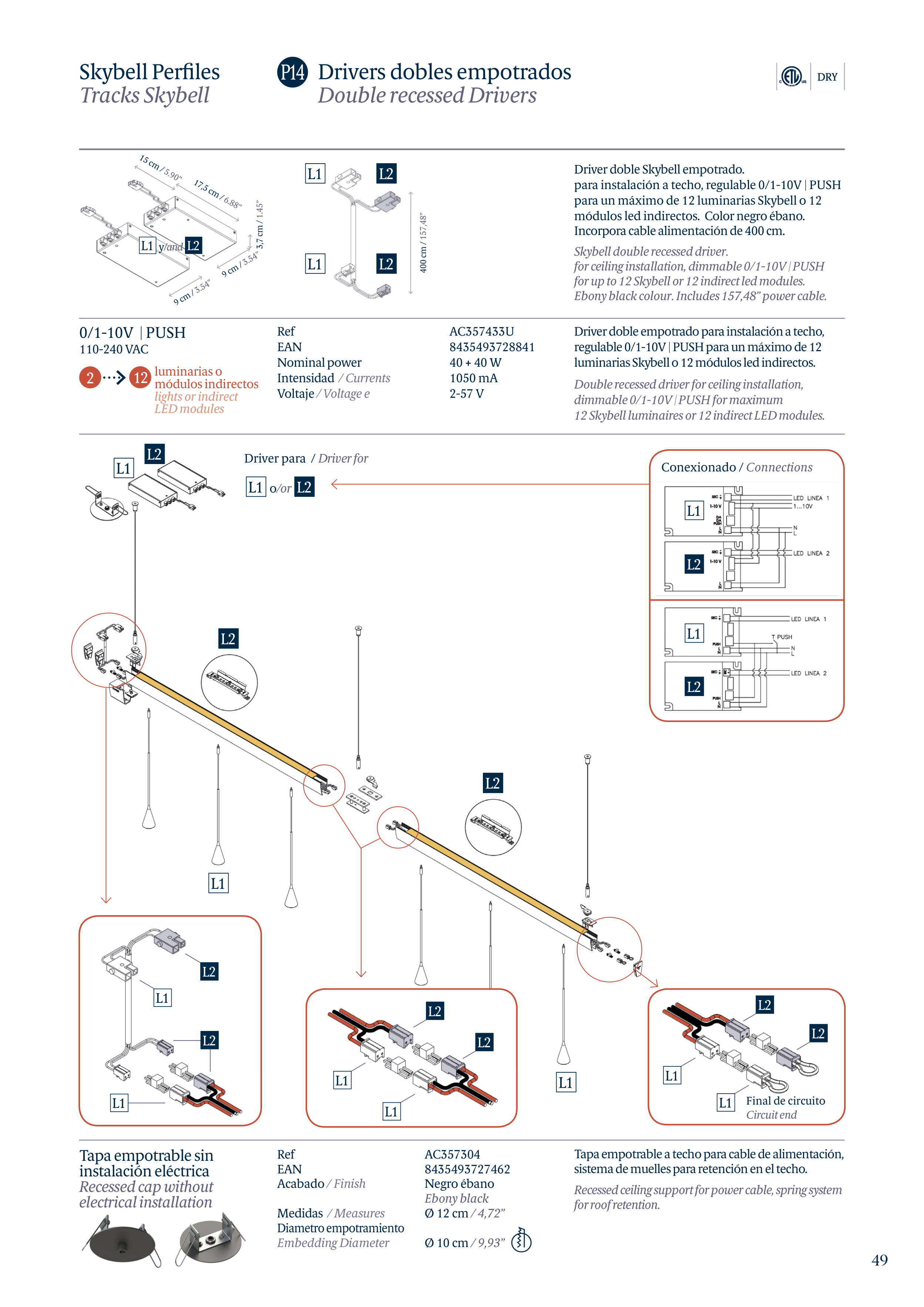

Driver doble Skybell empotrado.
para instalación a techo, regulable 0/1-10V | PUSH
para un máximo de 12 luminarias Skybell o 12
módulos led indirectos. Color negro ébano.
Incorpora cable alimentación de 400 cm.
Skybell double recessed driver.
for ceiling installation, dimmable 0/1-10V | PUSH
for up to 12 Skybell or 12 indirect led modules.
Ebony black colour. Includes 157,48” power cable.
Drivers dobles empotrados
Double recessed Drivers
P14
Tapa empotrable a techo para cable de alimentación,
sistema de muelles para retención en el techo.
Recessed ceiling support for power cable, spring system
for roof retention.
Tapa empotrable sin
instalación eléctrica
Recessed cap without
electrical installation
Skybell Perfiles
Tracks Skybell
Driver doble empotrado para instalación a techo,
regulable 0/1-10V | PUSH para un máximo de 12
luminarias Skybell o 12 módulos led indirectos.
Double recessed driver for ceiling installation,
dimmable 0/1-10V | PUSH for maximum
12 Skybell luminaires or 12 indirect LED modules.
0/1-10V | PUSH
110-240 VAC
luminarias o
módulos indirectos
lights or indirect
LED modules
12
2
Driver para / Driver for
9 cm / 3.54”
3,7 cm / 1.45”
17,5 cm / 6.88”
15 cm / 5.90”
L2
L1
9 cm / 3.54”
L1
L1
L2
L2
Final de circuito
Circuit end
L1
L1
L2
L2
L1
L1
L2
L2
L2
L1
L2
L1
Conexionado / Connections
L2
L1
L2
L1
L2
L1
400 cm / 157,48”
L2
L1
DRY
DRY
L2
L1 y/and
L2
L1 o/or
Ref
AC357304
EAN
8435493727462
Acabado / Finish
Negro ébano
Ebony black
Medidas / Measures
Ø 12 cm / 4,72”
Diametro empotramiento
Embedding Diameter
Ø 10 cm / 9,93”
Ref
AC357433U
EAN
8435493728841
Nominal power
40 + 40 W
Intensidad / Currents
1050 mA
Voltaje / Voltage e
2-57 V
