The pool column in the heated version guarantees safety for the user in the event
of accidental loss of insulation towards earth.
The heating cable (blue) of the pipes, equipped with a Schuko plug, is in Class I
(main and additional insulation on the conductors + earthing).
It complies with the standards:
• DIN EN 60355-1 (VDE 0700-1): 2020-208-11
• EN 60355-1: 2012+AC+A11+A13+A1+A2+A14:2019.
It delivers a maximum power in the heating phase of 40W (10W for each linear
meter of heating cable).
Having a rated current lower than 32A, it must be protected by a residual current
device having a rated residual current Idn≤ 30mA.

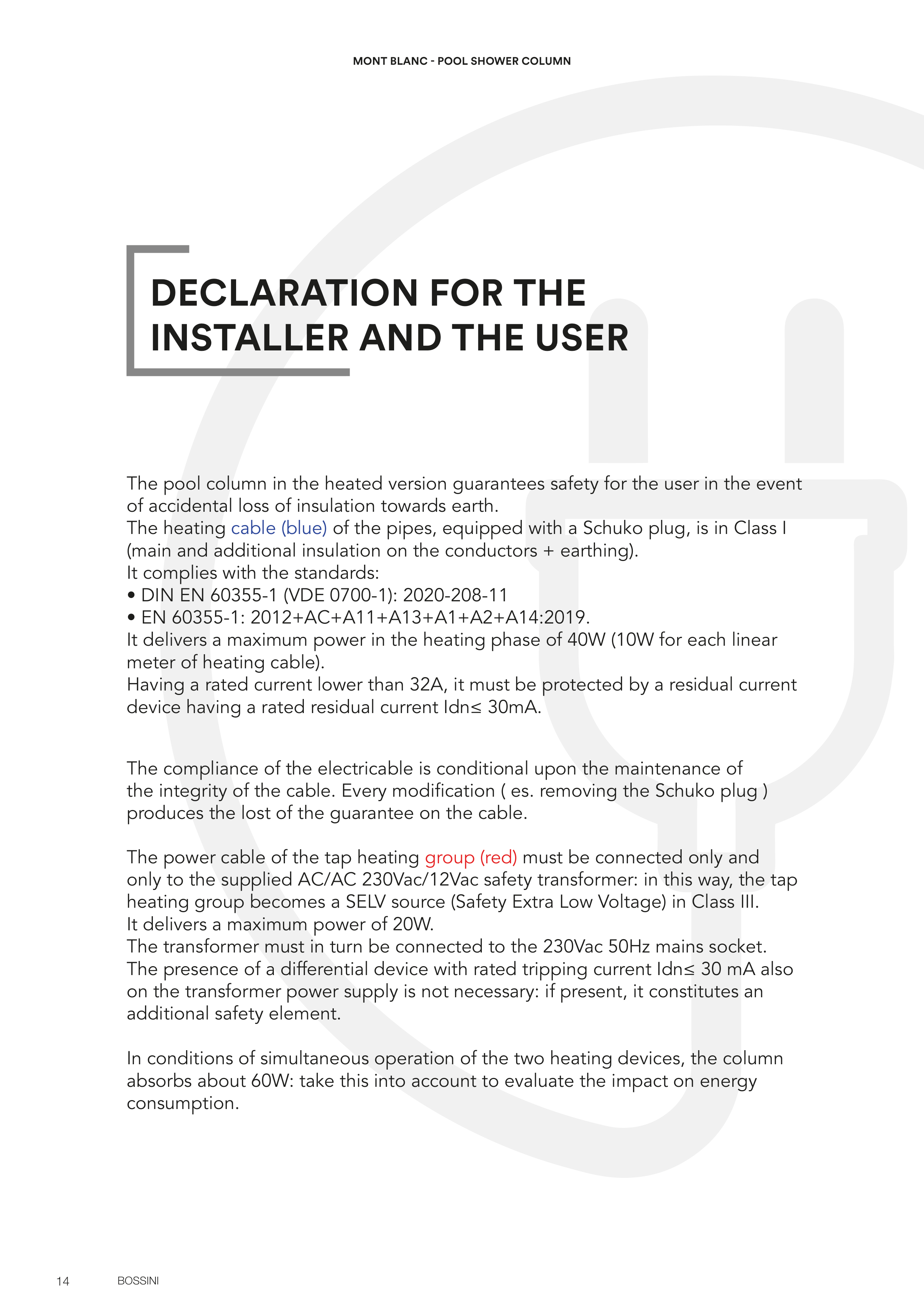

DECLARATION FOR THE
INSTALLER AND THE USER
The power cable of the tap heating group (red) must be connected only and
only to the supplied AC/AC 230Vac/12Vac safety transformer: in this way, the tap
heating group becomes a SELV source (Safety Extra Low Voltage) in Class III.
It delivers a maximum power of 20W.
The transformer must in turn be connected to the 230Vac 50Hz mains socket.
The presence of a differential device with rated tripping current Idn≤ 30 mA also
on the transformer power supply is not necessary: if present, it constitutes an
additional safety element.
In conditions of simultaneous operation of the two heating devices, the column
absorbs about 60W: take this into account to evaluate the impact on energy
consumption.
The compliance of the electricable is conditional upon the maintenance of
the integrity of the cable. Every modification ( es. removing the Schuko plug )
produces the lost of the guarantee on the cable.
