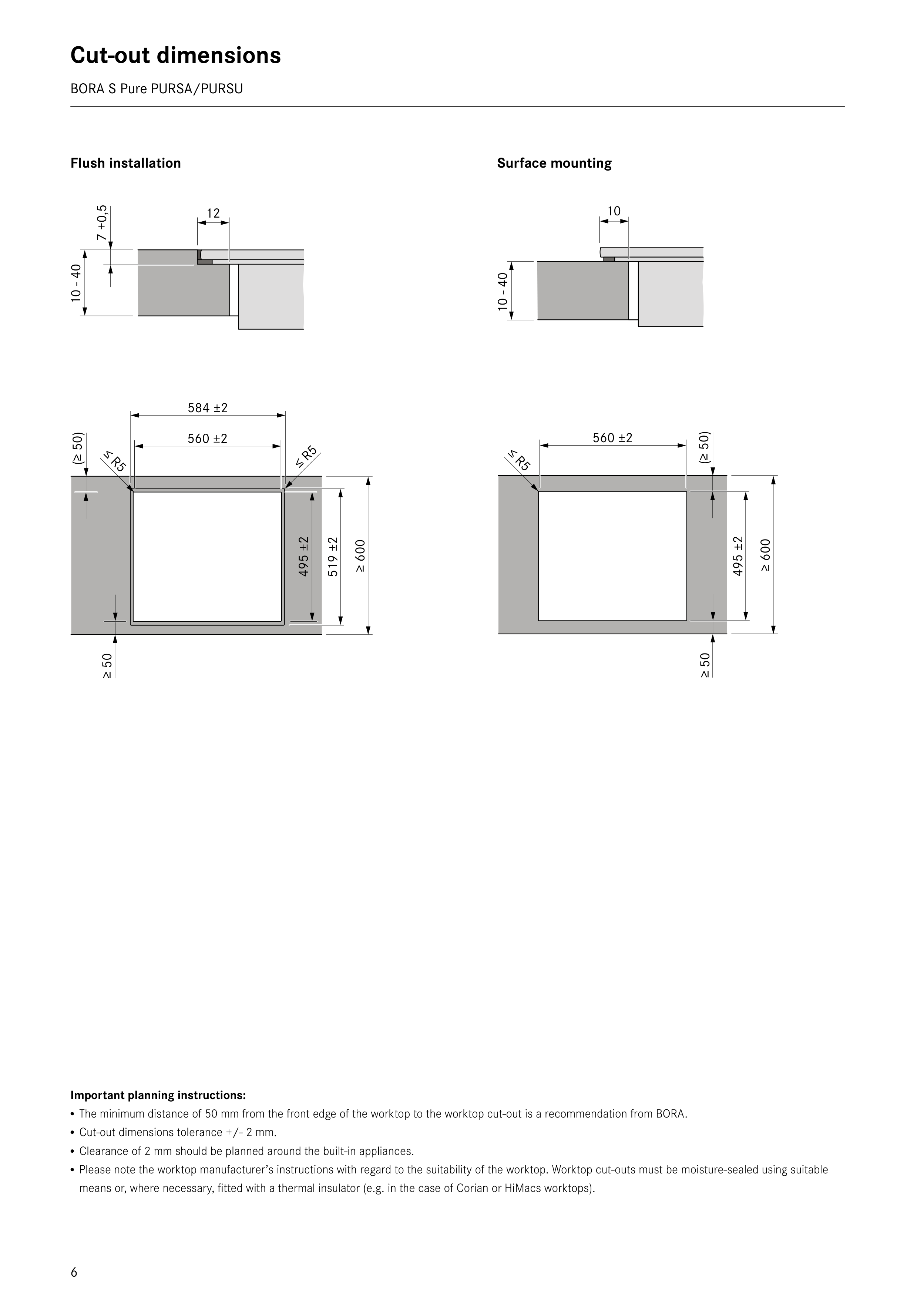

Cut-out dimensions
BORA S Pure PURSA/PURSU
Flush installation
Important planning instructions:
●
● The minimum distance of 50 mm from the front edge of the worktop to the worktop cut-out is a recommendation from BORA.
●
● Cut-out dimensions tolerance +/- 2 mm.
●
● Clearance of 2 mm should be planned around the built-in appliances.
●
● Please note the worktop manufacturer’s instructions with regard to the suitability of the worktop. Worktop cut-outs must be moisture-sealed using suitable
means or, where necessary, fitted with a thermal insulator (e.g. in the case of Corian or HiMacs worktops).
Surface mounting
