4
6
552
199
561
487
496
Ø140
Ø175
580
515
200
(257,5)
R3
Ø175
Ø210
Ø95
Technical data
Multiphase supply voltage
380 – 415 V 2N/3N
Single-phase supply voltage
220 – 240 V
Frequency
50 / 60 Hz
Maximum power consumption
7,25 kW
Three-phase power supply/fuse protection
3 x 16 A (standard connection)
Two-phase power supply/fuse protection
2 x 16 A
Single-phase power supply/fuse protection
1 x 32 A (1 x 20 A / 1 x 16 A)
Dimensions (width x depth x height)
580 x 515 x 199 mm
Weight (incl. accessories/packaging)
ca. 20 kg
Surface material
Glass ceramic
Cooktop extractor power levels
1 – 9, P
Cooktop power levels
1 – 9, P
duct connection
BORA Ecotube
Front left cooking zone output
400 W
Front right cooking zone output
2300 W
Rear left cooking zone output
900 W
Rear right cooking zone output
1400 W
Front left cooking zone power setting output
600 W
Front right cooking zone power setting output 3000 W
Rear left cooking zone power setting output
1350 W
Rear right cooking zone power setting output
2100 W
Front left cooking zone size
Ø 95 mm
Front right cooking zone size
Ø 210 mm
Rear left cooking zone size
Ø 140 mm
Rear right cooking zone size
Ø 175 mm
Product description
●
● Intuitive sControl control
●
● Minimum volume
●
● Simple cleaning
●
● Integrated grease drip pan
●
● Optimum cooktop use
●
● Maximum storage space
●
● Ultra-compact design
●
● Automatic extractor control
●
● Large overflow tray
●
● Demo mode
Scope of delivery
●
● Induction cooktop with integrated cooktop extractor – exhaust air
●
● Air inlet nozzle black
●
● stainless steel grease filter
●
● operating and installation instructions
●
● sealing tape
●
● height adjustment plate set
●
● Housing cover power supply
●
● Installation accessories for the power supply
Accessories
●
● Air inlet nozzle black PUED
●
● Air inlet nozzle greige PUEDG
●
● Air inlet nozzle red PUEDR
●
● Air inlet nozzle jade green PUEDJ
●
● Air inlet nozzle orange PUEDO
●
● Air inlet nozzle blue PUEDB
●
● Stainless steel grease filter PUEF
●
● UDB25 sealing tape
●
● Air purification box PULB
product- and planning instructions
●
● The connection cable must be provided at the installation site
●
● Front power socket
●
● The BORA Ecotube duct system is optimally tailored to the BORA cooktop
extractors and guarantees 100% functionality and optimum performance
●
● Ensure sufficient ventilation of the area below the cooktop.
●
● Installation type: flush or surface-mounted
●
● The drawers and/or shelves in the floor unit must be removable for
maintenance and cleaning purposes
●
● Please note that induction-compatible cookware must be used on induction
cooktops
●
● The cooktop extractor system can be combined with all BORA sockets
●
● Not compatible with BORA universal extractors

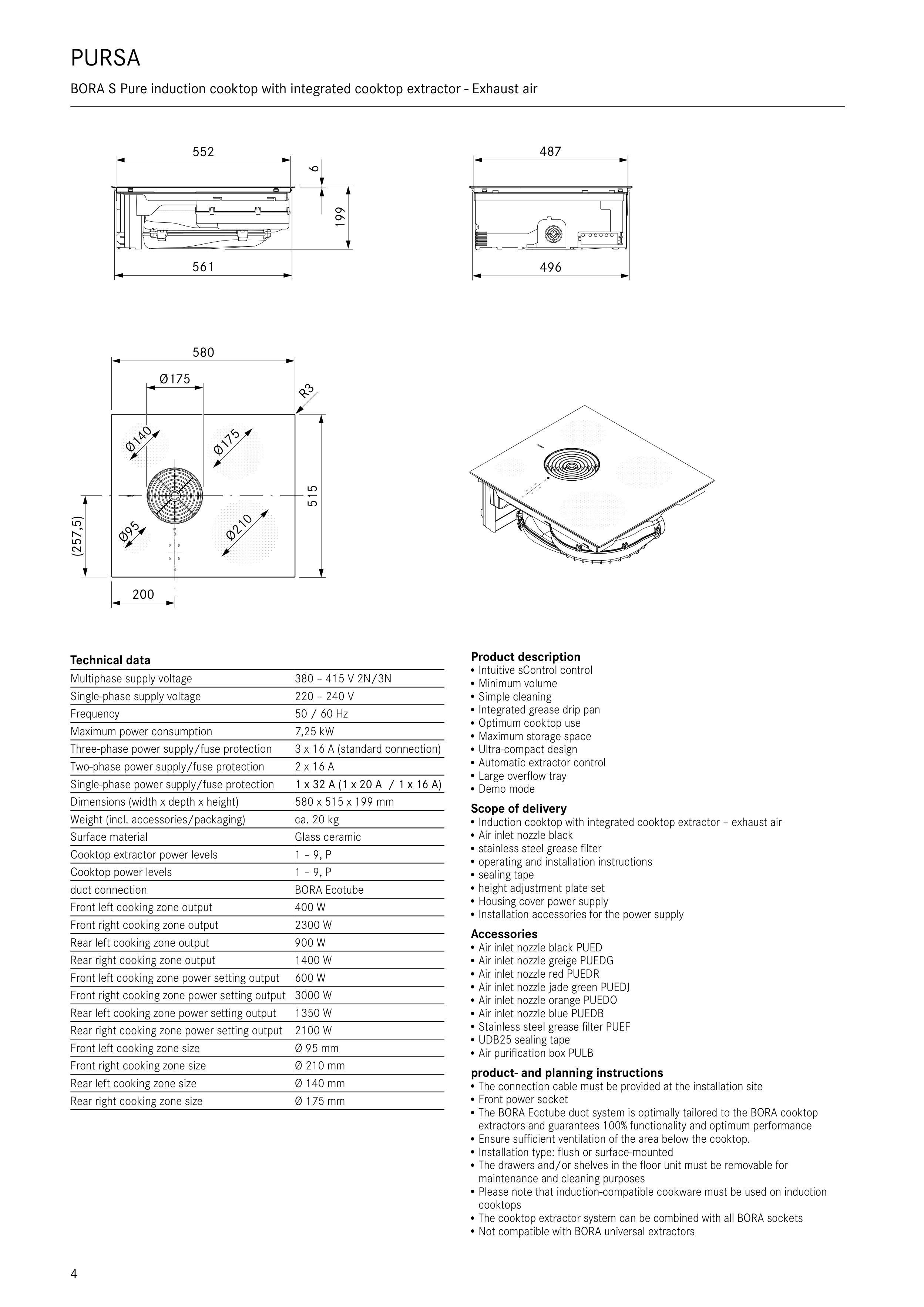

PURSA
BORA S Pure induction cooktop with integrated cooktop extractor - Exhaust air
