SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH NAYA 5

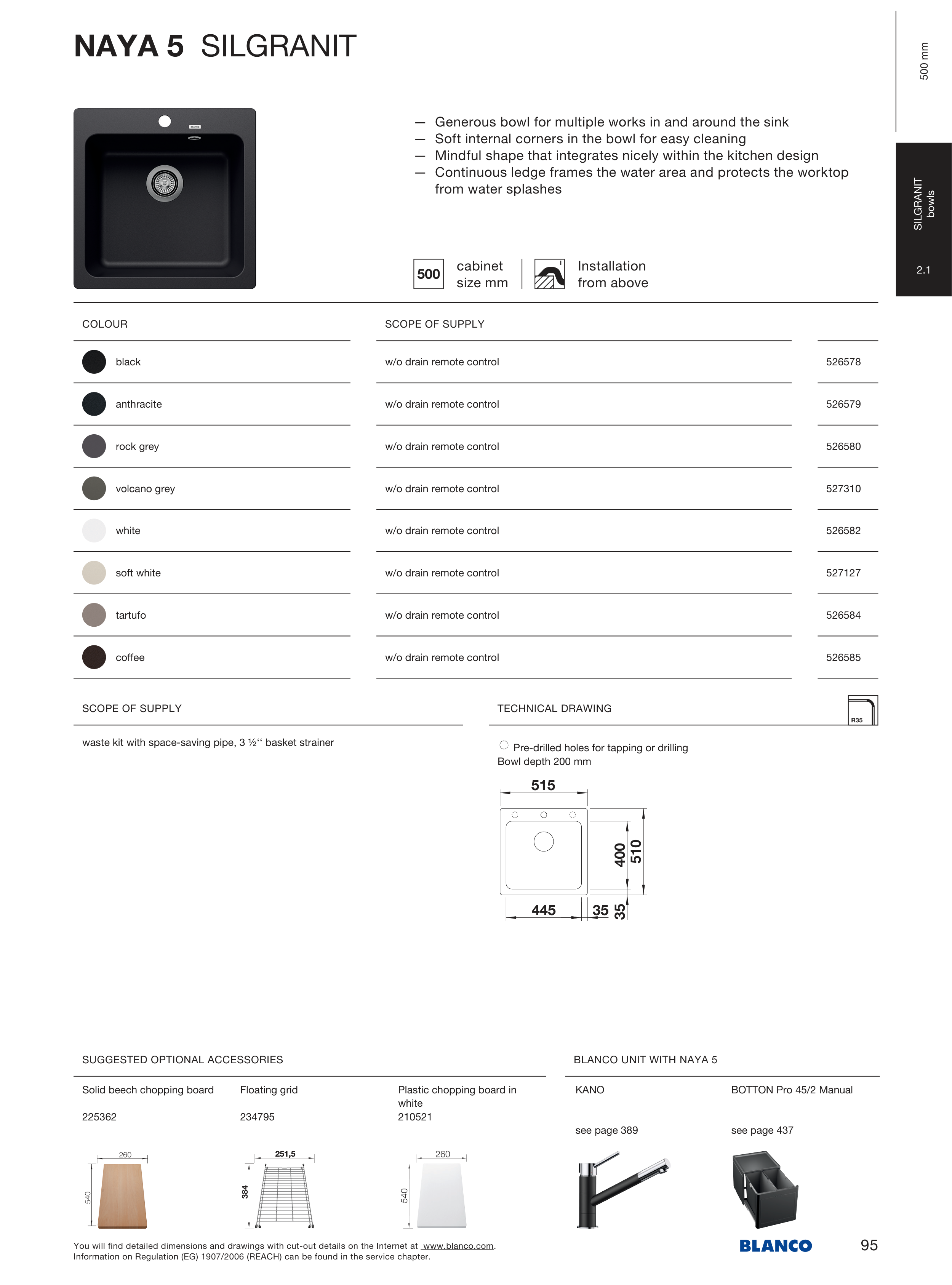

NAYA 5 SILGRANIT
— Generous bowl for multiple works in and around the sink
— Soft internal corners in the bowl for easy cleaning
— Mindful shape that integrates nicely within the kitchen design
— Continuous ledge frames the water area and protects the worktop
from water splashes
cabinet
size mm
Installation
from above
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 3 ½‘‘ basket strainer
35
35
510
400
445
515
Pre-drilled holes for tapping or drilling
Bowl depth 200 mm
COLOUR
SCOPE OF SUPPLY
black
w/o drain remote control
526 578
anthracite
w/o drain remote control
526 579
rock grey
w/o drain remote control
526 580
volcano grey
w/o drain remote control
527 310
white
w/o drain remote control
526 582
soft white
w/o drain remote control
527 127
tartufo
w/o drain remote control
526 584
coffee
w/o drain remote control
526 585
Solid beech chopping board
225 362
540
260
Floating grid
234 795
251,5
251,5
384
Plastic chopping board in
white
210 521
540
KANO
see page 389
BOTTON Pro 45/2 Manual
see page 437
500 mm
SILGRANIT
bowls
2.1
95
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
