SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH PLEON 5

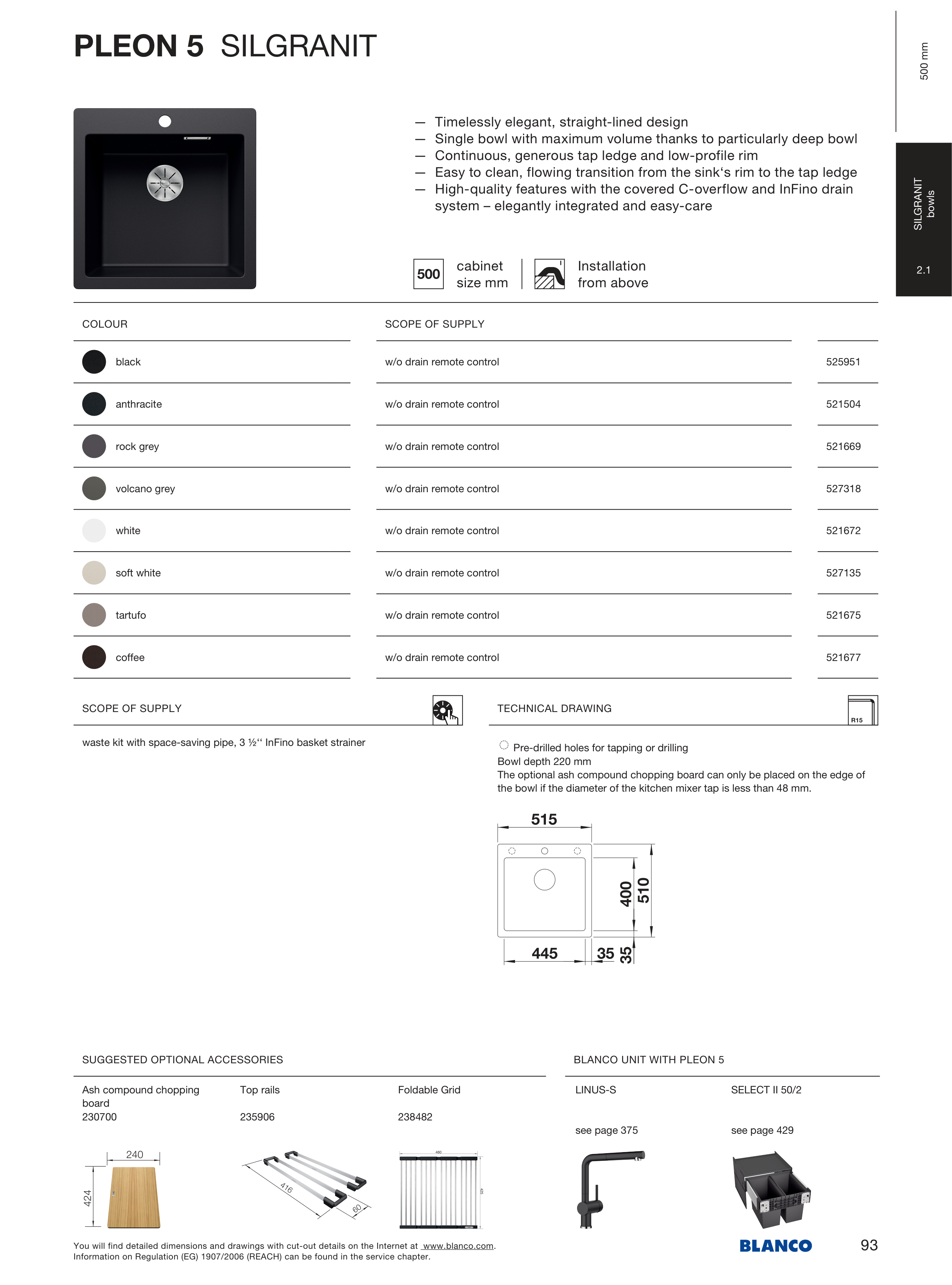

PLEON 5 SILGRANIT
— Timelessly elegant, straight-lined design
— Single bowl with maximum volume thanks to particularly deep bowl
— Continuous, generous tap ledge and low-profile rim
— Easy to clean, flowing transition from the sink‘s rim to the tap ledge
— High-quality features with the covered C-overflow and InFino drain
system – elegantly integrated and easy-care
cabinet
size mm
Installation
from above
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 3 ½‘‘ InFino basket strainer
Pre-drilled holes for tapping or drilling
Bowl depth 220 mm
The optional ash compound chopping board can only be placed on the edge of
the bowl if the diameter of the kitchen mixer tap is less than 48 mm.
COLOUR
SCOPE OF SUPPLY
black
w/o drain remote control
525 951
anthracite
w/o drain remote control
521 504
rock grey
w/o drain remote control
521 669
volcano grey
w/o drain remote control
527 318
white
w/o drain remote control
521 672
soft white
w/o drain remote control
527 135
tartufo
w/o drain remote control
521 675
coffee
w/o drain remote control
521 677
Ash compound chopping
board
230 700
Top rails
235 906
Foldable Grid
238 482
LINUS-S
see page 375
SELECT II 50/2
see page 429
500 mm
SILGRANIT
bowls
2.1
93
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
