SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH METRA 6

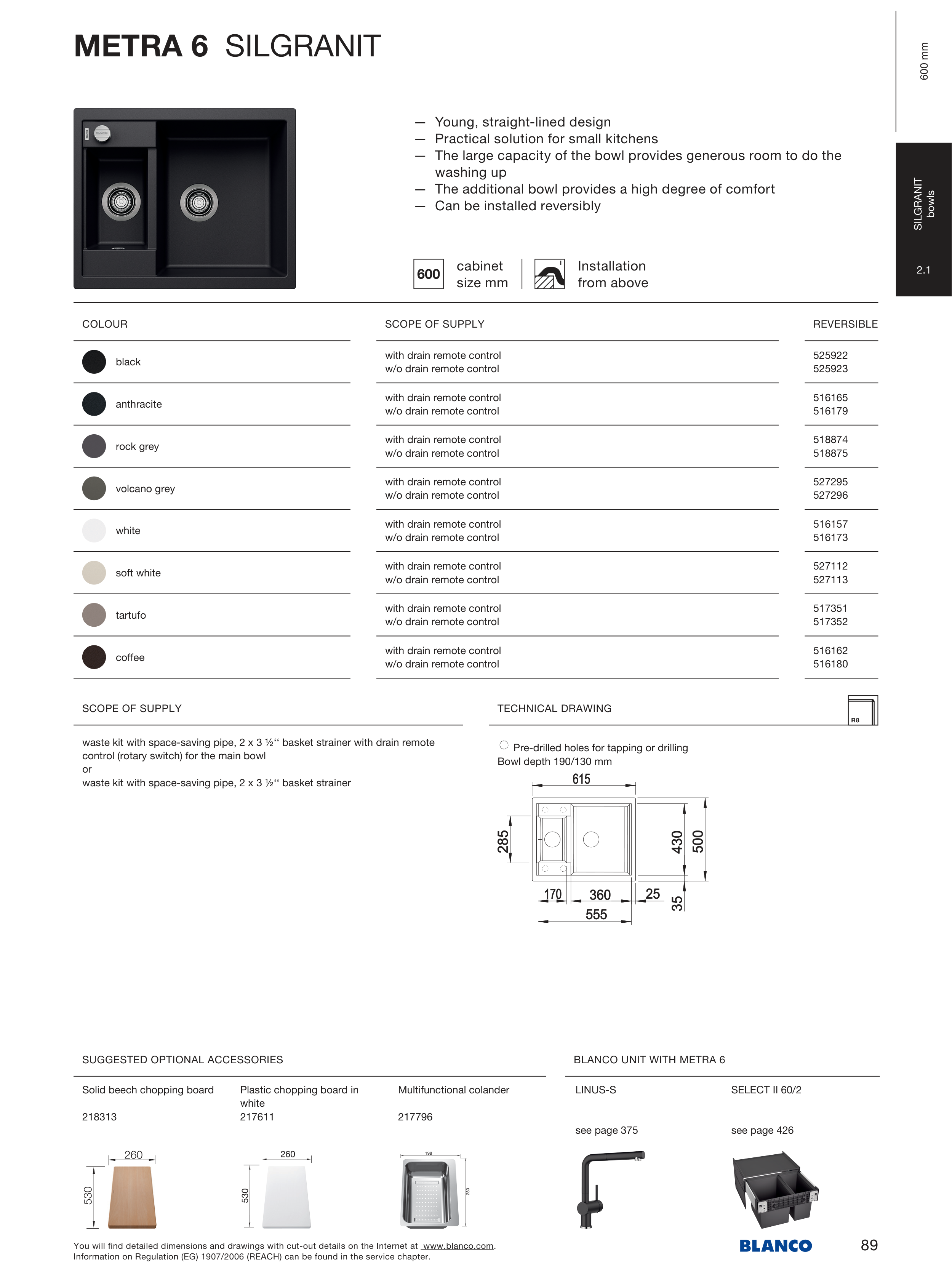

METRA 6 SILGRANIT
— Young, straight-lined design
— Practical solution for small kitchens
— The large capacity of the bowl provides generous room to do the
washing up
— The additional bowl provides a high degree of comfort
— Can be installed reversibly
cabinet
size mm
Installation
from above
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 2 x 3 ½‘‘ basket strainer with drain remote
control (rotary switch) for the main bowl
or
waste kit with space-saving pipe, 2 x 3 ½‘‘ basket strainer
Pre-drilled holes for tapping or drilling
Bowl depth 190/130 mm
COLOUR
SCOPE OF SUPPLY
REVERSIBLE
black
with drain remote control
w/o drain remote control
525 922
525 923
anthracite
with drain remote control
w/o drain remote control
516 165
516 179
rock grey
with drain remote control
w/o drain remote control
518 874
518 875
volcano grey
with drain remote control
w/o drain remote control
527 295
527 296
white
with drain remote control
w/o drain remote control
516 157
516 173
soft white
with drain remote control
w/o drain remote control
527 112
527 113
tartufo
with drain remote control
w/o drain remote control
517 351
517 352
coffee
with drain remote control
w/o drain remote control
516 162
516 180
Solid beech chopping board
218 313
Plastic chopping board in
white
217 611
Multifunctional colander
217 796
280
198
LINUS-S
see page 375
SELECT II 60/2
see page 426
600 mm
SILGRANIT
bowls
2.1
89
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
