SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH SUBLINE-U

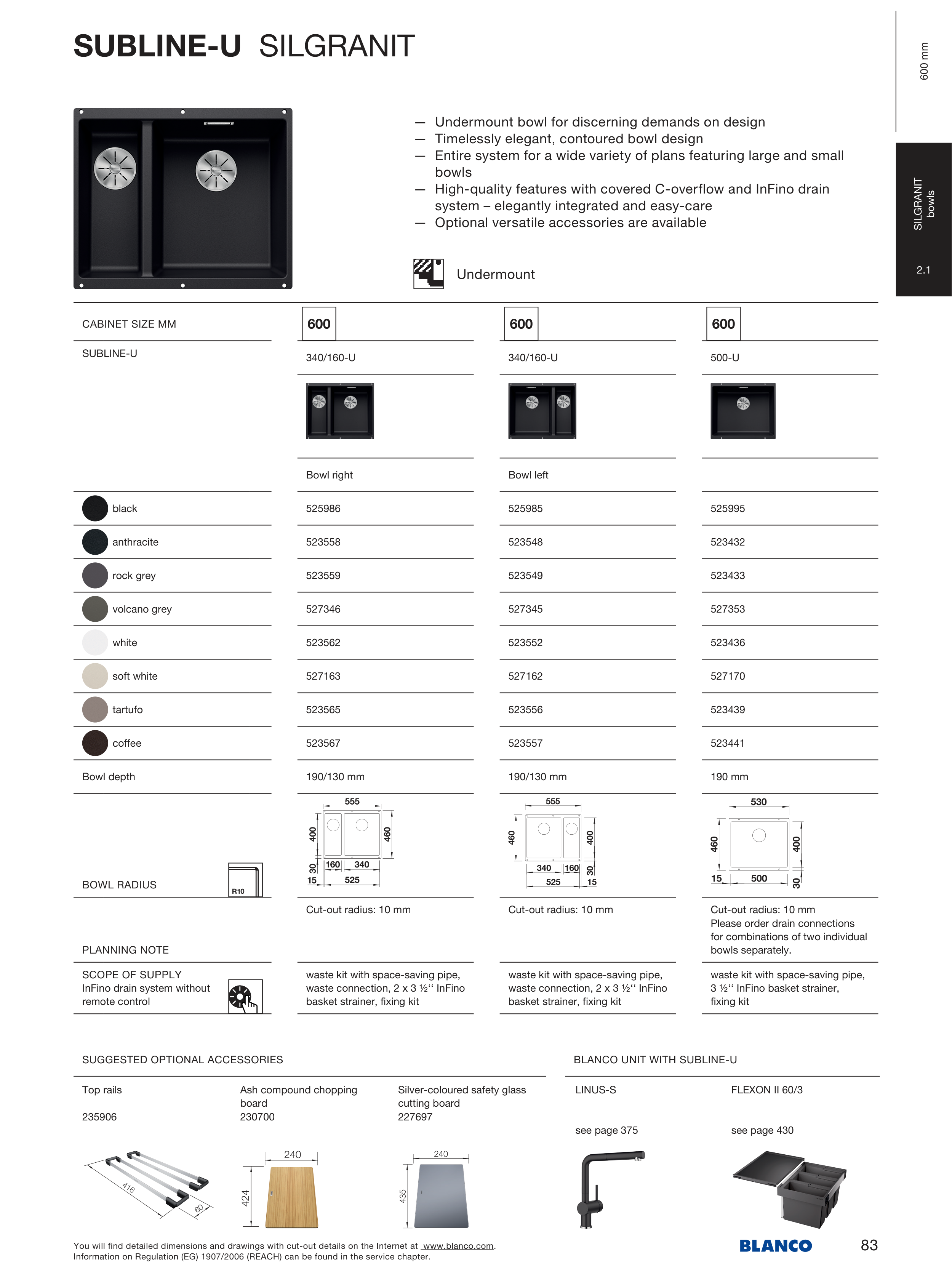

SUBLINE-U SILGRANIT
— Undermount bowl for discerning demands on design
— Timelessly elegant, contoured bowl design
— Entire system for a wide variety of plans featuring large and small
bowls
— High-quality features with covered C-overflow and InFino drain
system – elegantly integrated and easy-care
— Optional versatile accessories are available
Undermount
CABINET SIZE MM
SUBLINE-U
340/160-U
340/160-U
500-U
Bowl right
Bowl left
black
525 986
525 985
525 995
anthracite
523 558
523 548
523 432
rock grey
523 559
523 549
523 433
volcano grey
527 346
527 345
527 353
white
523 562
523 552
523 436
soft white
527 163
527 162
527 170
tartufo
523 565
523 556
523 439
coffee
523 567
523 557
523 441
Bowl depth
190/130 mm
190/130 mm
190 mm
BOWL RADIUS
PLANNING NOTE
Cut-out radius: 10 mm
Cut-out radius: 10 mm
Cut-out radius: 10 mm
Please order drain connections
for combinations of two individual
bowls separately.
SCOPE OF SUPPLY
InFino drain system without
remote control
waste kit with space-saving pipe,
waste connection, 2 x 3 ½‘‘ InFino
basket strainer, fixing kit
waste kit with space-saving pipe,
waste connection, 2 x 3 ½‘‘ InFino
basket strainer, fixing kit
waste kit with space-saving pipe,
3 ½‘‘ InFino basket strainer,
fixing kit
Top rails
235 906
Ash compound chopping
board
230 700
Silver-coloured safety glass
cutting board
227 697
LINUS-S
see page 375
FLEXON II 60/3
see page 430
600 mm
SILGRANIT
bowls
2.1
83
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
