SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH ETAGON 500-U

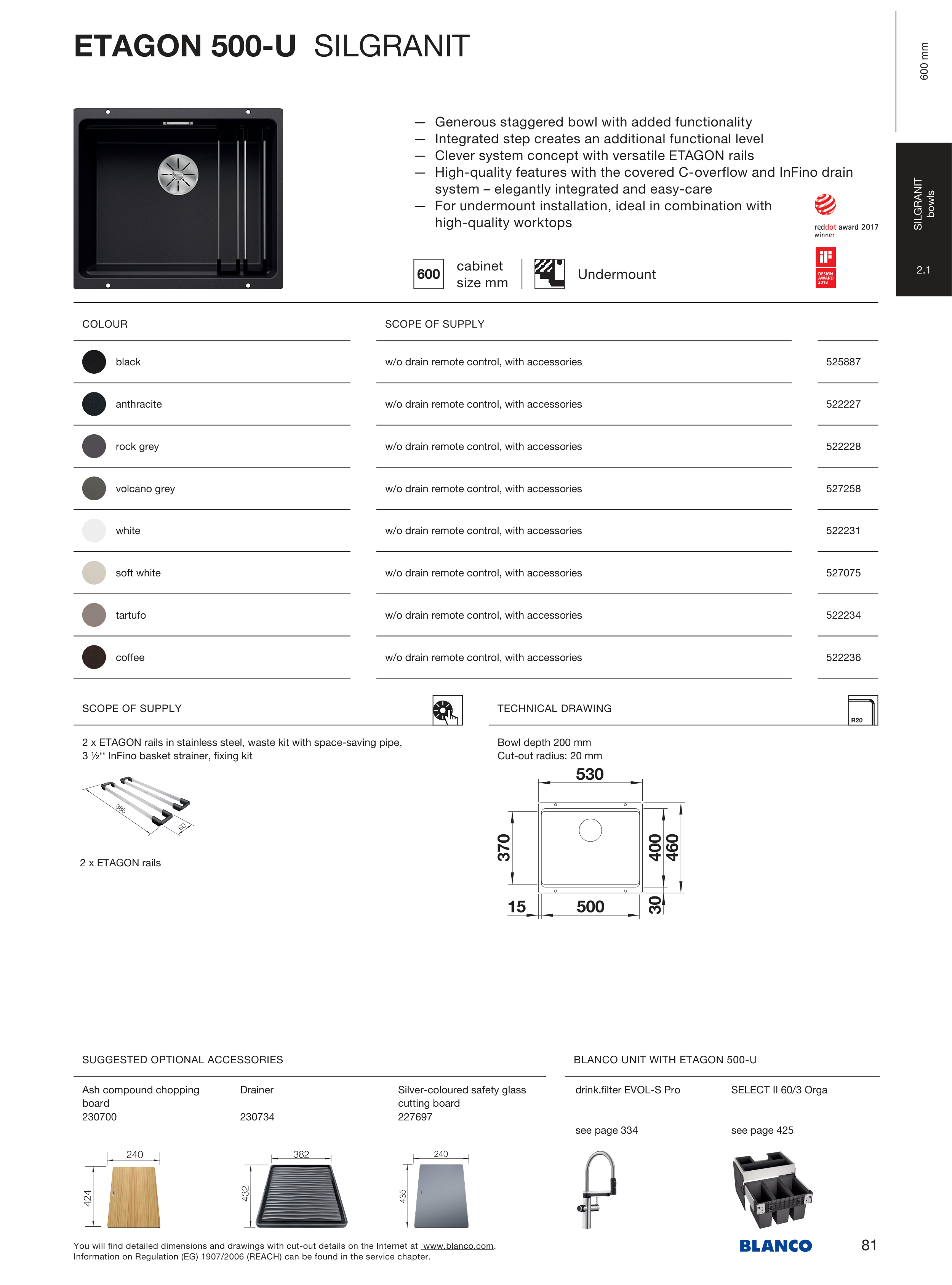

ETAGON 500-U SILGRANIT
— Generous staggered bowl with added functionality
— Integrated step creates an additional functional level
— Clever system concept with versatile ETAGON rails
— High-quality features with the covered C-overflow and InFino drain
system – elegantly integrated and easy-care
— For undermount installation, ideal in combination with
high-quality worktops
cabinet
size mm
Undermount
SCOPE OF SUPPLY
TECHNICAL DRAWING
2 x ETAGON rails in stainless steel, waste kit with space-saving pipe,
3 ½‘‘ InFino basket strainer, fixing kit
Bowl depth 200 mm
Cut-out radius: 20 mm
COLOUR
SCOPE OF SUPPLY
black
w/o drain remote control, with accessories
525 887
anthracite
w/o drain remote control, with accessories
522 227
rock grey
w/o drain remote control, with accessories
522 228
volcano grey
w/o drain remote control, with accessories
527 258
white
w/o drain remote control, with accessories
522 231
soft white
w/o drain remote control, with accessories
527 075
tartufo
w/o drain remote control, with accessories
522 234
coffee
w/o drain remote control, with accessories
522 236
2 x ETAGON rails
Ash compound chopping
board
230 700
Drainer
230 734
Silver-coloured safety glass
cutting board
227 697
drink.filter EVOL-S Pro
see page 334
SELECT II 60/3 Orga
see page 425
600 mm
SILGRANIT
bowls
2.1
81
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
