SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH NAYA 8

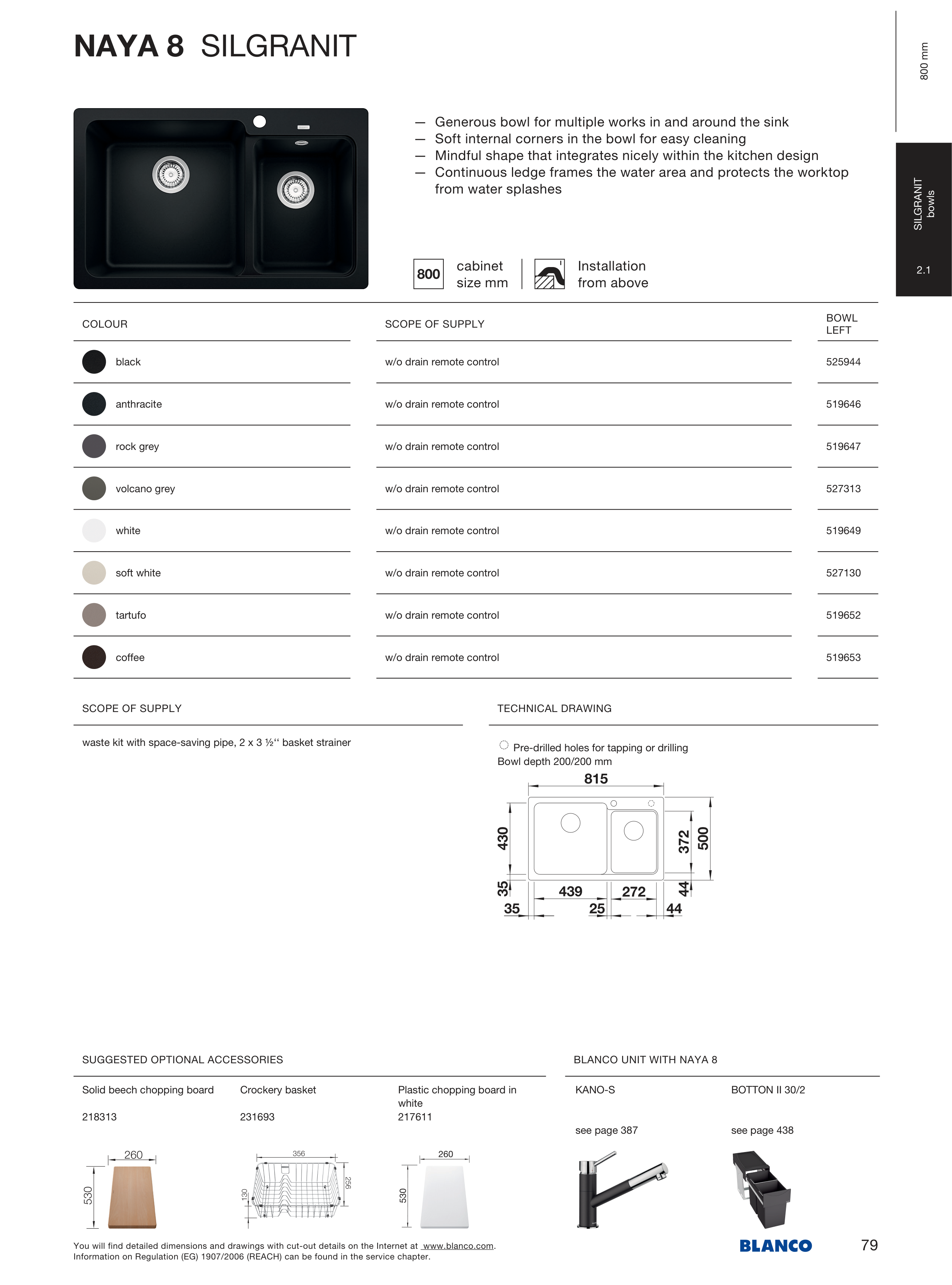

NAYA 8 SILGRANIT
— Generous bowl for multiple works in and around the sink
— Soft internal corners in the bowl for easy cleaning
— Mindful shape that integrates nicely within the kitchen design
— Continuous ledge frames the water area and protects the worktop
from water splashes
cabinet
size mm
Installation
from above
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 2 x 3 ½‘‘ basket strainer
Pre-drilled holes for tapping or drilling
Bowl depth 200/200 mm
COLOUR
SCOPE OF SUPPLY
BOWL
LEFT
black
w/o drain remote control
525 944
anthracite
w/o drain remote control
519 646
rock grey
w/o drain remote control
519 647
volcano grey
w/o drain remote control
527 313
white
w/o drain remote control
519 649
soft white
w/o drain remote control
527 130
tartufo
w/o drain remote control
519 652
coffee
w/o drain remote control
519 653
Solid beech chopping board
218 313
Crockery basket
231 693
Plastic chopping board in
white
217 611
KANO-S
see page 387
BOTTON II 30/2
see page 438
800 mm
SILGRANIT
bowls
2.1
79
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
