SUGGESTED OPTIONAL ACCESSORIES

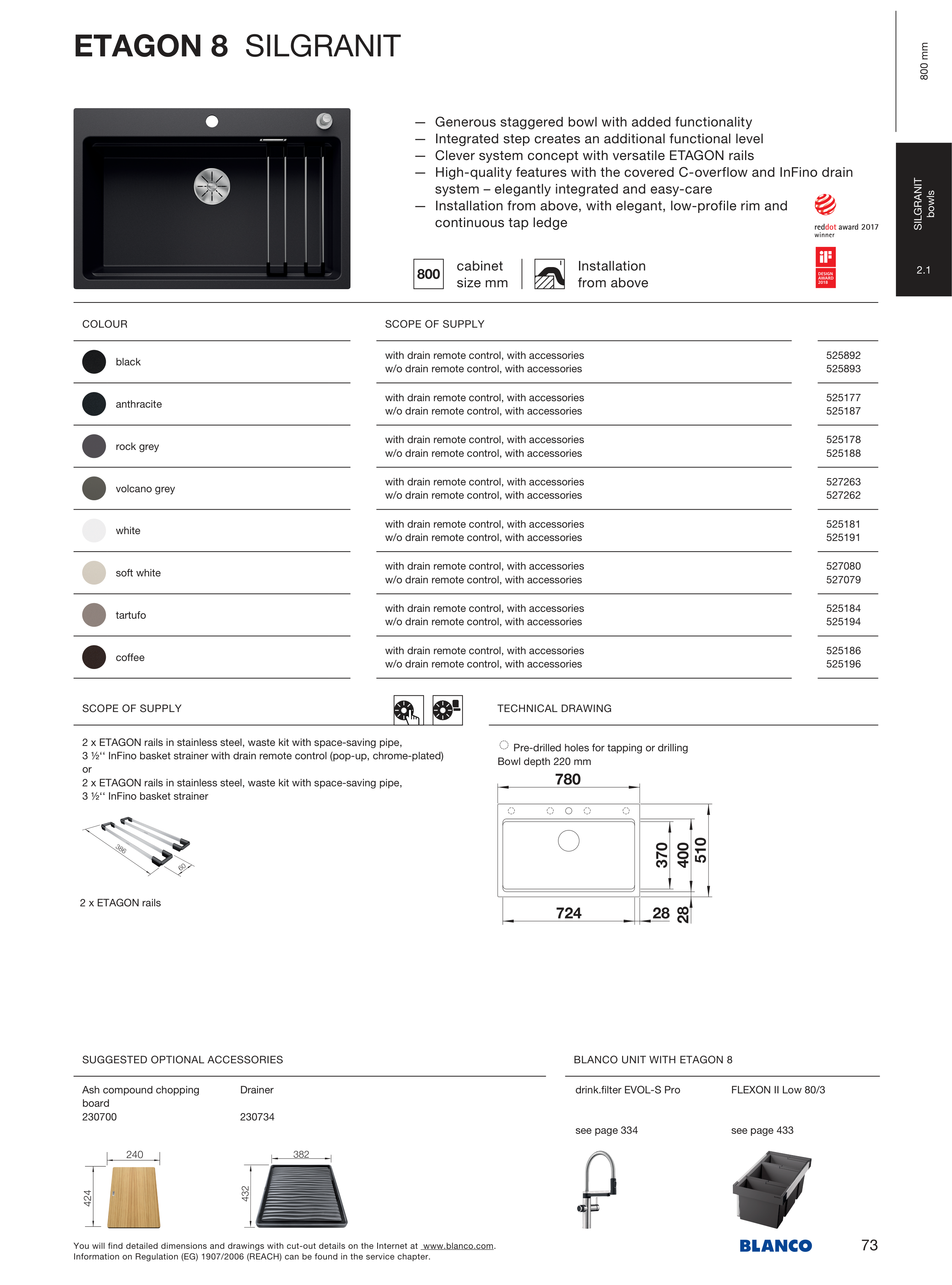

BLANCO UNIT WITH ETAGON 8
ETAGON 8 SILGRANIT
— Generous staggered bowl with added functionality
— Integrated step creates an additional functional level
— Clever system concept with versatile ETAGON rails
— High-quality features with the covered C-overflow and InFino drain
system – elegantly integrated and easy-care
— Installation from above, with elegant, low-profile rim and
continuous tap ledge
cabinet
size mm
Installation
from above
SCOPE OF SUPPLY
TECHNICAL DRAWING
2 x ETAGON rails in stainless steel, waste kit with space-saving pipe,
3 ½‘‘ InFino basket strainer with drain remote control (pop-up, chrome-plated)
or
2 x ETAGON rails in stainless steel, waste kit with space-saving pipe,
3 ½‘‘ InFino basket strainer
Pre-drilled holes for tapping or drilling
Bowl depth 220 mm
COLOUR
SCOPE OF SUPPLY
black
with drain remote control, with accessories
w/o drain remote control, with accessories
525 892
525 893
anthracite
with drain remote control, with accessories
w/o drain remote control, with accessories
525 177
525 187
rock grey
with drain remote control, with accessories
w/o drain remote control, with accessories
525 178
525 188
volcano grey
with drain remote control, with accessories
w/o drain remote control, with accessories
527 263
527 262
white
with drain remote control, with accessories
w/o drain remote control, with accessories
525 181
525 191
soft white
with drain remote control, with accessories
w/o drain remote control, with accessories
527 080
527 079
tartufo
with drain remote control, with accessories
w/o drain remote control, with accessories
525 184
525 194
coffee
with drain remote control, with accessories
w/o drain remote control, with accessories
525 186
525 196
2 x ETAGON rails
Ash compound chopping
board
230 700
Drainer
230 734
drink.filter EVOL-S Pro
see page 334
FLEXON II Low 80/3
see page 433
800 mm
SILGRANIT
bowls
2.1
73
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
