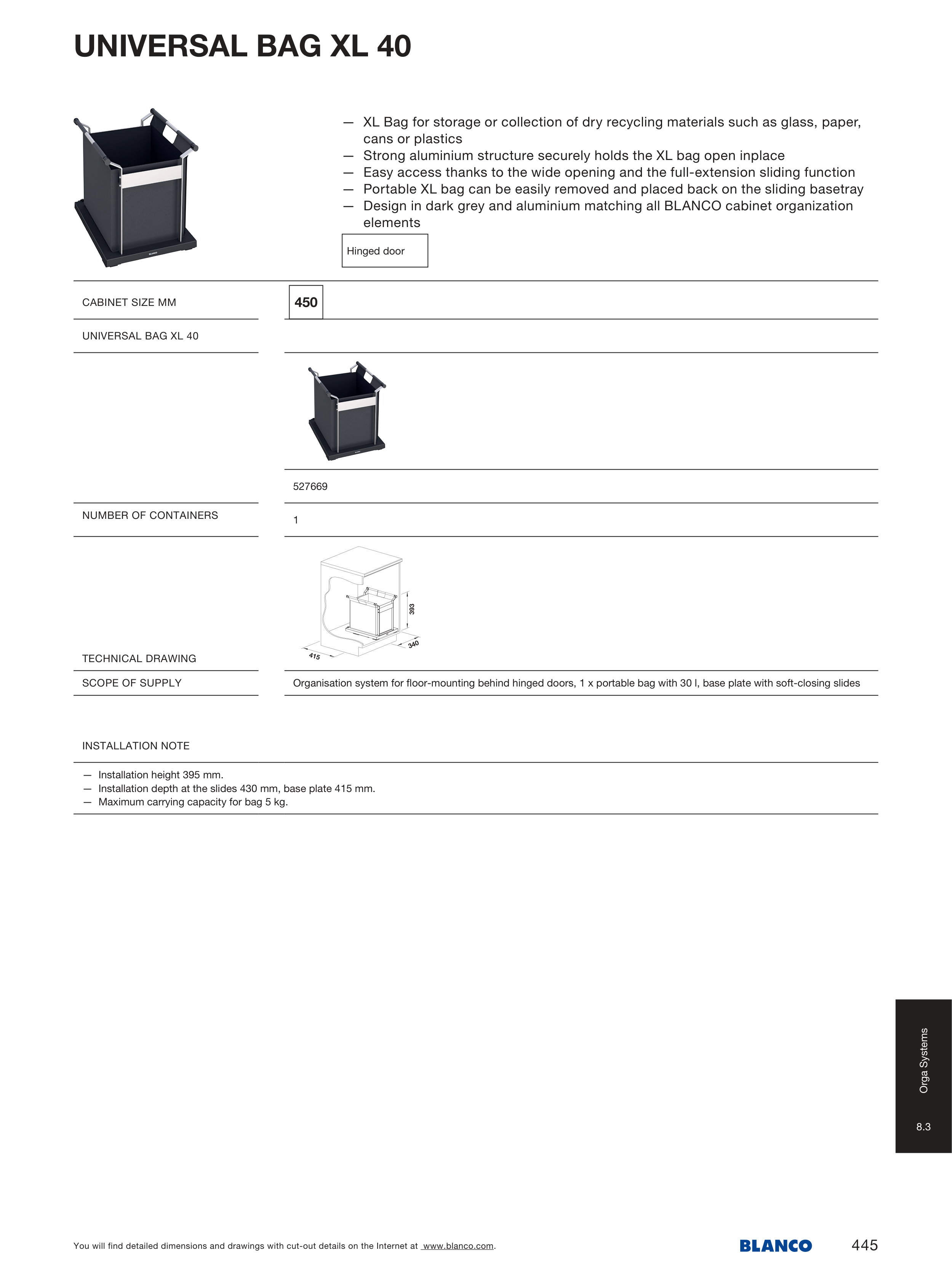

UNIVERSAL BAG XL 40
— XL Bag for storage or collection of dry recycling materials such as glass, paper,
cans or plastics
— Strong aluminium structure securely holds the XL bag open inplace
— Easy access thanks to the wide opening and the full-extension sliding function
— Portable XL bag can be easily removed and placed back on the sliding basetray
— Design in dark grey and aluminium matching all BLANCO cabinet organization
elements
Hinged door
CABINET SIZE MM
UNIVERSAL BAG XL 40
527 669
NUMBER OF CONTAINERS
1
TECHNICAL DRAWING
393
340
415
SCOPE OF SUPPLY
Organisation system for floor-mounting behind hinged doors, 1 x portable bag with 30 l, base plate with soft-closing slides
INSTALLATION NOTE
— Installation height 395 mm.
— Installation depth at the slides 430 mm, base plate 415 mm.
— Maximum carrying capacity for bag 5 kg.
Orga Systems
8.3
445
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
