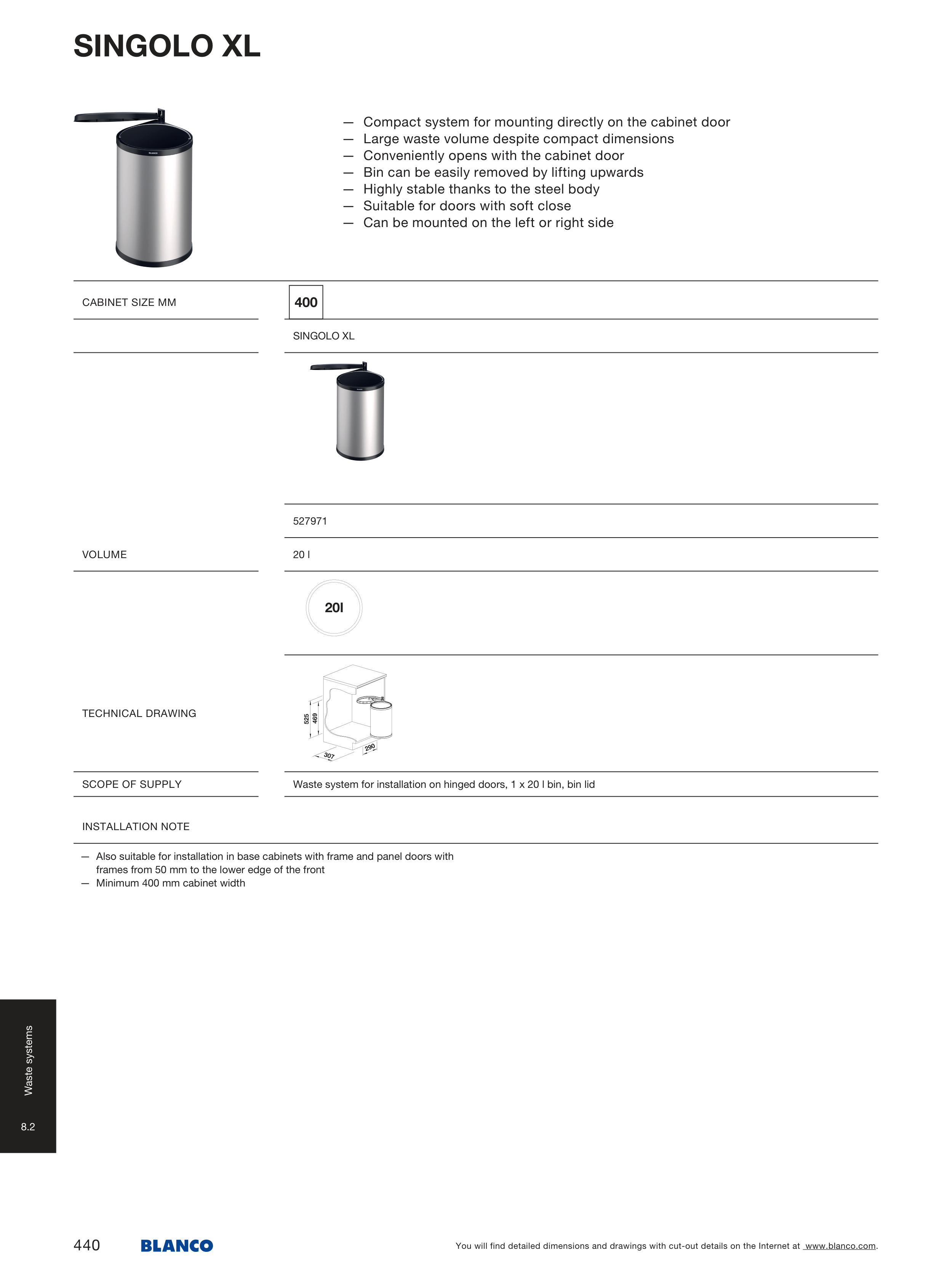

SINGOLO XL
— Compact system for mounting directly on the cabinet door
— Large waste volume despite compact dimensions
— Conveniently opens with the cabinet door
— Bin can be easily removed by lifting upwards
— Highly stable thanks to the steel body
— Suitable for doors with soft close
— Can be mounted on the left or right side
CABINET SIZE MM
SINGOLO XL
527 971
VOLUME
20 l
20l
TECHNICAL DRAWING
525
469
307
290
SCOPE OF SUPPLY
Waste system for installation on hinged doors, 1 x 20 l bin, bin lid
— Also suitable for installation in base cabinets with frame and panel doors with
frames from 50 mm to the lower edge of the front
— Minimum 400 mm cabinet width
INSTALLATION NOTE
Waste systems
8.2
440
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
