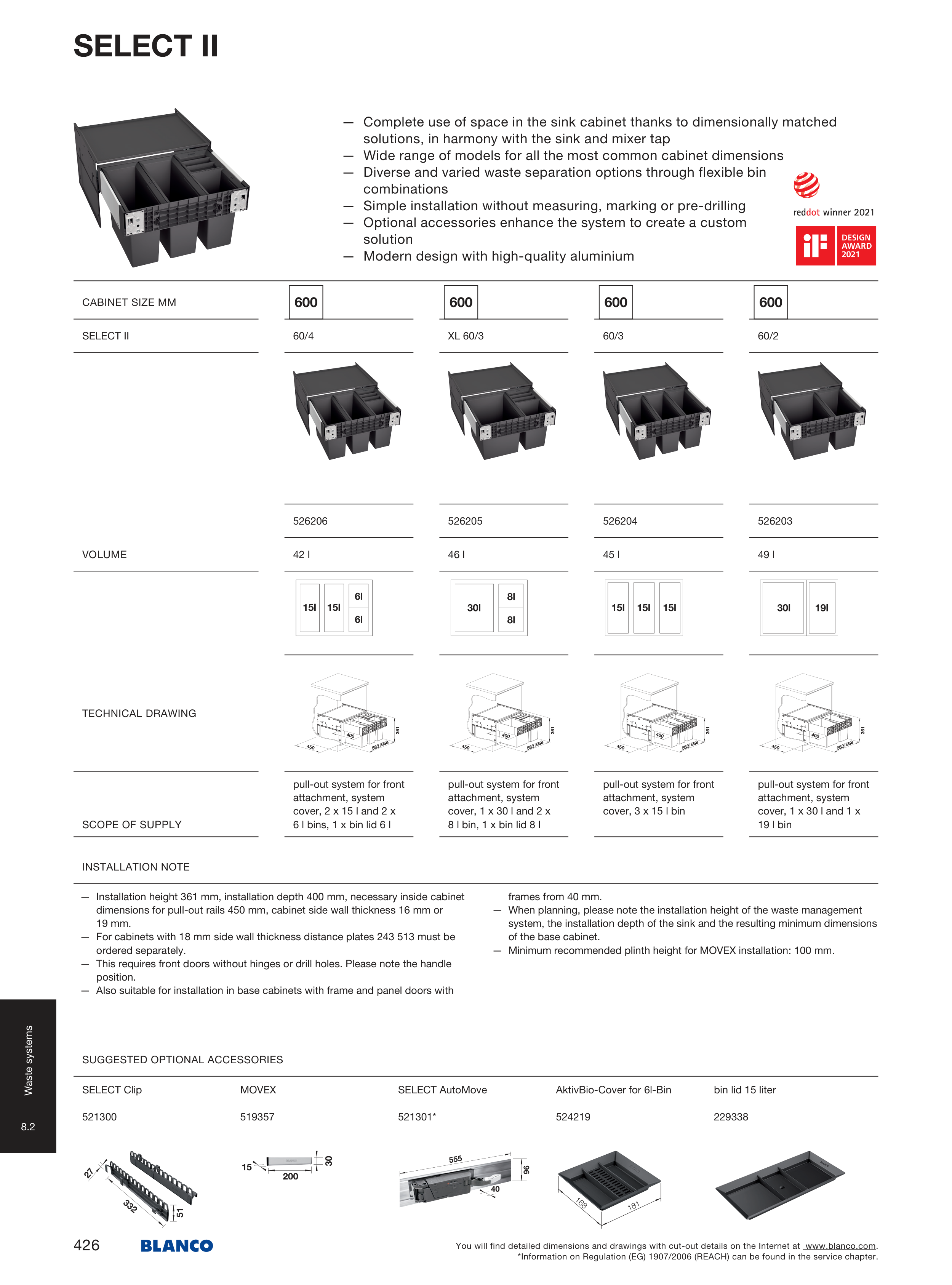

SELECT II
— Complete use of space in the sink cabinet thanks to dimensionally matched
solutions, in harmony with the sink and mixer tap
— Wide range of models for all the most common cabinet dimensions
— Diverse and varied waste separation options through flexible bin
combinations
— Simple installation without measuring, marking or pre-drilling
— Optional accessories enhance the system to create a custom
solution
— Modern design with high-quality aluminium
SUGGESTED OPTIONAL ACCESSORIES
CABINET SIZE MM
SELECT II
60/4
XL 60/3
60/3
60/2
526 206
526 205
526 204
526 203
VOLUME
42 l
46 l
45 l
49 l
TECHNICAL DRAWING
562/568
400
450
361
562/568
400
450
361
562/568
400
450
361
562/568
400
450
361
SCOPE OF SUPPLY
pull-out system for front
attachment, system
cover, 2 x 15 l and 2 x
6 l bins, 1 x bin lid 6 l
pull-out system for front
attachment, system
cover, 1 x 30 l and 2 x
8 l bin, 1 x bin lid 8 l
pull-out system for front
attachment, system
cover, 3 x 15 l bin
pull-out system for front
attachment, system
cover, 1 x 30 l and 1 x
19 l bin
— Installation height 361 mm, installation depth 400 mm, necessary inside cabinet
dimensions for pull-out rails 450 mm, cabinet side wall thickness 16 mm or
19 mm.
— For cabinets with 18 mm side wall thickness distance plates 243 513 must be
ordered separately.
— This requires front doors without hinges or drill holes. Please note the handle
position.
— Also suitable for installation in base cabinets with frame and panel doors with
frames from 40 mm.
— When planning, please note the installation height of the waste management
system, the installation depth of the sink and the resulting minimum dimensions
of the base cabinet.
— Minimum recommended plinth height for MOVEX installation: 100 mm.
INSTALLATION NOTE
SELECT Clip
521 300
332
27
MOVEX
519 357
200
15
30
SELECT AutoMove
521 301*
96
40
555
AktivBio-Cover for 6l-Bin
524 219
bin lid 15 liter
229 338
Waste systems
8.2
426
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
*Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
