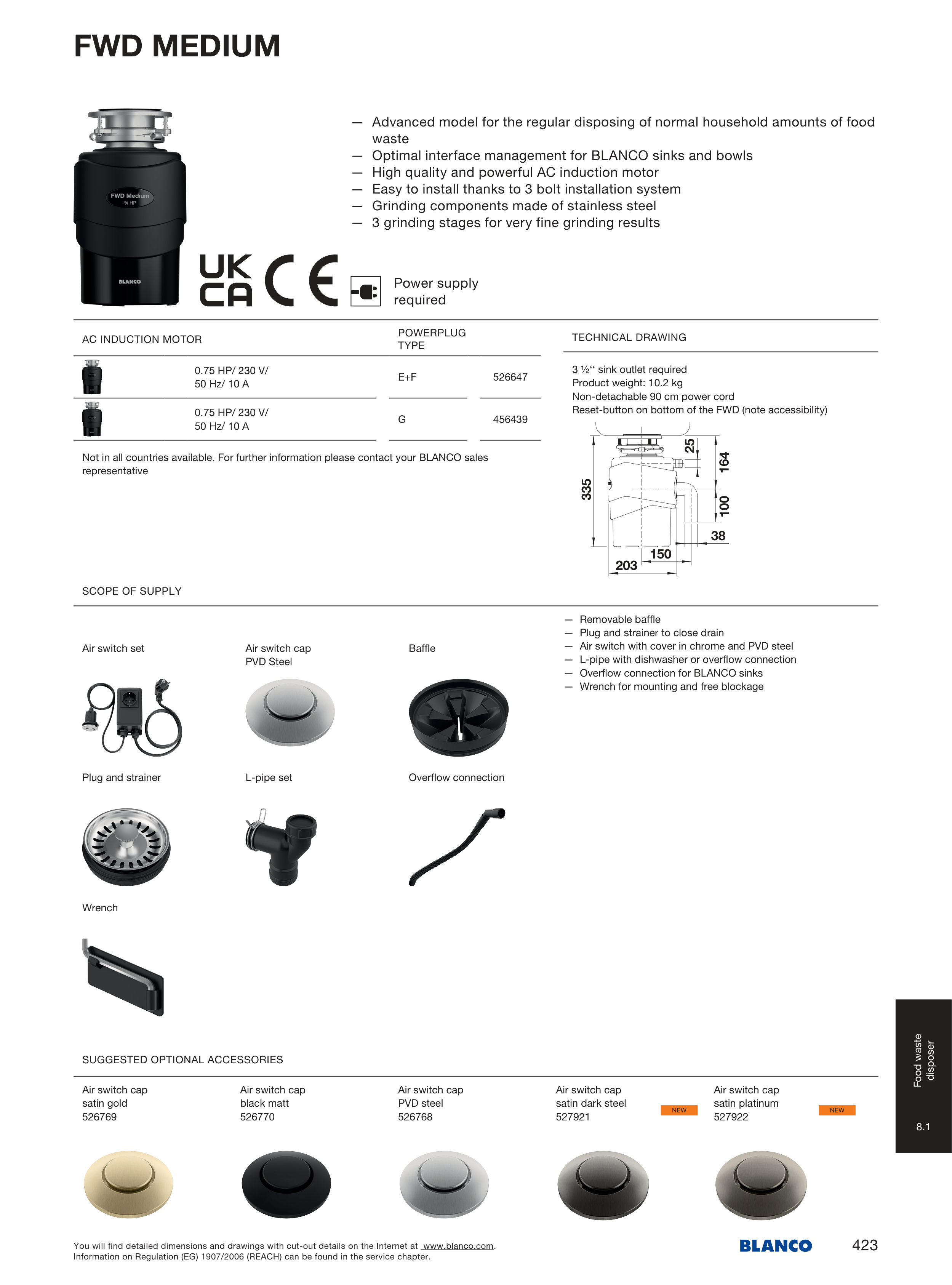

FWD MEDIUM
— Advanced model for the regular disposing of normal household amounts of food
waste
— Optimal interface management for BLANCO sinks and bowls
— High quality and powerful AC induction motor
— Easy to install thanks to 3 bolt installation system
— Grinding components made of stainless steel
— 3 grinding stages for very fine grinding results
Power supply
required
SUGGESTED OPTIONAL ACCESSORIES
— Removable baffle
— Plug and strainer to close drain
— Air switch with cover in chrome and PVD steel
— L-pipe with dishwasher or overflow connection
— Overflow connection for BLANCO sinks
— Wrench for mounting and free blockage
AC INDUCTION MOTOR
POWERPLUG
TYPE
0.75 HP/ 230 V/
50 Hz/ 10 A
E+F
526 647
0.75 HP/ 230 V/
50 Hz/ 10 A
G
456 439
100
38
164
150
203
335
25
3 ½‘‘ sink outlet required
Product weight: 10.2 kg
Non-detachable 90 cm power cord
Reset-button on bottom of the FWD (note accessibility)
TECHNICAL DRAWING
SCOPE OF SUPPLY
Air switch set
Air switch cap
PVD Steel
Baffle
Plug and strainer
L-pipe set
Overflow connection
Wrench
Not in all countries available. For further information please contact your BLANCO sales
representative
Air switch cap
satin gold
526 769
Air switch cap
black matt
526 770
Air switch cap
PVD steel
526 768
NEW
Air switch cap
satin dark steel
527 921
NEW
Air switch cap
satin platinum
527 922
Food waste
disposer
8.1
423
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
