SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

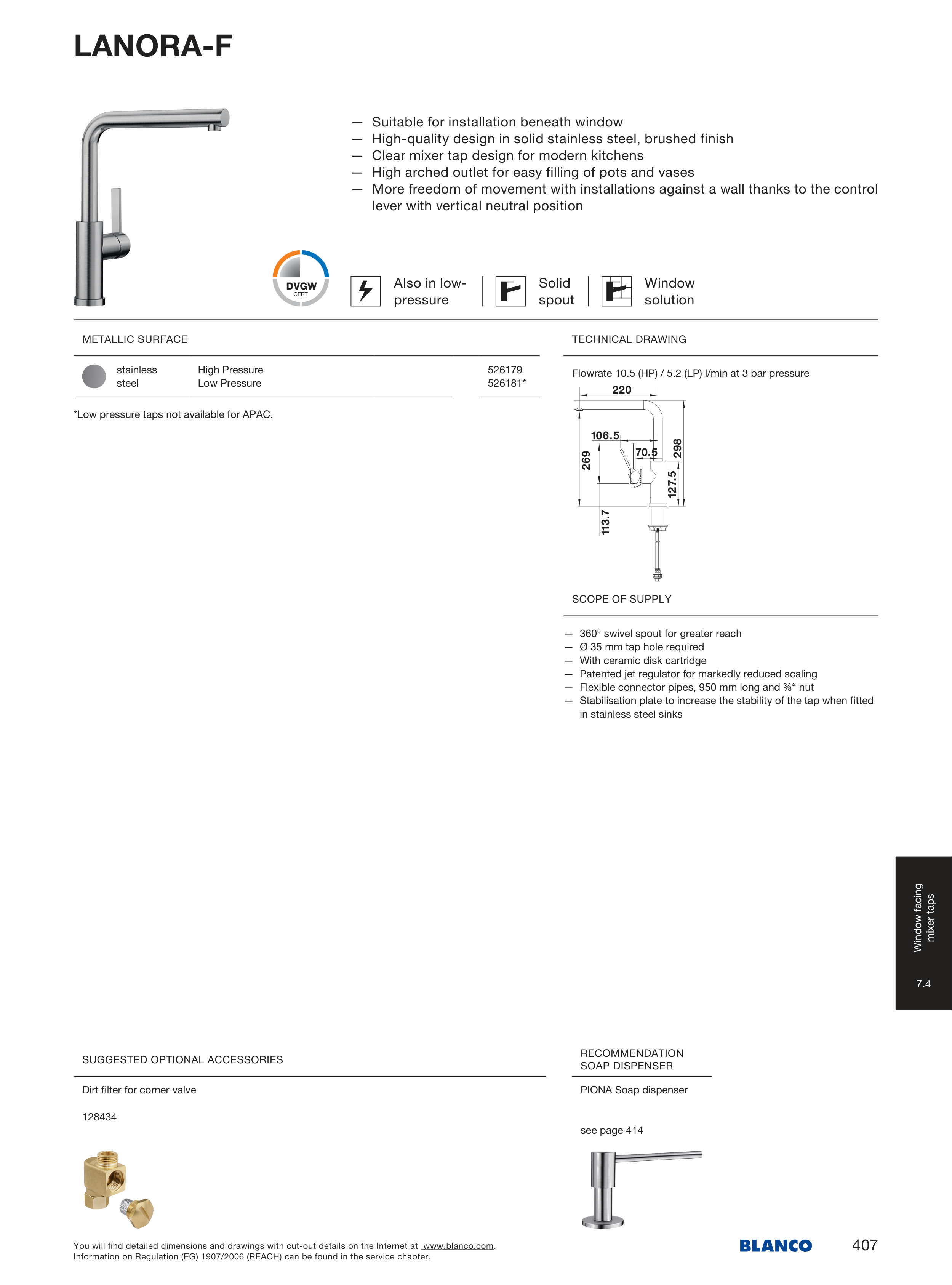

LANORA-F
— Suitable for installation beneath window
— High-quality design in solid stainless steel, brushed finish
— Clear mixer tap design for modern kitchens
— High arched outlet for easy filling of pots and vases
— More freedom of movement with installations against a wall thanks to the control
lever with vertical neutral position
Also in low-
pressure
Solid
spout
Window
solution
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Flexible connector pipes, 950 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
METALLIC SURFACE
stainless
steel
High Pressure
Low Pressure
526 179
526 181 *
70.5
106.5
298
220
269
113.7
127.5
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 10.5 (HP) / 5.2 (LP) l/min at 3 bar pressure
*Low pressure taps not available for APAC.
PIONA Soap dispenser
see page 414
Dirt filter for corner valve
128 434
Window facing
mixer taps
7.4
407
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
