SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

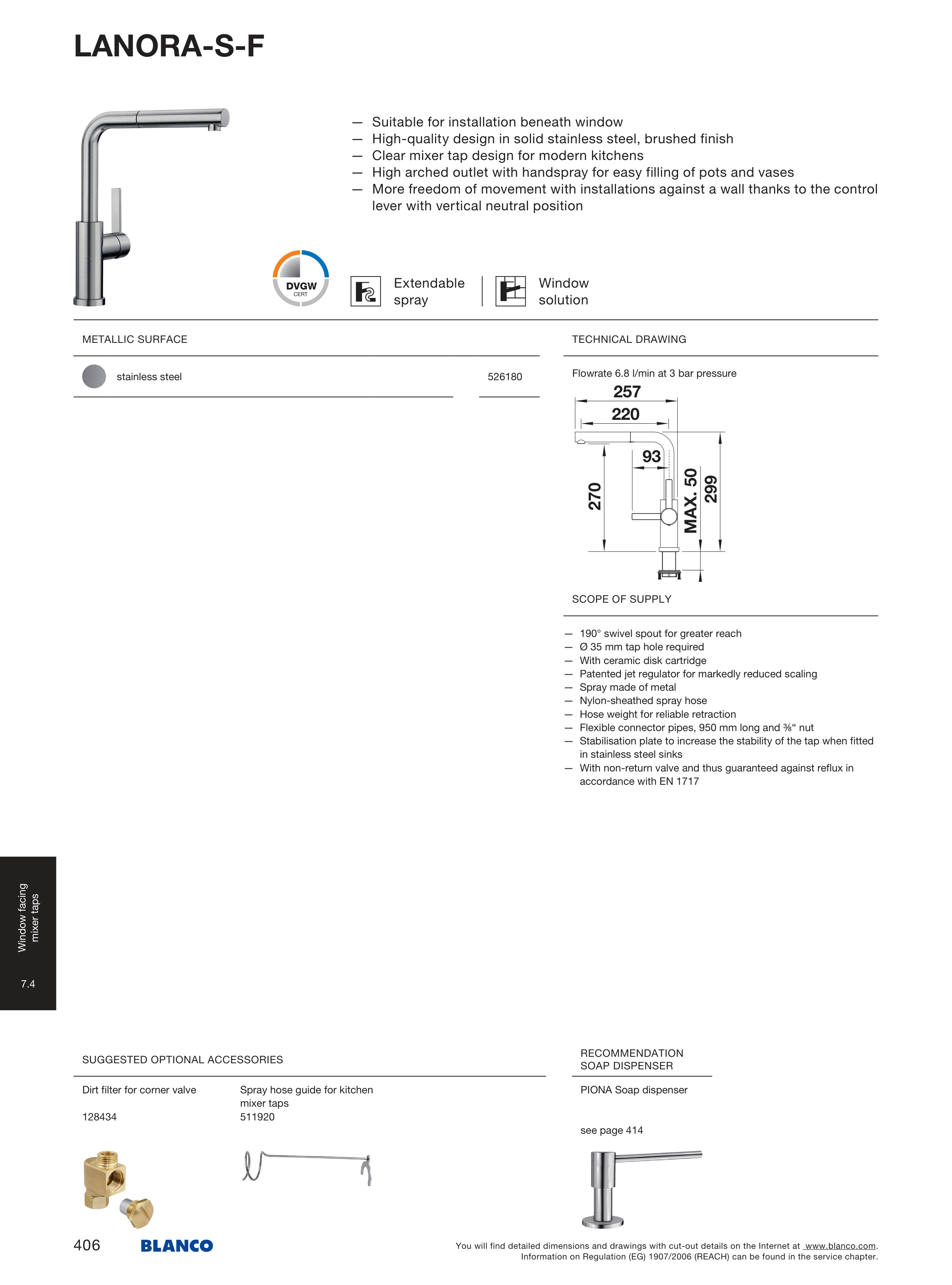

LANORA-S-F
— Suitable for installation beneath window
— High-quality design in solid stainless steel, brushed finish
— Clear mixer tap design for modern kitchens
— High arched outlet with handspray for easy filling of pots and vases
— More freedom of movement with installations against a wall thanks to the control
lever with vertical neutral position
Extendable
spray
Window
solution
— 190° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Spray made of metal
— Nylon-sheathed spray hose
— Hose weight for reliable retraction
— Flexible connector pipes, 950 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
METALLIC SURFACE
stainless steel
526 180
MAX. 50
299
220
257
270
93
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 6.8 l/min at 3 bar pressure
PIONA Soap dispenser
see page 414
Dirt filter for corner valve
128 434
Spray hose guide for kitchen
mixer taps
511 920
Window facing
mixer taps
7.4
406
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
