SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

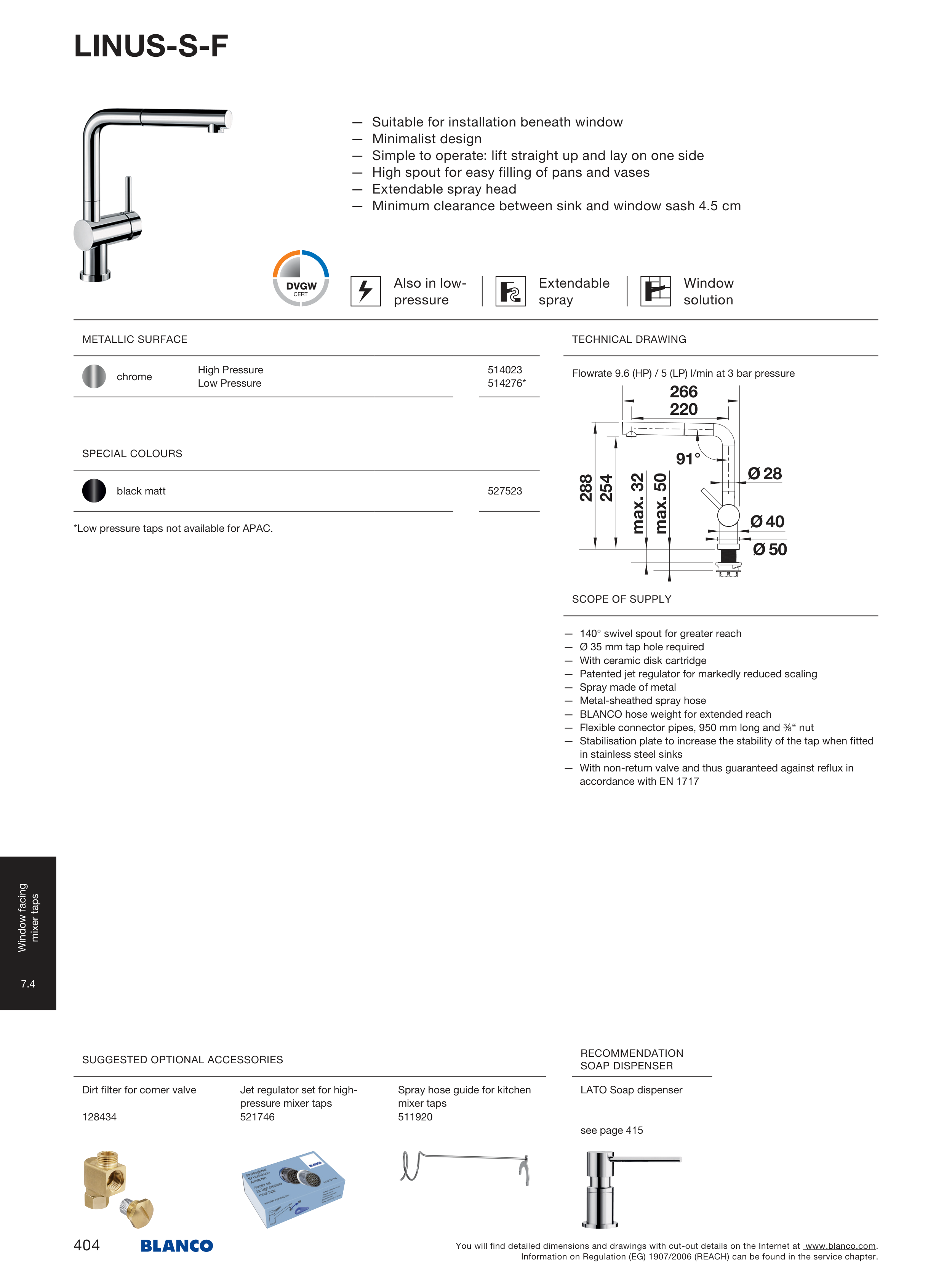

LINUS-S-F
— Suitable for installation beneath window
— Minimalist design
— Simple to operate: lift straight up and lay on one side
— High spout for easy filling of pans and vases
— Extendable spray head
— Minimum clearance between sink and window sash 4.5 cm
Also in low-
pressure
Extendable
spray
Window
solution
— 140° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Spray made of metal
— Metal-sheathed spray hose
— BLANCO hose weight for extended reach
— Flexible connector pipes, 950 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
METALLIC SURFACE
chrome
High Pressure
Low Pressure
514 023
514 276*
SPECIAL COLOURS
black matt
527 523
Ø 28
Ø 40
Ø 50
220
266
288
254
max. 32
max. 50
91°
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 9.6 (HP) / 5 (LP) l/min at 3 bar pressure
*Low pressure taps not available for APAC.
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Jet regulator set for high-
pressure mixer taps
521 746
Spray hose guide for kitchen
mixer taps
511 920
Window facing
mixer taps
7.4
404
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
