SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

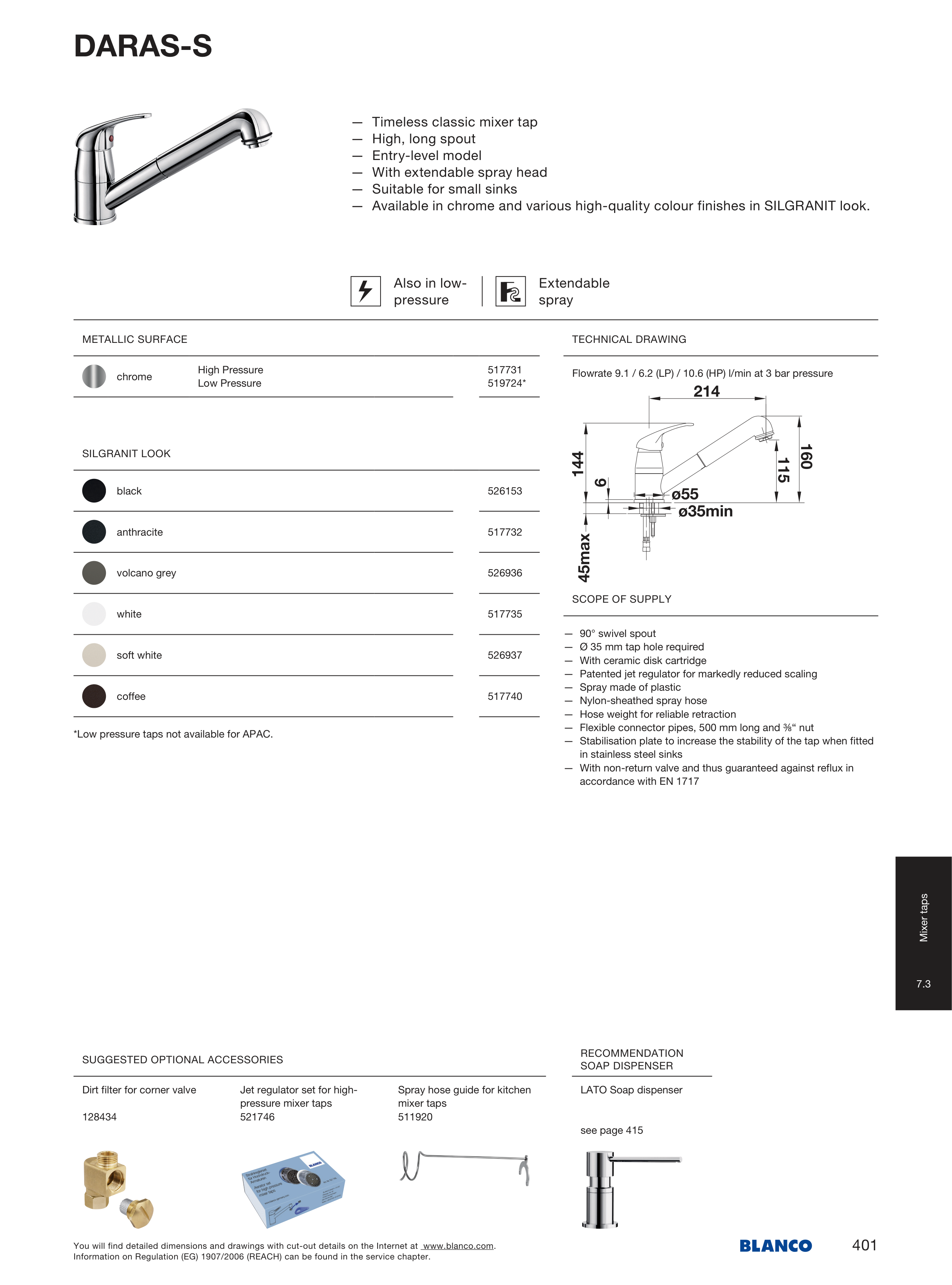

DARAS-S
— Timeless classic mixer tap
— High, long spout
— Entry-level model
— With extendable spray head
— Suitable for small sinks
— Available in chrome and various high-quality colour finishes in SILGRANIT look.
Also in low-
pressure
Extendable
spray
— 90° swivel spout
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Spray made of plastic
— Nylon-sheathed spray hose
— Hose weight for reliable retraction
— Flexible connector pipes, 500 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
METALLIC SURFACE
chrome
High Pressure
Low Pressure
517 731
519 724 *
SILGRANIT LOOK
black
526 153
anthracite
517 732
volcano grey
526 936
white
517 735
soft white
526 937
coffee
517 740
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 9.1 / 6.2 (LP) / 10.6 (HP) l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Jet regulator set for high-
pressure mixer taps
521 746
Spray hose guide for kitchen
mixer taps
511 920
Mixer taps
7.3
*Low pressure taps not available for APAC.
401
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
