SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

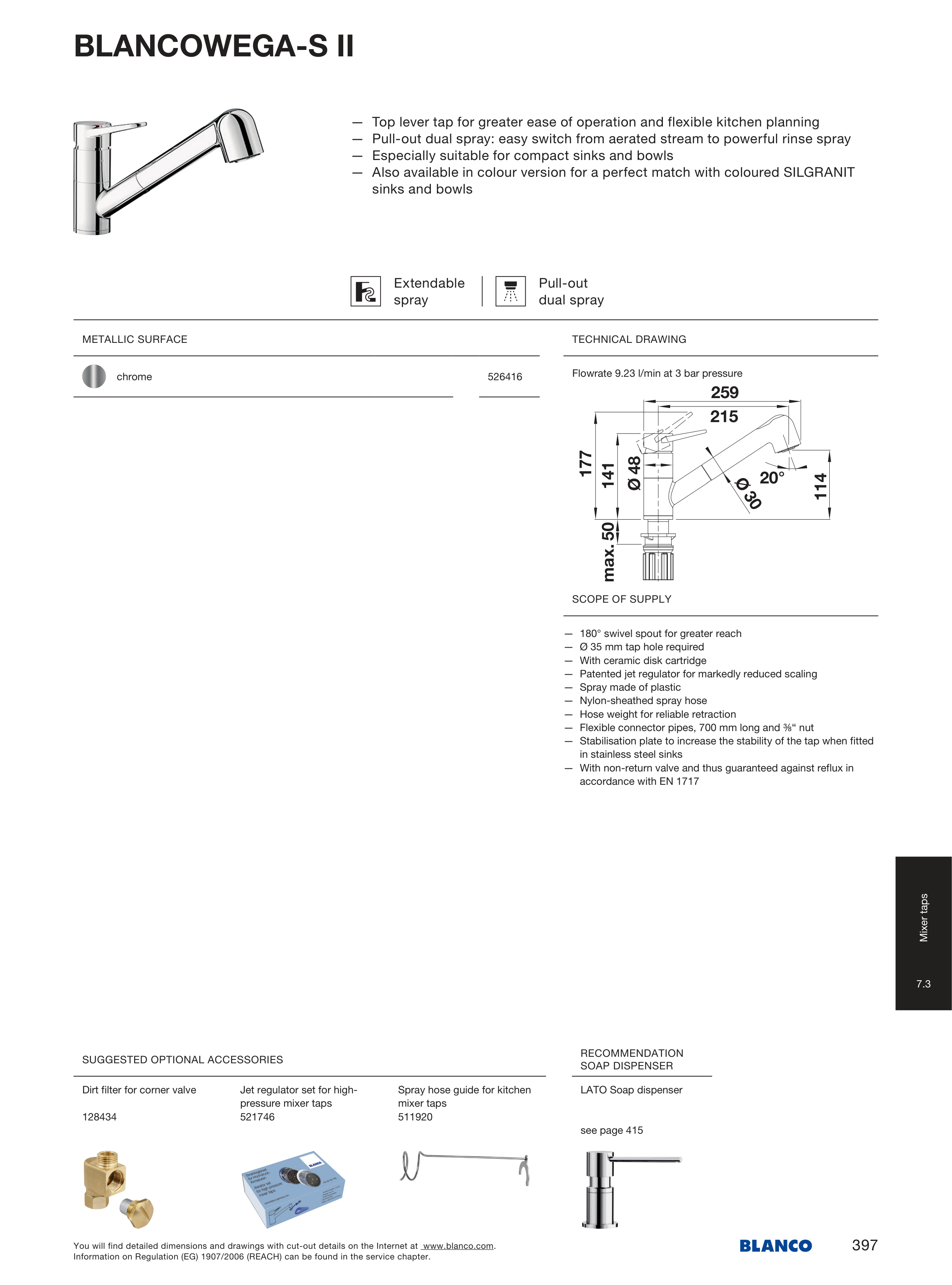

BLANCOWEGA-S II
— Top lever tap for greater ease of operation and flexible kitchen planning
— Pull-out dual spray: easy switch from aerated stream to powerful rinse spray
— Especially suitable for compact sinks and bowls
— Also available in colour version for a perfect match with coloured SILGRANIT
sinks and bowls
Extendable
spray
Pull-out
dual spray
— 180° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Spray made of plastic
— Nylon-sheathed spray hose
— Hose weight for reliable retraction
— Flexible connector pipes, 700 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
METALLIC SURFACE
chrome
526 416
114
Ø 30
max. 50
177
141
Ø 48
215
259
20°
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 9.23 l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Jet regulator set for high-
pressure mixer taps
521 746
Spray hose guide for kitchen
mixer taps
511 920
Mixer taps
7.3
397
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
