SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

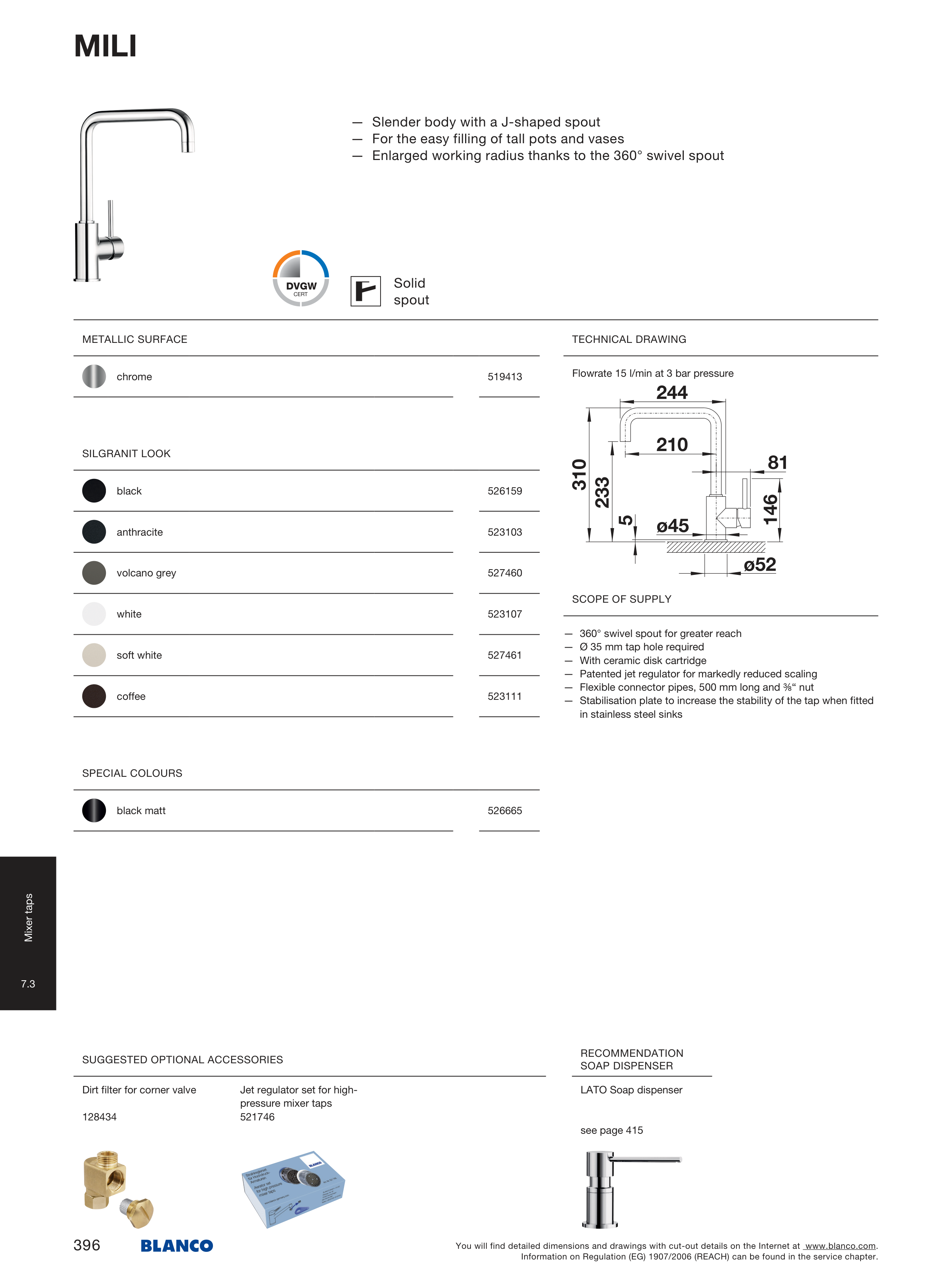

MILI
— Slender body with a J-shaped spout
— For the easy filling of tall pots and vases
— Enlarged working radius thanks to the 360° swivel spout
Solid
spout
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Flexible connector pipes, 500 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
METALLIC SURFACE
chrome
519 413
SILGRANIT LOOK
black
526 159
anthracite
523 103
volcano grey
527 460
white
523 107
soft white
527 461
coffee
523 111
SPECIAL COLOURS
black matt
526 665
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 15 l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Jet regulator set for high-
pressure mixer taps
521 746
Mixer taps
7.3
396
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
