SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

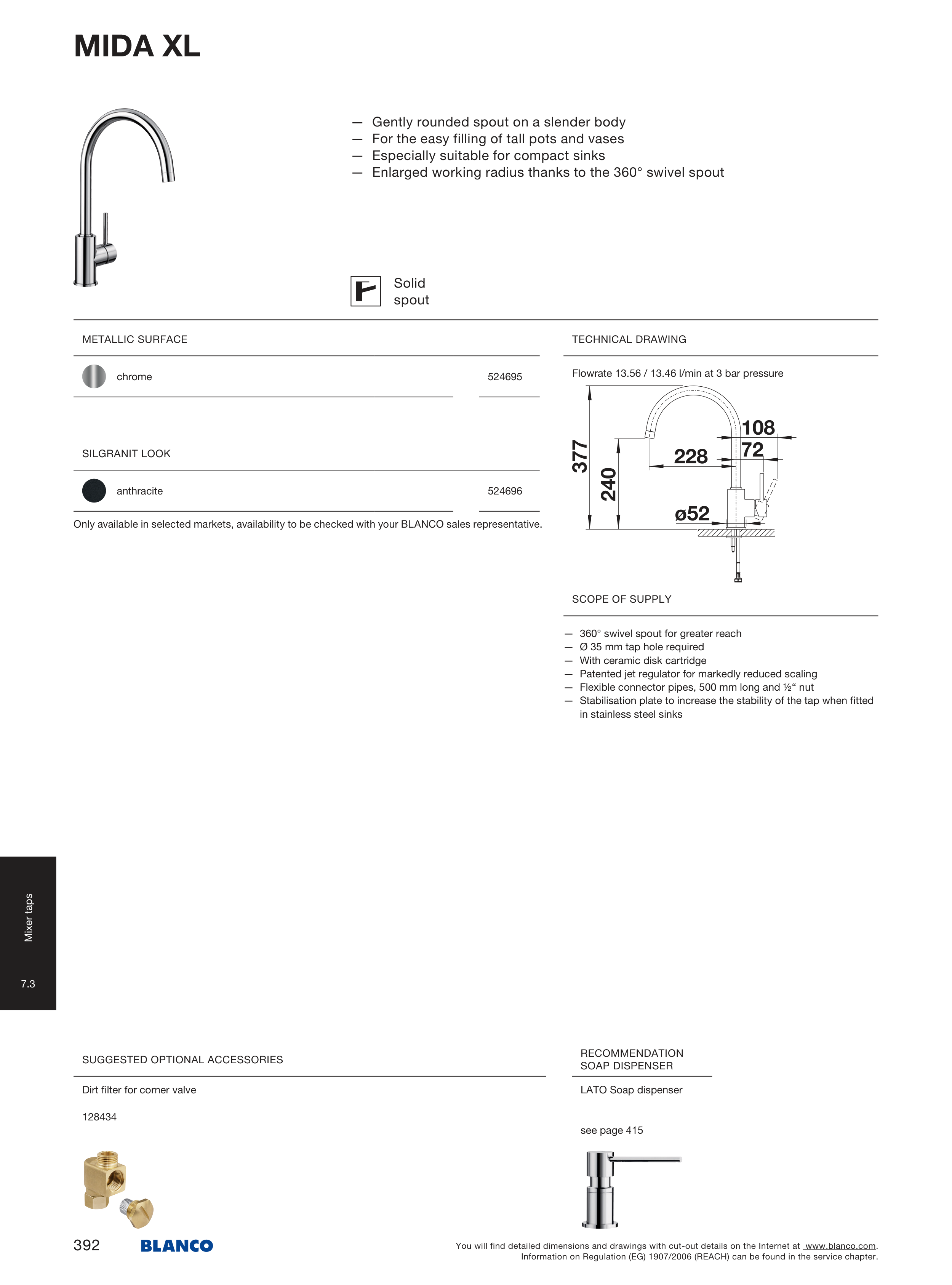

MIDA XL
— Gently rounded spout on a slender body
— For the easy filling of tall pots and vases
— Especially suitable for compact sinks
— Enlarged working radius thanks to the 360° swivel spout
Solid
spout
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Flexible connector pipes, 500 mm long and ½“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
METALLIC SURFACE
chrome
524 695
SILGRANIT LOOK
anthracite
524 696
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 13.56 / 13.46 l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Only available in selected markets, availability to be checked with your BLANCO sales representative.
Mixer taps
7.3
392
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
