SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

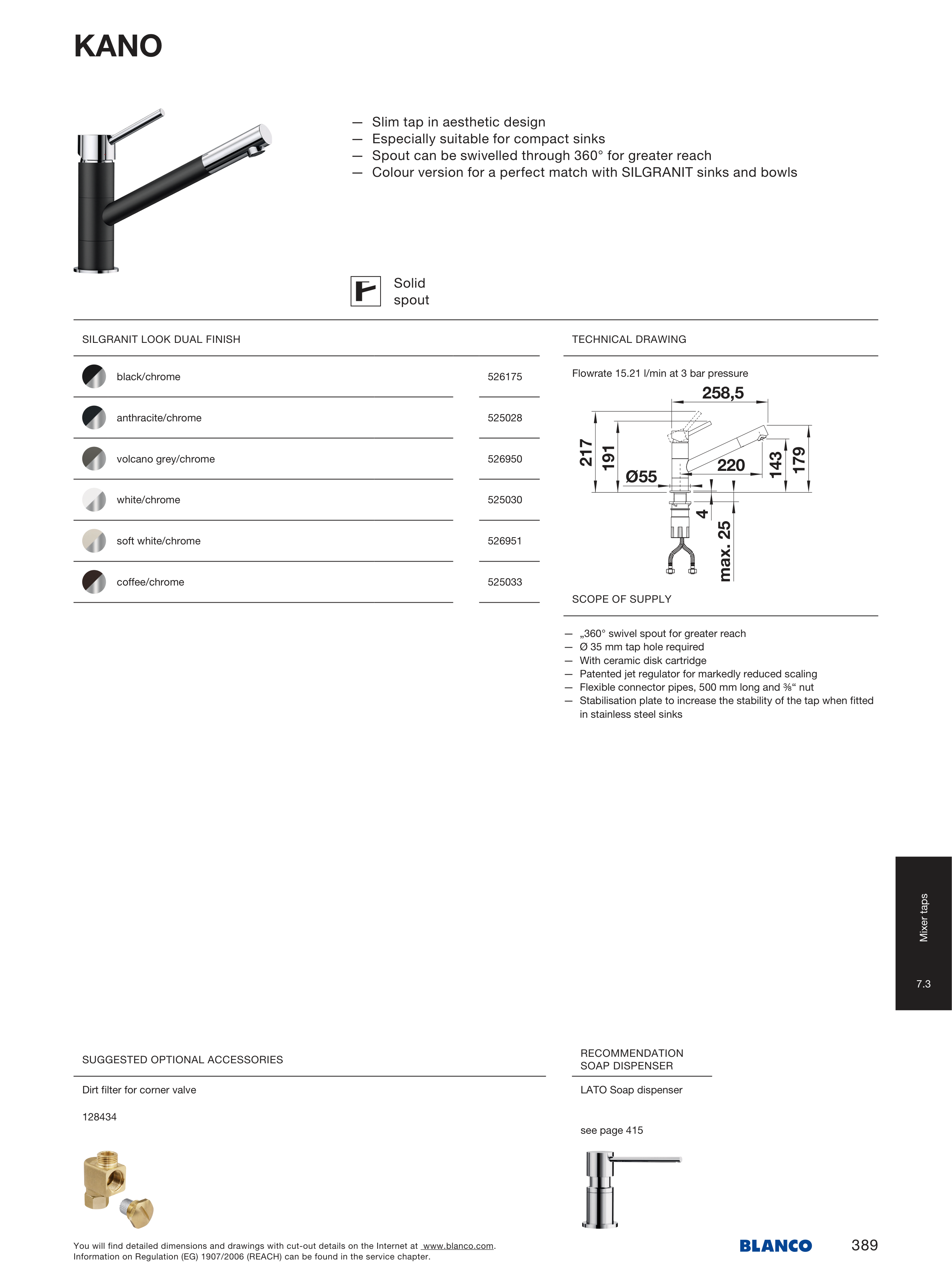

KANO
— Slim tap in aesthetic design
— Especially suitable for compact sinks
— Spout can be swivelled through 360° for greater reach
— Colour version for a perfect match with SILGRANIT sinks and bowls
Solid
spout
— „360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Flexible connector pipes, 500 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
SILGRANIT LOOK DUAL FINISH
black/chrome
526 175
anthracite/chrome
525 028
volcano grey/chrome
526 950
white/chrome
525 030
soft white/chrome
526 951
coffee/chrome
525 033
217
191
258,5
143
179
4
max. 25
220
Ø55
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 15.21 l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Mixer taps
7.3
389
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
