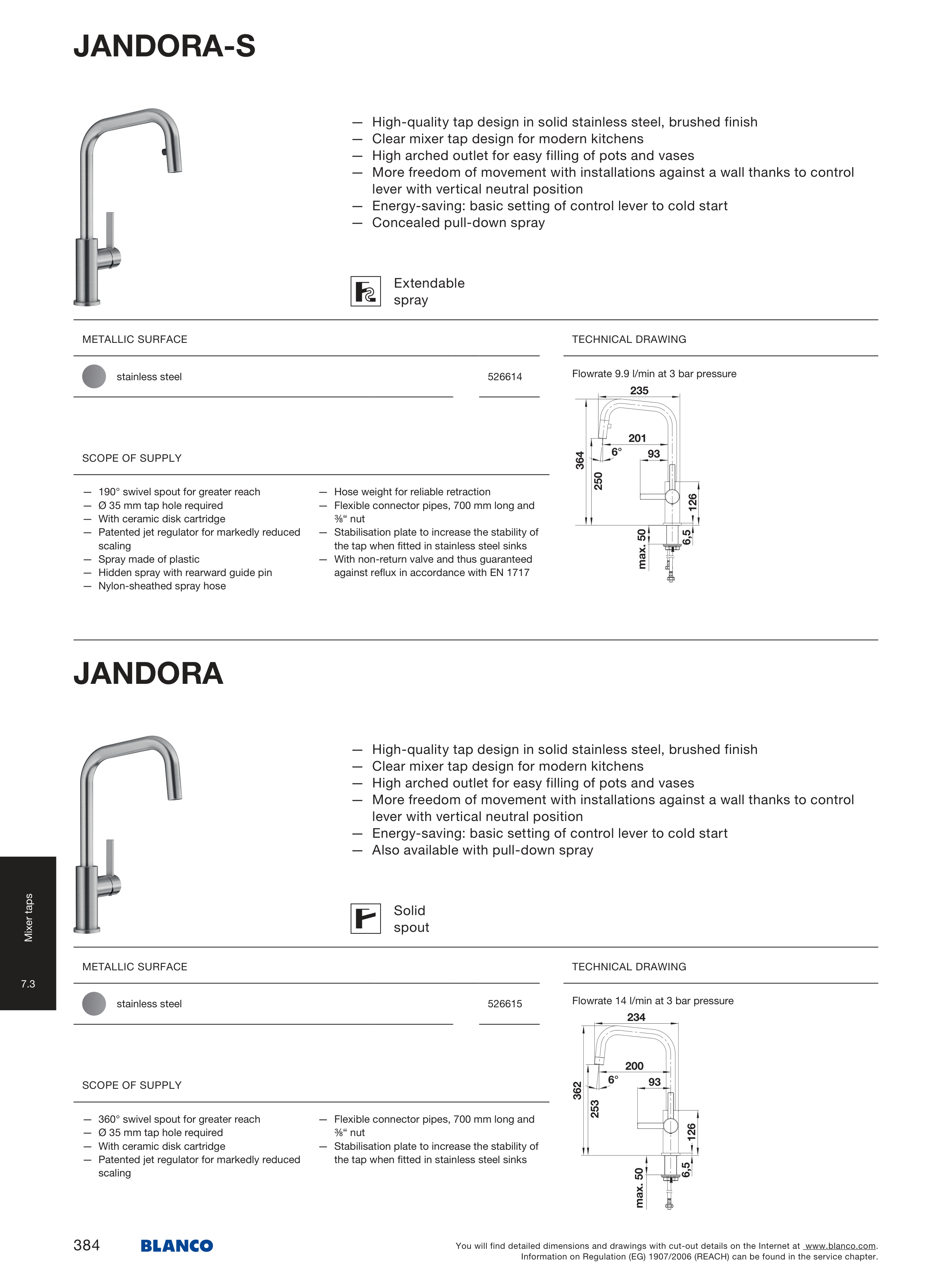

JANDORA-S
— High-quality tap design in solid stainless steel, brushed finish
— Clear mixer tap design for modern kitchens
— High arched outlet for easy filling of pots and vases
— More freedom of movement with installations against a wall thanks to control
lever with vertical neutral position
— Energy-saving: basic setting of control lever to cold start
— Concealed pull-down spray
Extendable
spray
METALLIC SURFACE
stainless steel
526 614
Flowrate 9.9 l/min at 3 bar pressure
TECHNICAL DRAWING
235
364
201
93
6,5
max. 50
250
6°
126
SCOPE OF SUPPLY
— 190° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced
scaling
— Spray made of plastic
— Hidden spray with rearward guide pin
— Nylon-sheathed spray hose
— Hose weight for reliable retraction
— Flexible connector pipes, 700 mm long and
⅜“ nut
— Stabilisation plate to increase the stability of
the tap when fitted in stainless steel sinks
— With non-return valve and thus guaranteed
against reflux in accordance with EN 1717
JANDORA
— High-quality tap design in solid stainless steel, brushed finish
— Clear mixer tap design for modern kitchens
— High arched outlet for easy filling of pots and vases
— More freedom of movement with installations against a wall thanks to control
lever with vertical neutral position
— Energy-saving: basic setting of control lever to cold start
— Also available with pull-down spray
Solid
spout
METALLIC SURFACE
stainless steel
526 615
Flowrate 14 l/min at 3 bar pressure
TECHNICAL DRAWING
234
253
362
200
93
126
6,5
max. 50
6°
SCOPE OF SUPPLY
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced
scaling
— Flexible connector pipes, 700 mm long and
⅜“ nut
— Stabilisation plate to increase the stability of
the tap when fitted in stainless steel sinks
Mixer taps
7.3
384
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
