SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

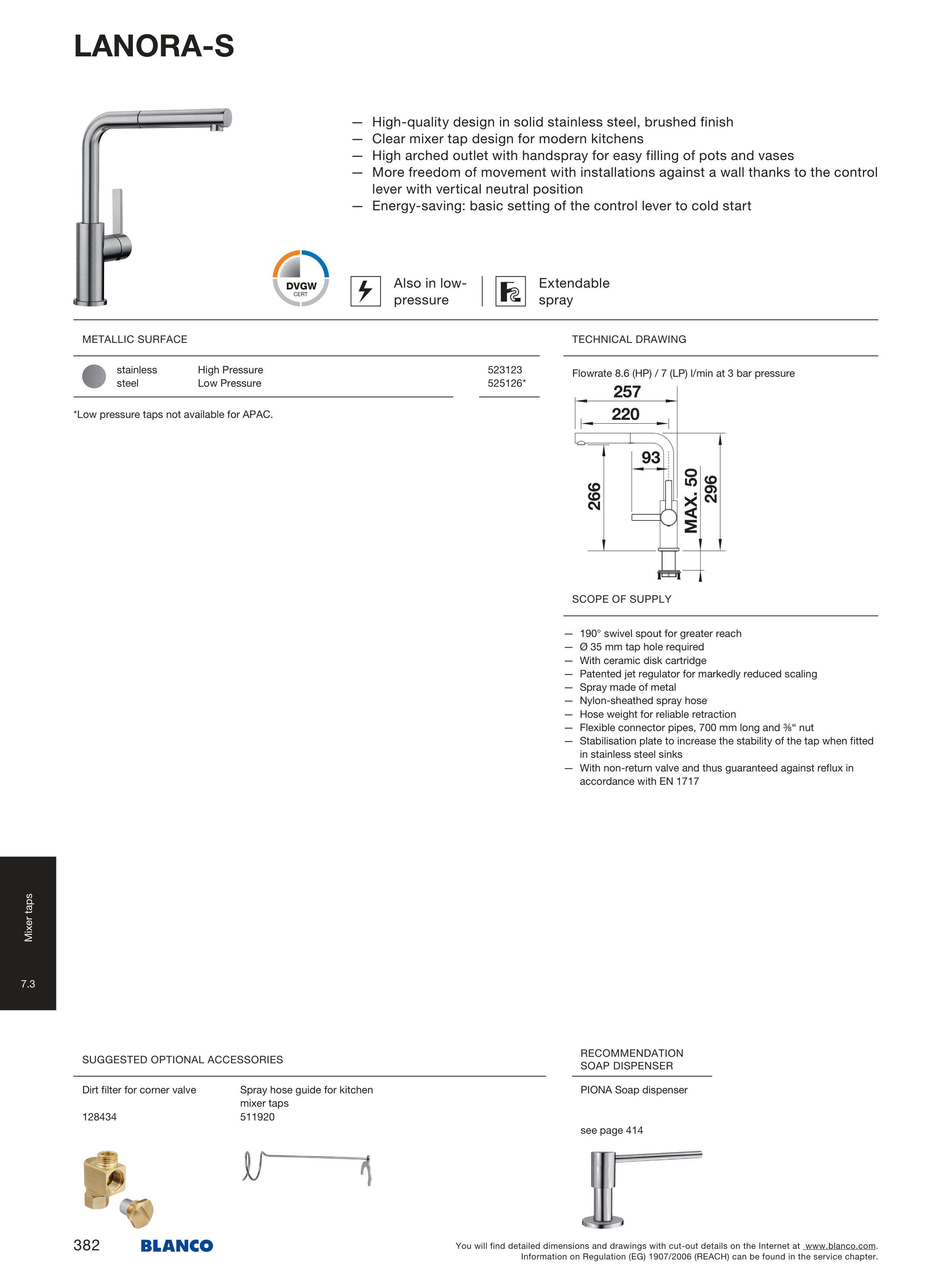

LANORA-S
— High-quality design in solid stainless steel, brushed finish
— Clear mixer tap design for modern kitchens
— High arched outlet with handspray for easy filling of pots and vases
— More freedom of movement with installations against a wall thanks to the control
lever with vertical neutral position
— Energy-saving: basic setting of the control lever to cold start
Also in low-
pressure
Extendable
spray
— 190° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Spray made of metal
— Nylon-sheathed spray hose
— Hose weight for reliable retraction
— Flexible connector pipes, 700 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
METALLIC SURFACE
stainless
steel
High Pressure
Low Pressure
523 123
525 126*
93
266
MAX. 50
296
220
257
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 8.6 (HP) / 7 (LP) l/min at 3 bar pressure
*Low pressure taps not available for APAC.
PIONA Soap dispenser
see page 414
Dirt filter for corner valve
128 434
Spray hose guide for kitchen
mixer taps
511 920
Mixer taps
7.3
382
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
