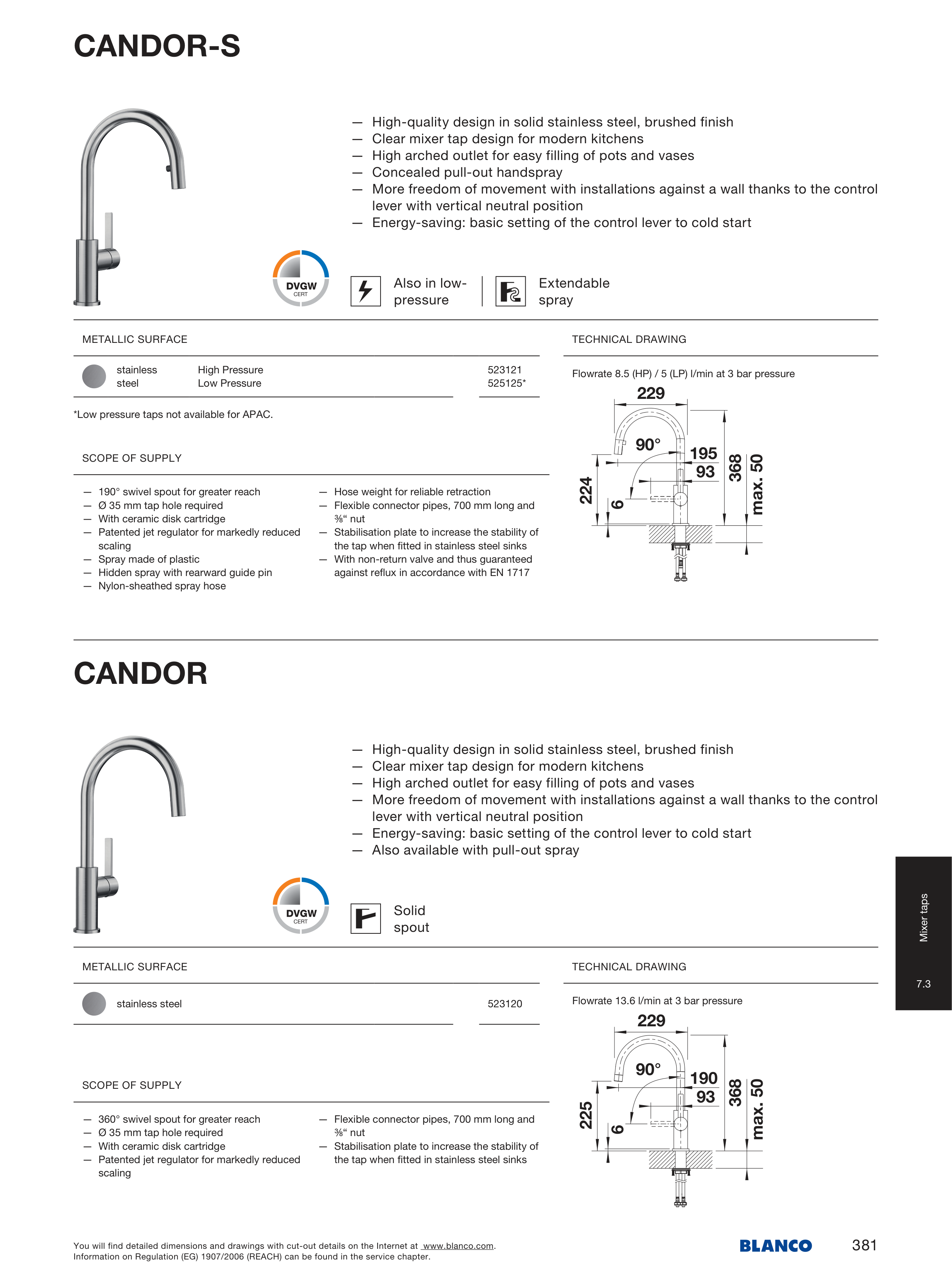

CANDOR-S
— High-quality design in solid stainless steel, brushed finish
— Clear mixer tap design for modern kitchens
— High arched outlet for easy filling of pots and vases
— Concealed pull-out handspray
— More freedom of movement with installations against a wall thanks to the control
lever with vertical neutral position
— Energy-saving: basic setting of the control lever to cold start
Also in low-
pressure
Extendable
spray
METALLIC SURFACE
stainless
steel
High Pressure
Low Pressure
523 121
525 125*
Flowrate 8.5 (HP) / 5 (LP) l/min at 3 bar pressure
TECHNICAL DRAWING
368
max. 50
93
195
229
224
90°
SCOPE OF SUPPLY
— 190° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced
scaling
— Spray made of plastic
— Hidden spray with rearward guide pin
— Nylon-sheathed spray hose
— Hose weight for reliable retraction
— Flexible connector pipes, 700 mm long and
⅜“ nut
— Stabilisation plate to increase the stability of
the tap when fitted in stainless steel sinks
— With non-return valve and thus guaranteed
against reflux in accordance with EN 1717
CANDOR
— High-quality design in solid stainless steel, brushed finish
— Clear mixer tap design for modern kitchens
— High arched outlet for easy filling of pots and vases
— More freedom of movement with installations against a wall thanks to the control
lever with vertical neutral position
— Energy-saving: basic setting of the control lever to cold start
— Also available with pull-out spray
Solid
spout
METALLIC SURFACE
stainless steel
523 120
Flowrate 13.6 l/min at 3 bar pressure
TECHNICAL DRAWING
368
max. 50
93
190
225
90°
229
SCOPE OF SUPPLY
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced
scaling
— Flexible connector pipes, 700 mm long and
⅜“ nut
— Stabilisation plate to increase the stability of
the tap when fitted in stainless steel sinks
*Low pressure taps not available for APAC.
Mixer taps
7.3
381
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
