SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

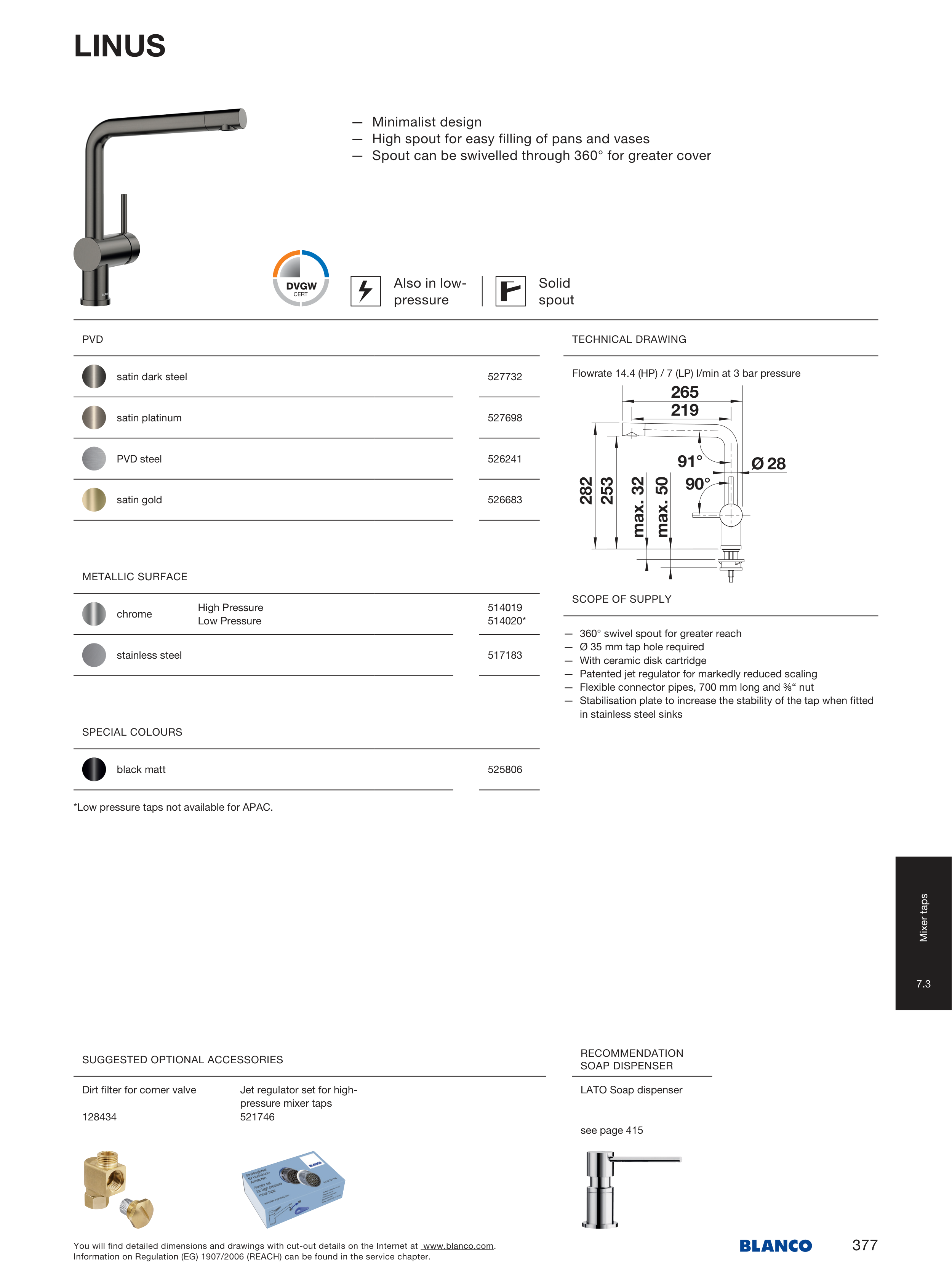

LINUS
— Minimalist design
— High spout for easy filling of pans and vases
— Spout can be swivelled through 360° for greater cover
Also in low-
pressure
Solid
spout
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Flexible connector pipes, 700 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
PVD
satin dark steel
527 732
satin platinum
527 698
PVD steel
526 241
satin gold
526 683
METALLIC SURFACE
chrome
High Pressure
Low Pressure
514 019
514 020 *
stainless steel
517 183
SPECIAL COLOURS
black matt
525 806
219
265
Ø 28
91°
282
253
max. 32
max. 50
90°
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 14.4 (HP) / 7 (LP) l/min at 3 bar pressure
*Low pressure taps not available for APAC.
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Jet regulator set for high-
pressure mixer taps
521 746
Mixer taps
7.3
377
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
