SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

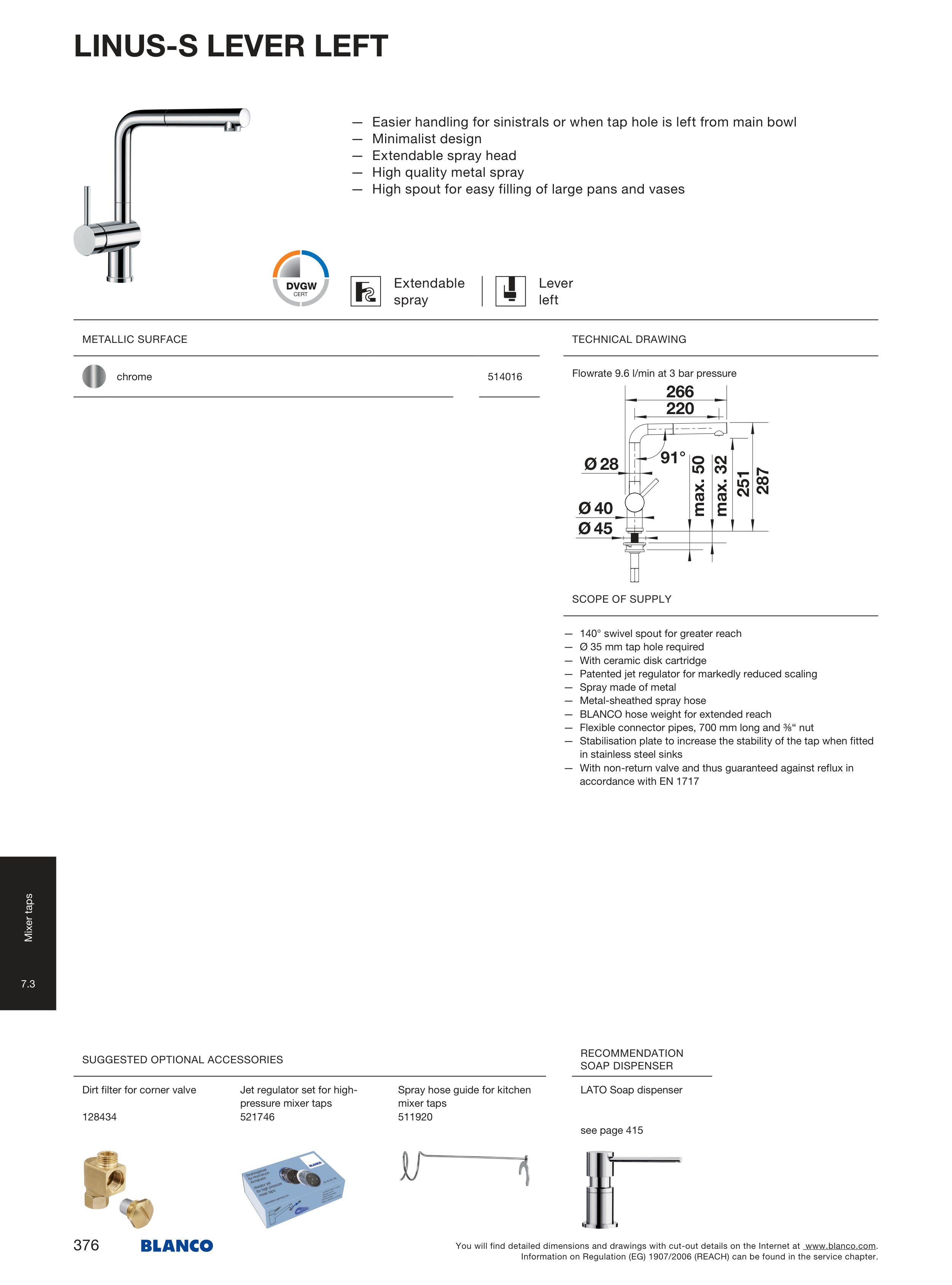

LINUS-S LEVER LEFT
— Easier handling for sinistrals or when tap hole is left from main bowl
— Minimalist design
— Extendable spray head
— High quality metal spray
— High spout for easy filling of large pans and vases
Extendable
spray
Lever
left
— 140° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Spray made of metal
— Metal-sheathed spray hose
— BLANCO hose weight for extended reach
— Flexible connector pipes, 700 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
METALLIC SURFACE
chrome
514 016
266
220
287
251
max. 32
max. 50
Ø 28
91°
Ø 40
Ø 45
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 9.6 l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Jet regulator set for high-
pressure mixer taps
521 746
Spray hose guide for kitchen
mixer taps
511 920
Mixer taps
7.3
376
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
