SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

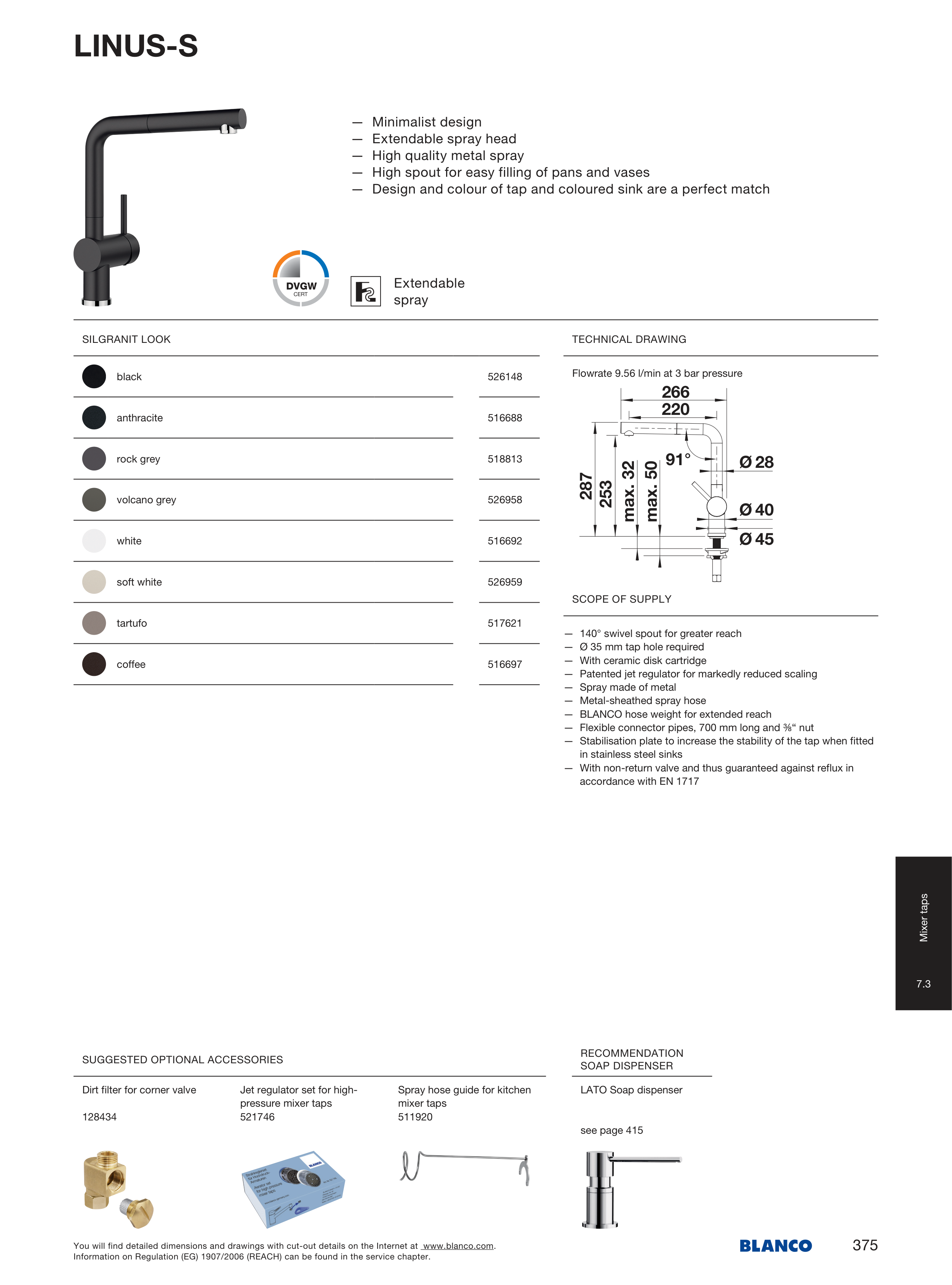

LINUS-S
— Minimalist design
— Extendable spray head
— High quality metal spray
— High spout for easy filling of pans and vases
— Design and colour of tap and coloured sink are a perfect match
Extendable
spray
— 140° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Spray made of metal
— Metal-sheathed spray hose
— BLANCO hose weight for extended reach
— Flexible connector pipes, 700 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
SILGRANIT LOOK
black
526 148
anthracite
516 688
rock grey
518 813
volcano grey
526 958
white
516 692
soft white
526 959
tartufo
517 621
coffee
516 697
266
220
287
253
max. 32
max. 50
Ø 28
91°
Ø 40
Ø 45
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 9.56 l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Jet regulator set for high-
pressure mixer taps
521 746
Spray hose guide for kitchen
mixer taps
511 920
Mixer taps
7.3
375
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
