SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

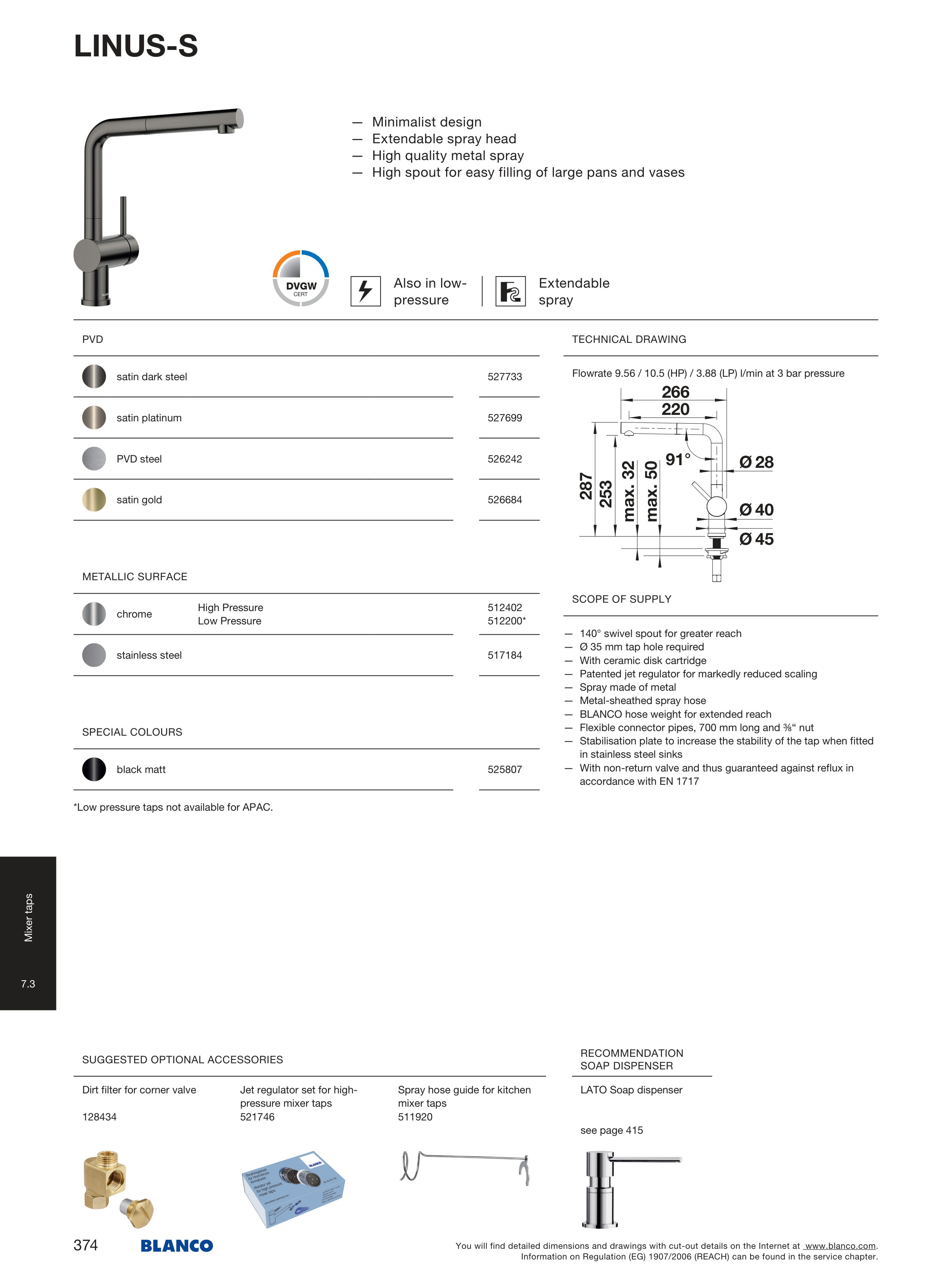

LINUS-S
— Minimalist design
— Extendable spray head
— High quality metal spray
— High spout for easy filling of large pans and vases
Also in low-
pressure
Extendable
spray
— 140° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Spray made of metal
— Metal-sheathed spray hose
— BLANCO hose weight for extended reach
— Flexible connector pipes, 700 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
*Low pressure taps not available for APAC.
PVD
satin dark steel
527 733
satin platinum
527 699
PVD steel
526 242
satin gold
526 684
METALLIC SURFACE
chrome
High Pressure
Low Pressure
512 402
512 200*
stainless steel
517 184
SPECIAL COLOURS
black matt
525 807
266
220
287
253
max. 32
max. 50
Ø 28
91°
Ø 40
Ø 45
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 9.56 / 10.5 (HP) / 3.88 (LP) l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Jet regulator set for high-
pressure mixer taps
521 746
Spray hose guide for kitchen
mixer taps
511 920
Mixer taps
7.3
374
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
