SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

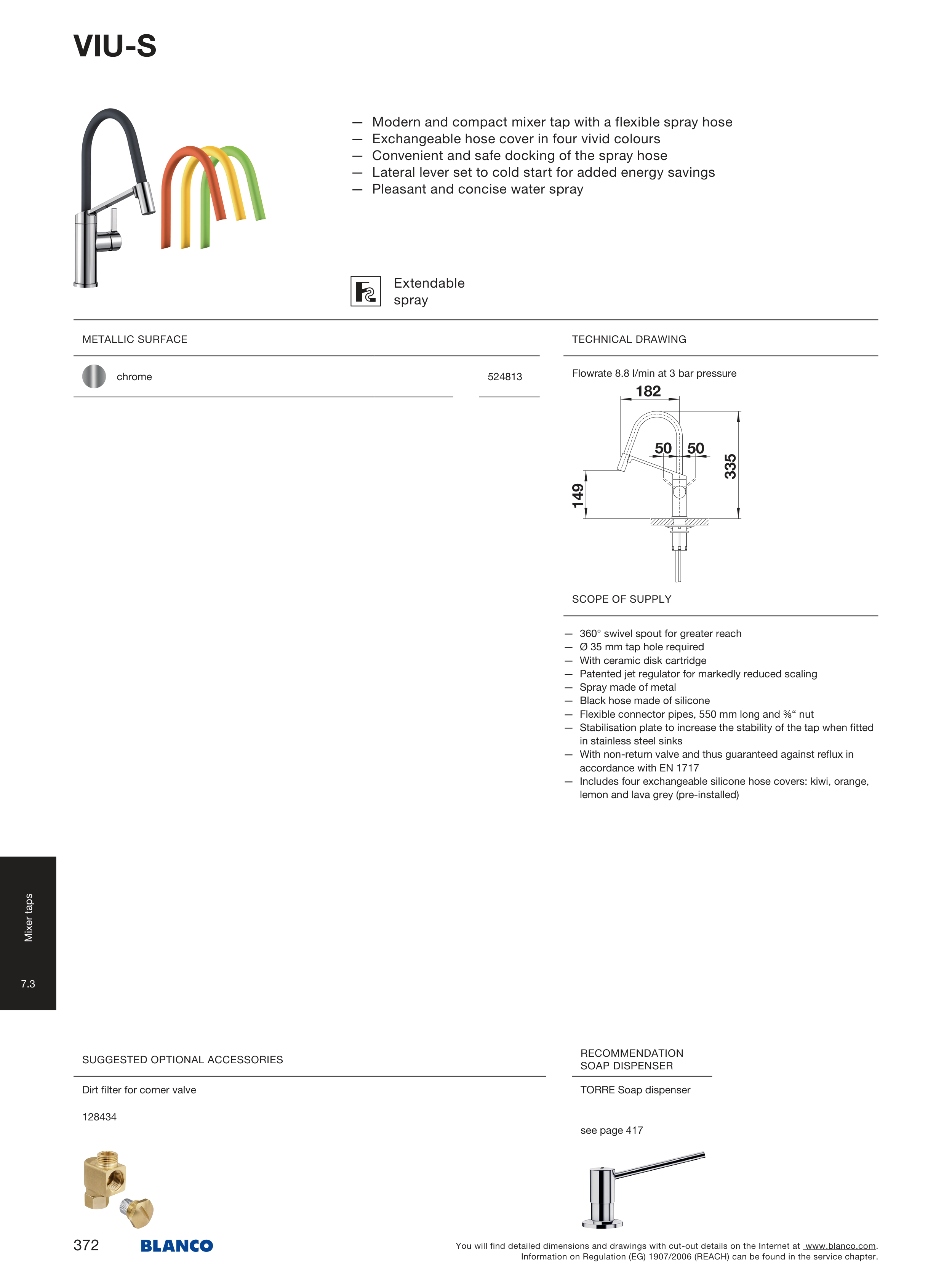

VIU-S
— Modern and compact mixer tap with a flexible spray hose
— Exchangeable hose cover in four vivid colours
— Convenient and safe docking of the spray hose
— Lateral lever set to cold start for added energy savings
— Pleasant and concise water spray
Extendable
spray
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Spray made of metal
— Black hose made of silicone
— Flexible connector pipes, 550 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
— Includes four exchangeable silicone hose covers: kiwi, orange,
lemon and lava grey (pre-installed)
METALLIC SURFACE
chrome
524 813
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 8.8 l/min at 3 bar pressure
TORRE Soap dispenser
see page 417
Dirt filter for corner valve
128 434
Mixer taps
7.3
372
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
