SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

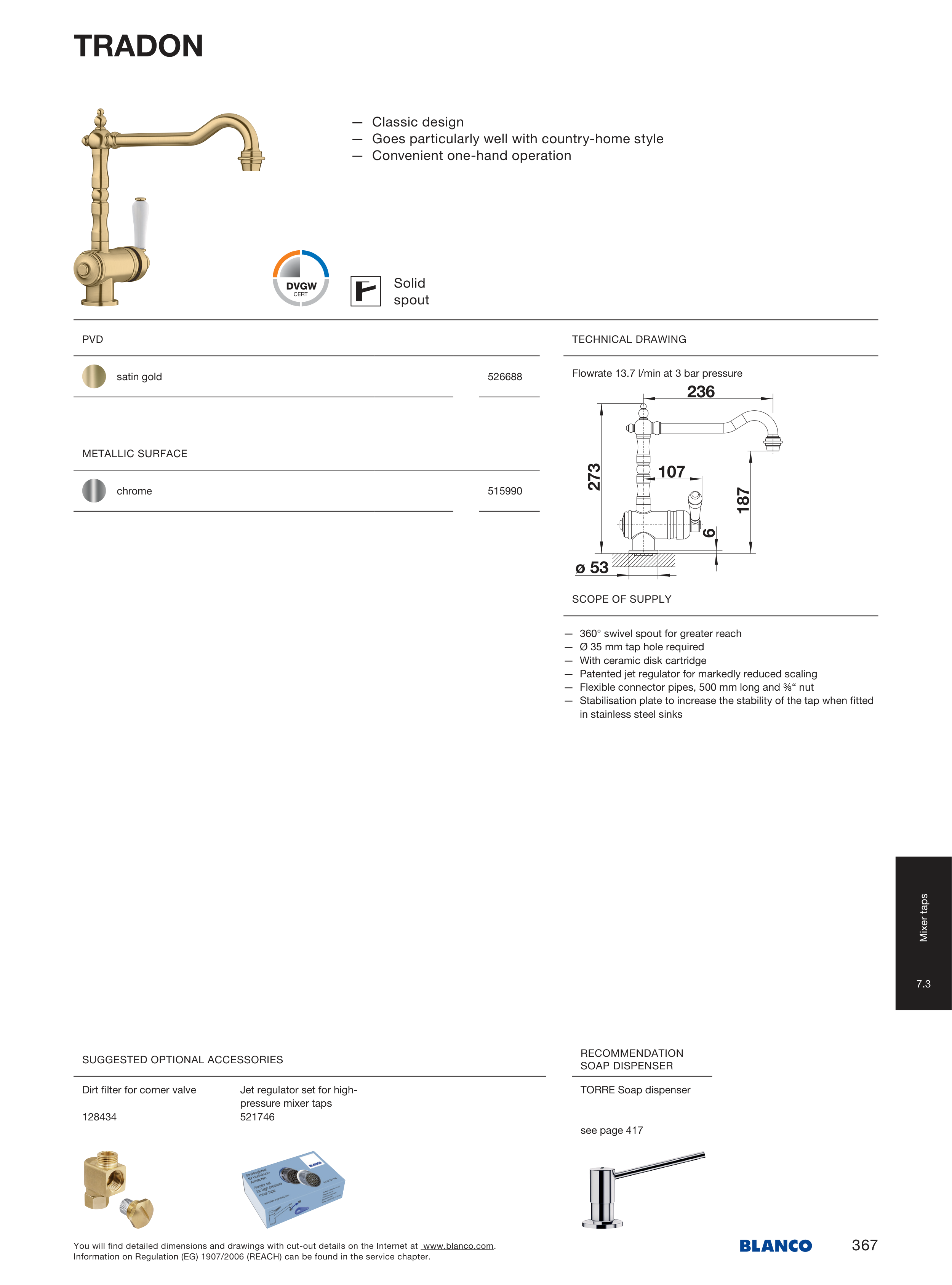

TRADON
— Classic design
— Goes particularly well with country-home style
— Convenient one-hand operation
Solid
spout
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Flexible connector pipes, 500 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
PVD
satin gold
526 688
METALLIC SURFACE
chrome
515 990
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 13.7 l/min at 3 bar pressure
TORRE Soap dispenser
see page 417
Dirt filter for corner valve
128 434
Jet regulator set for high-
pressure mixer taps
521 746
Mixer taps
7.3
367
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
