SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

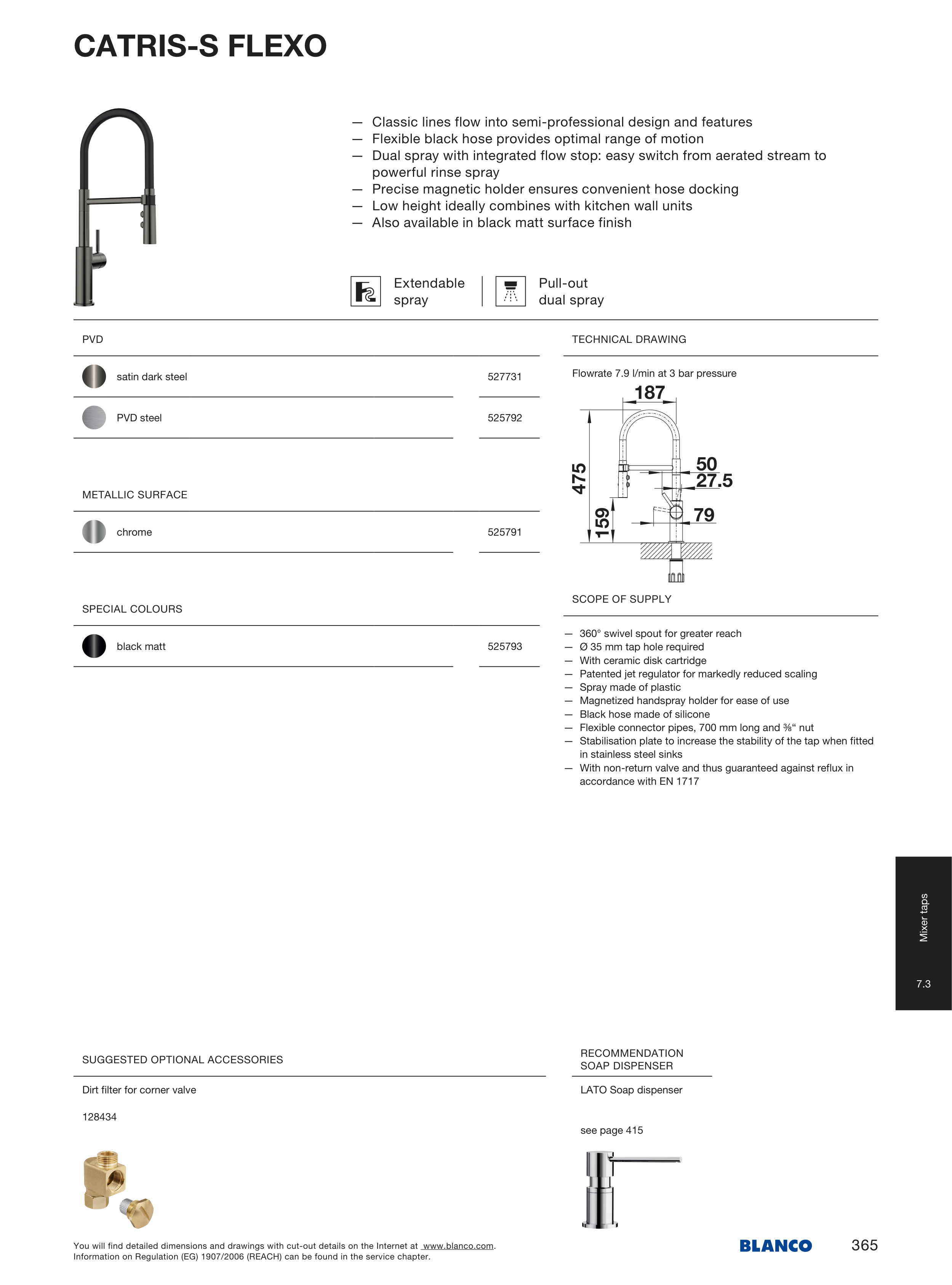

CATRIS-S FLEXO
— Classic lines flow into semi-professional design and features
— Flexible black hose provides optimal range of motion
— Dual spray with integrated flow stop: easy switch from aerated stream to
powerful rinse spray
— Precise magnetic holder ensures convenient hose docking
— Low height ideally combines with kitchen wall units
— Also available in black matt surface finish
Extendable
spray
Pull-out
dual spray
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Spray made of plastic
— Magnetized handspray holder for ease of use
— Black hose made of silicone
— Flexible connector pipes, 700 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
PVD
satin dark steel
527 731
PVD steel
525 792
METALLIC SURFACE
chrome
525 791
SPECIAL COLOURS
black matt
525 793
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 7.9 l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Mixer taps
7.3
365
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
