SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

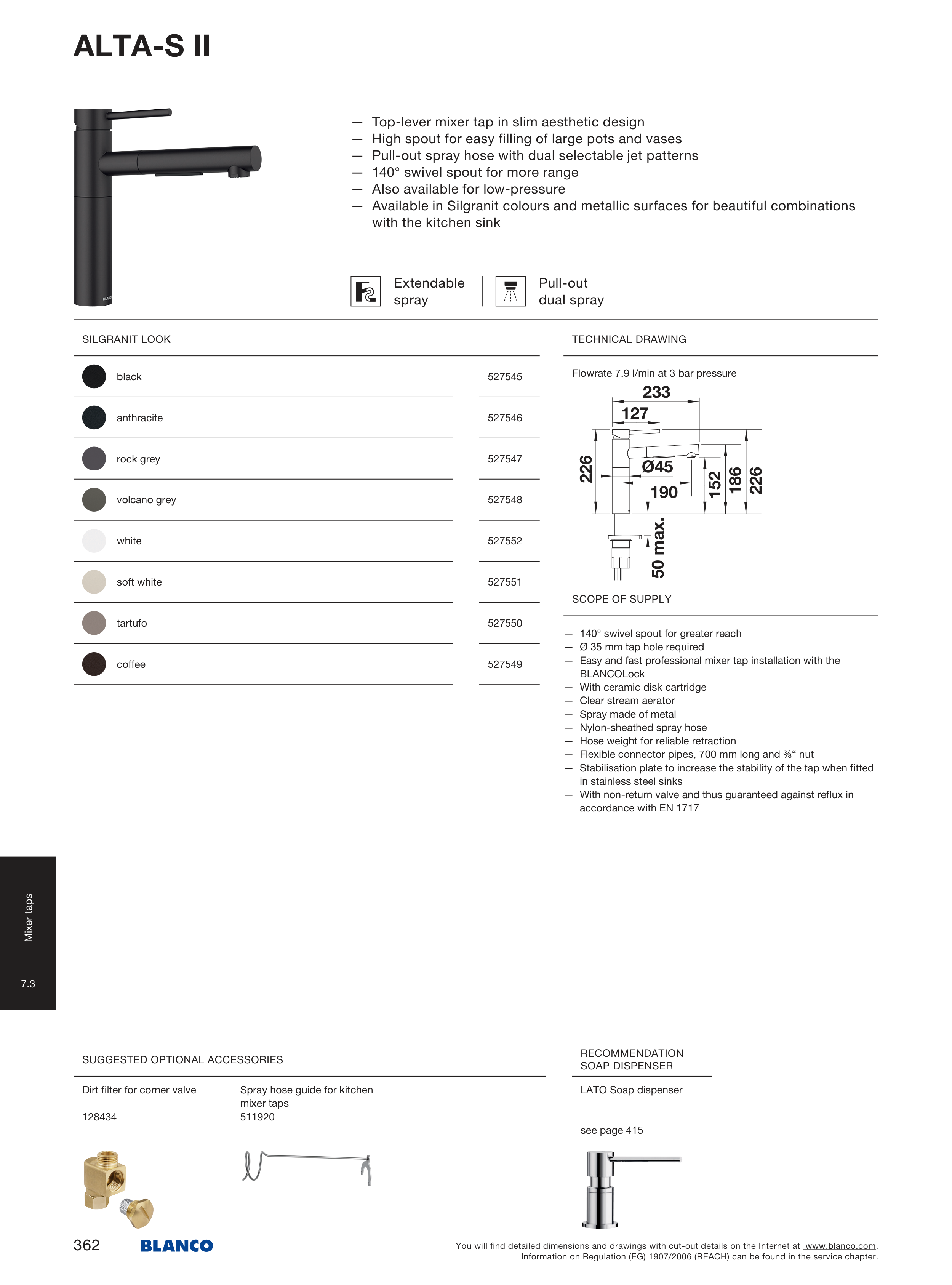

ALTA-S II
— Top-lever mixer tap in slim aesthetic design
— High spout for easy filling of large pots and vases
— Pull-out spray hose with dual selectable jet patterns
— 140° swivel spout for more range
— Also available for low-pressure
— Available in Silgranit colours and metallic surfaces for beautiful combinations
with the kitchen sink
Extendable
spray
Pull-out
dual spray
— 140° swivel spout for greater reach
— Ø 35 mm tap hole required
— Easy and fast professional mixer tap installation with the
BLANCOLock
— With ceramic disk cartridge
— Clear stream aerator
— Spray made of metal
— Nylon-sheathed spray hose
— Hose weight for reliable retraction
— Flexible connector pipes, 700 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
SILGRANIT LOOK
black
527 545
anthracite
527 546
rock grey
527 547
volcano grey
527 548
white
527 552
soft white
527 551
tartufo
527 550
coffee
527 549
233
127
186
226
152
226
Ø45
190
50 max.
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 7.9 l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Spray hose guide for kitchen
mixer taps
511 920
Mixer taps
7.3
362
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
