SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

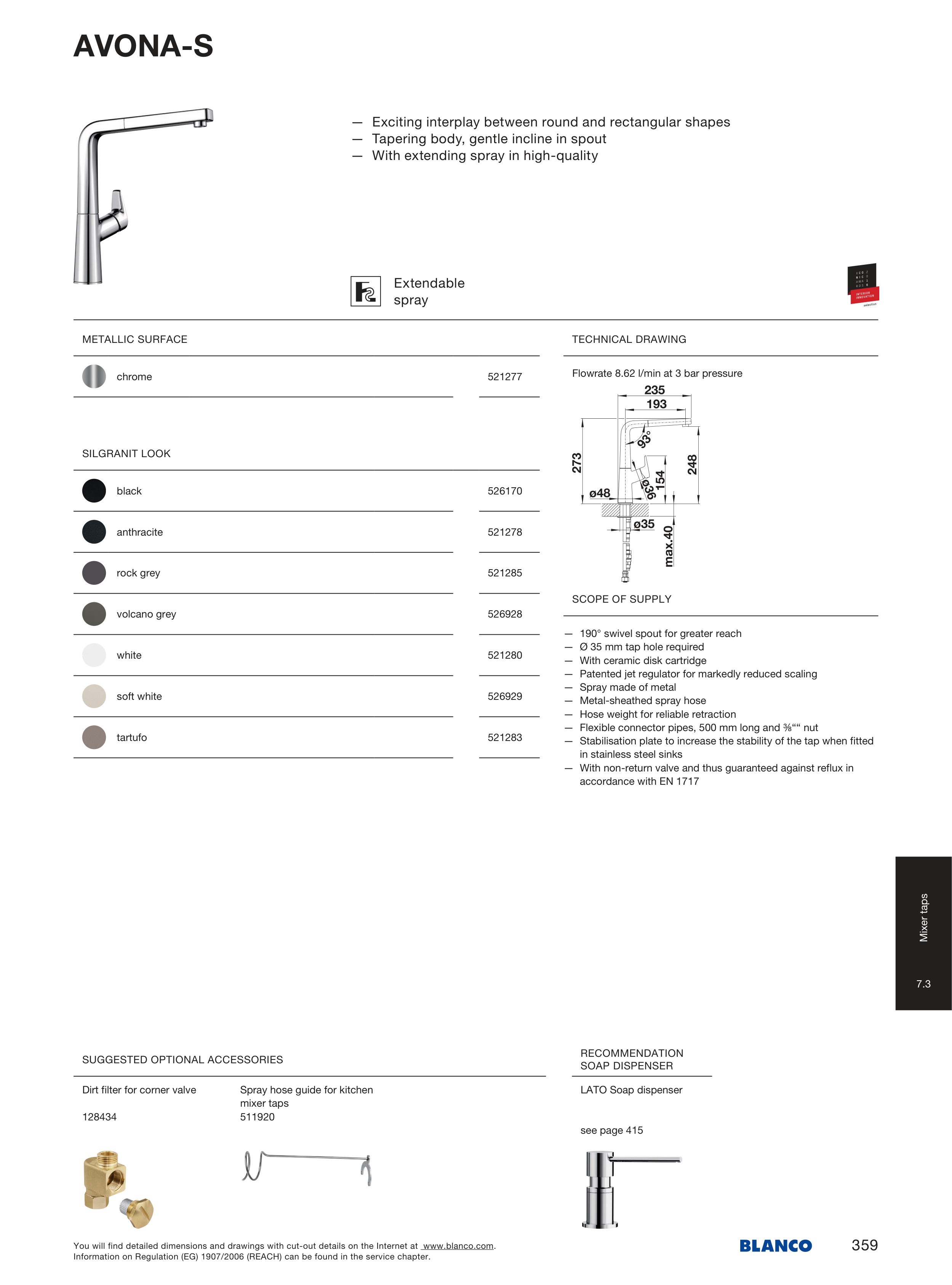

AVONA-S
— Exciting interplay between round and rectangular shapes
— Tapering body, gentle incline in spout
— With extending spray in high-quality
Extendable
spray
— 190° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Spray made of metal
— Metal-sheathed spray hose
— Hose weight for reliable retraction
— Flexible connector pipes, 500 mm long and ⅜““ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
METALLIC SURFACE
chrome
521 277
SILGRANIT LOOK
black
526 170
anthracite
521 278
rock grey
521 285
volcano grey
526 928
white
521 280
soft white
526 929
tartufo
521 283
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 8.62 l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Spray hose guide for kitchen
mixer taps
511 920
Mixer taps
7.3
359
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
