SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

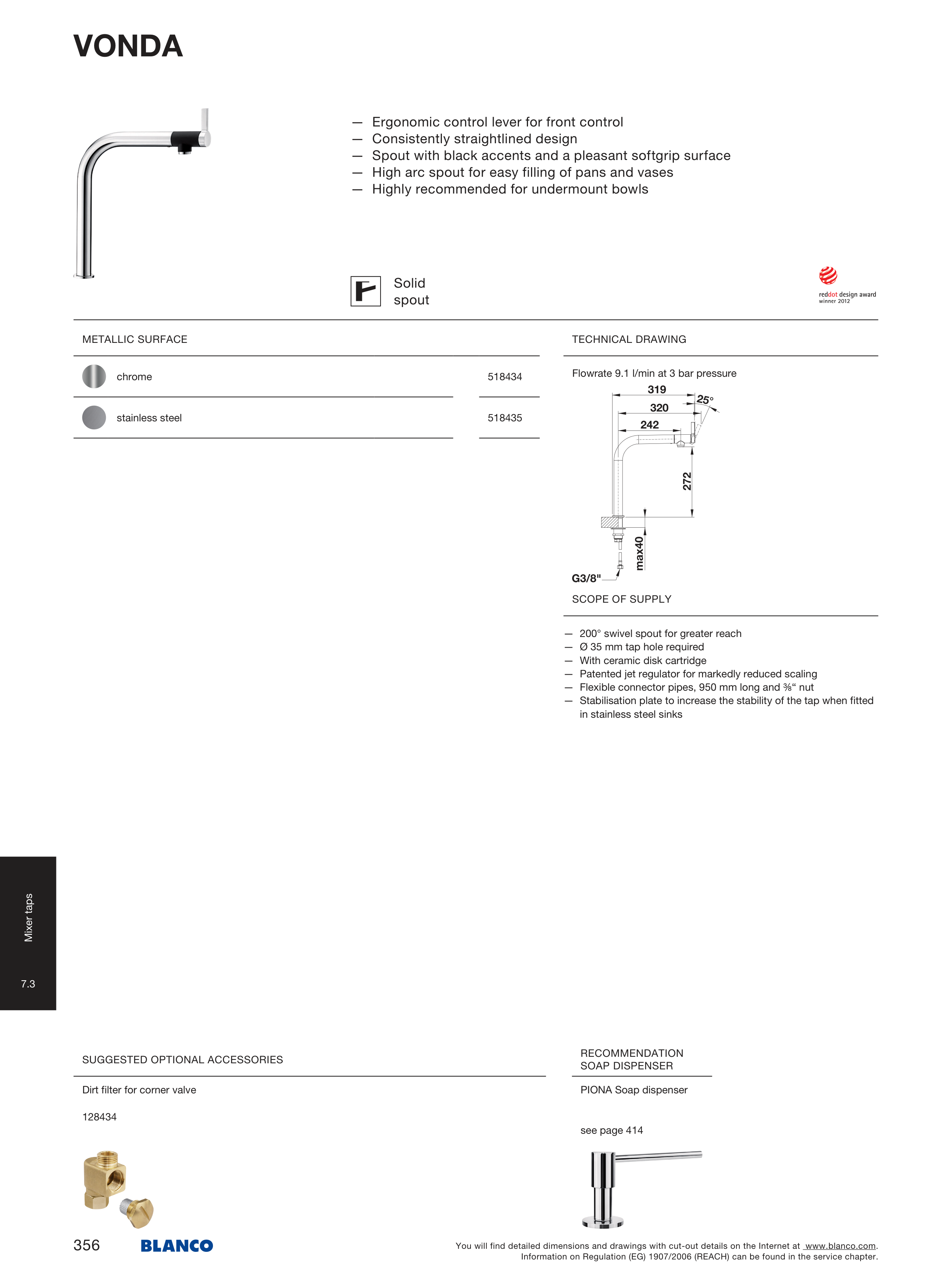

VONDA
— Ergonomic control lever for front control
— Consistently straightlined design
— Spout with black accents and a pleasant softgrip surface
— High arc spout for easy filling of pans and vases
— Highly recommended for undermount bowls
Solid
spout
— 200° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Flexible connector pipes, 950 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
METALLIC SURFACE
chrome
518 434
stainless steel
518 435
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 9.1 l/min at 3 bar pressure
PIONA Soap dispenser
see page 414
Dirt filter for corner valve
128 434
Mixer taps
7.3
356
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
