RECOMMENDATION
SOAP DISPENSER

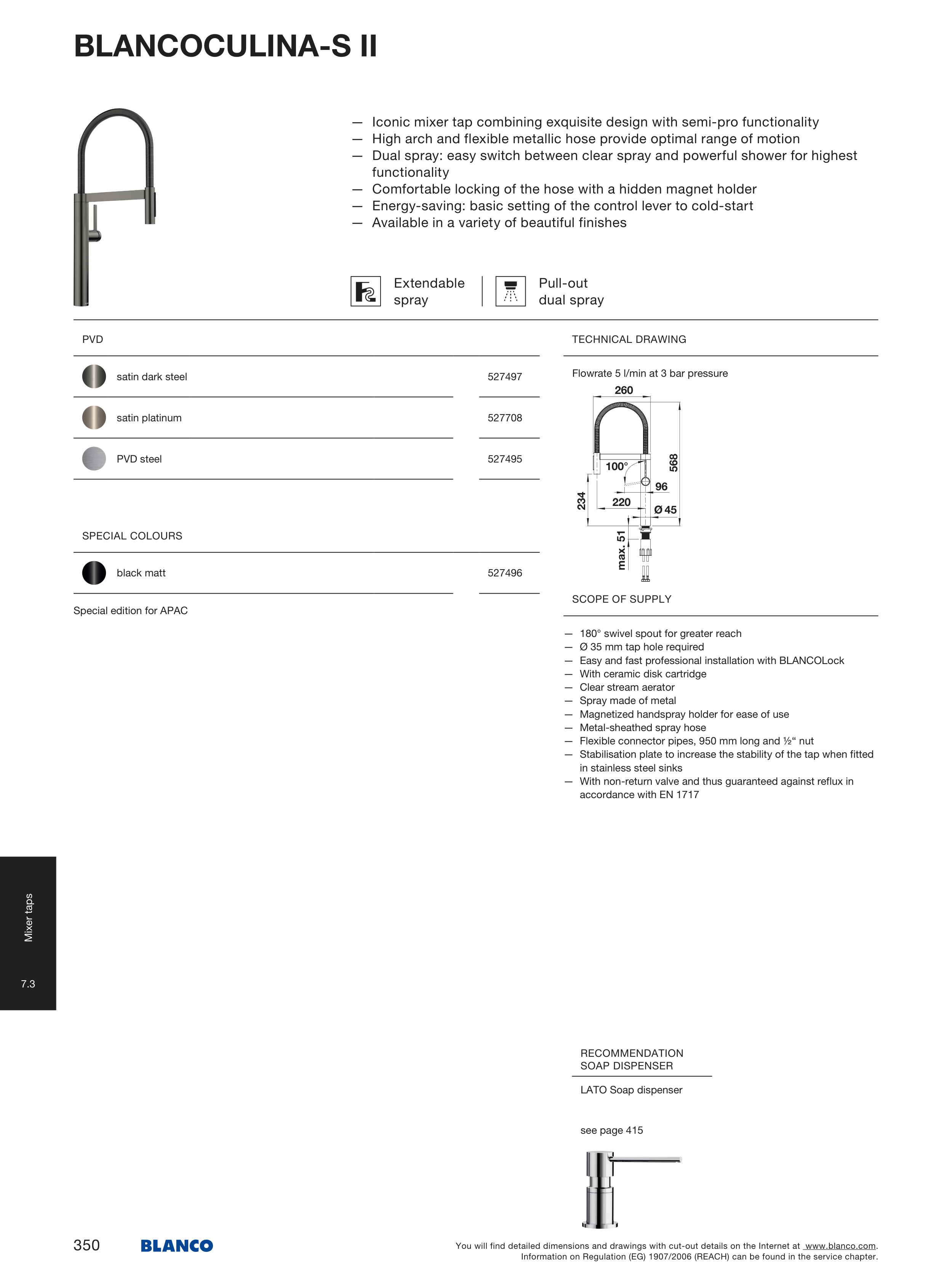

BLANCOCULINA-S II
— Iconic mixer tap combining exquisite design with semi-pro functionality
— High arch and flexible metallic hose provide optimal range of motion
— Dual spray: easy switch between clear spray and powerful shower for highest
functionality
— Comfortable locking of the hose with a hidden magnet holder
— Energy-saving: basic setting of the control lever to cold-start
— Available in a variety of beautiful finishes
Extendable
spray
Pull-out
dual spray
— 180° swivel spout for greater reach
— Ø 35 mm tap hole required
— Easy and fast professional installation with BLANCOLock
— With ceramic disk cartridge
— Clear stream aerator
— Spray made of metal
— Magnetized handspray holder for ease of use
— Metal-sheathed spray hose
— Flexible connector pipes, 950 mm long and ½“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
PVD
satin dark steel
527 497
satin platinum
527 708
PVD steel
527 495
SPECIAL COLOURS
black matt
527 496
96
100°
max. 51
Ø 45
234
220
260
568
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 5 l/min at 3 bar pressure
Special edition for APAC
LATO Soap dispenser
see page 415
Mixer taps
7.3
350
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
