RECOMMENDATION
SOAP DISPENSER

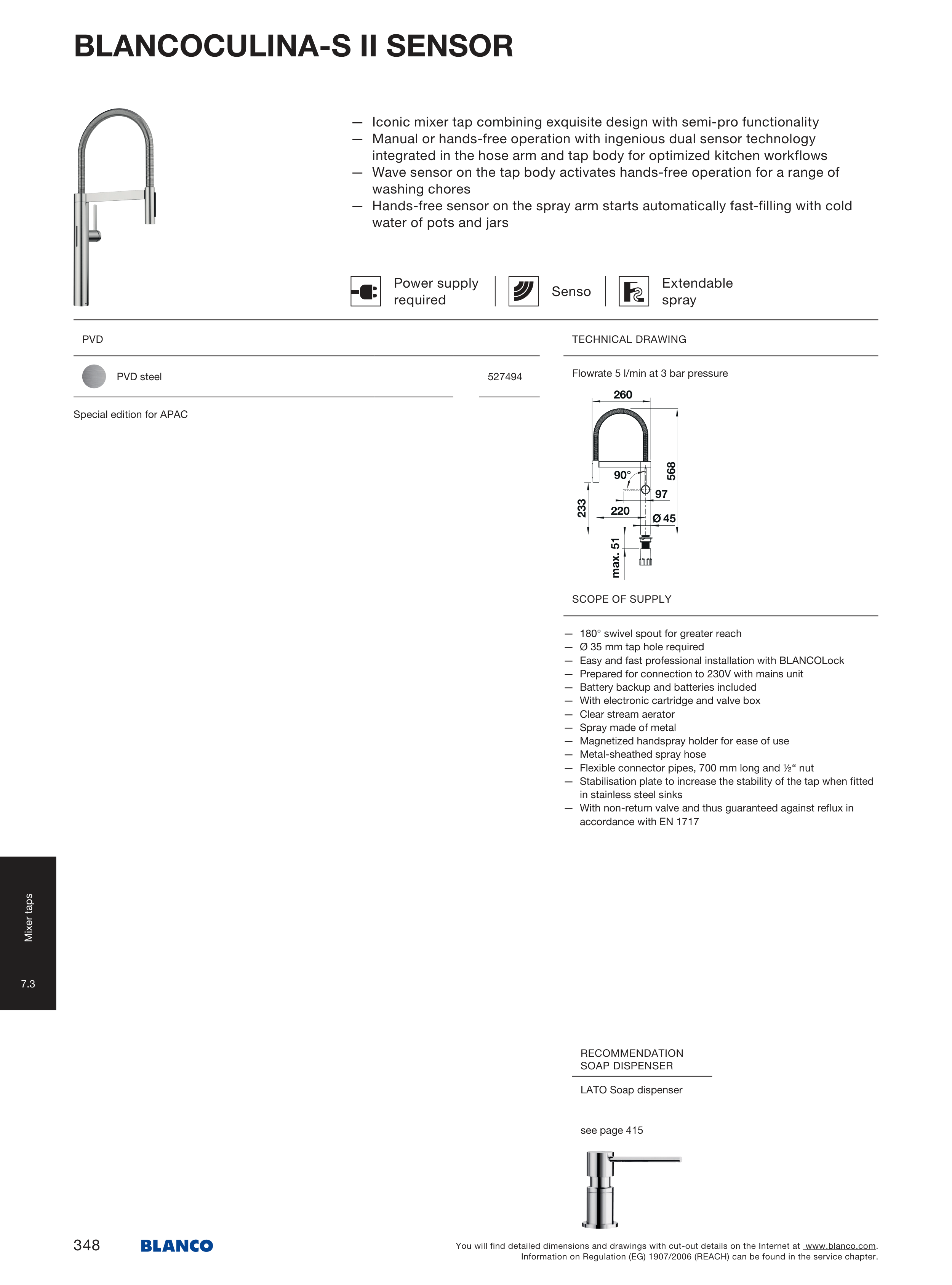

BLANCOCULINA-S II SENSOR
— Iconic mixer tap combining exquisite design with semi-pro functionality
— Manual or hands-free operation with ingenious dual sensor technology
integrated in the hose arm and tap body for optimized kitchen workflows
— Wave sensor on the tap body activates hands-free operation for a range of
washing chores
— Hands-free sensor on the spray arm starts automatically fast-filling with cold
water of pots and jars
Power supply
required
Senso
Extendable
spray
— 180° swivel spout for greater reach
— Ø 35 mm tap hole required
— Easy and fast professional installation with BLANCOLock
— Prepared for connection to 230V with mains unit
— Battery backup and batteries included
— With electronic cartridge and valve box
— Clear stream aerator
— Spray made of metal
— Magnetized handspray holder for ease of use
— Metal-sheathed spray hose
— Flexible connector pipes, 700 mm long and ½“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
PVD
PVD steel
527 494
260
568
Ø 45
97
233
220
90°
max. 51
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 5 l/min at 3 bar pressure
Special edition for APAC
LATO Soap dispenser
see page 415
Mixer taps
7.3
348
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
